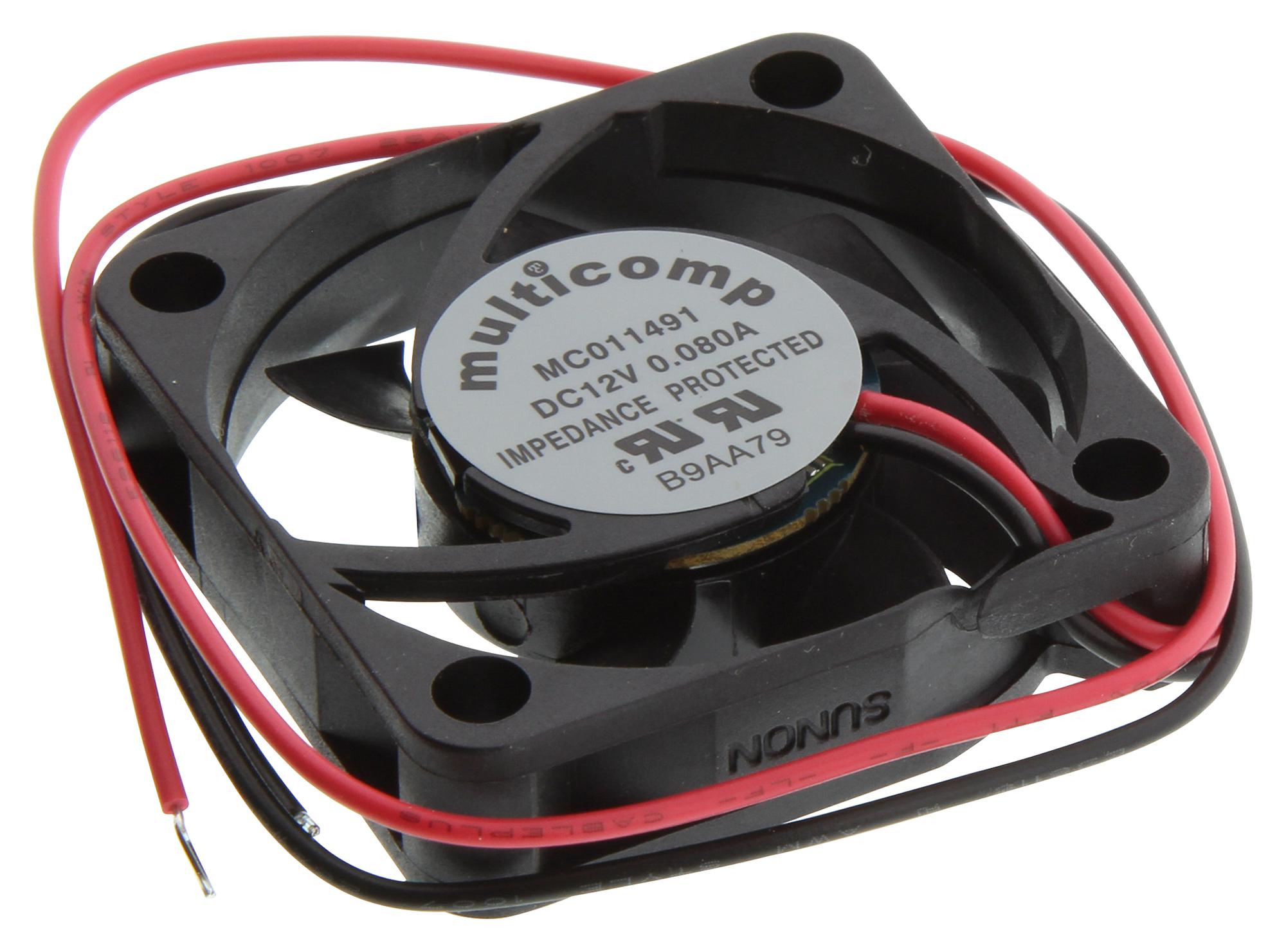

MULTICOMP MC011491 Axial Cooling Fan
This axial DC fan features a 40x40x10mm size with sleeve bearing system, optimized for reliable airflow in electronic and cooling applications. It operates at 12V DC with a rated current of 68mA, providing a maximum power consumption of 0.95W. Designed with UL94V-0 thermoplastic frame and blades, it offers high durability, with a lifespan of approximately 35,000 hours at 40°C and 65% humidity. The fan supports diverse operating temperatures from -10°C to +70°C and features automatic restart and polarity protection for safety and longevity.
MULTICOMP MC011491 Axial Cooling Fan Specifications:
- Dimensions: 40mm x 40mm x 10mm
- Rated Voltage: 12V DC
- Rated Current: 68mA / Max. 79mA
- Rated Power Consumption: 0.82W / Max. 0.95W
- Operating Voltage Range: 6V DC to 13.8V DC
- Rated Speed: 6100 RPM +15%
- Air Flow: 7.1 CFM
- Static Pressure: 0.12 Inch-H20
- Acoustic Noise: 23 dB(A)
- Material of Frame: UL94V-0 thermoplastic PBT
- Material of Fan Blade: Thermoplastic PBT
- Protection: Automatic restart, Polarity protection
- Insulation Resistance: 10MQ @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Life Expectancy: 35,000 hours at 40°C, 65% humidity
- Temperature Range Operating: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
Buy the Buy multicomp Axial DC Fan Part Number MC011491 Online
Enhance your electronic or ventilation systems with this reliable 12V axial cooling fan. Featuring a durable sleeve bearing system, UL certification, and a lifespan of approximately 35,000 hours, it offers efficient airflow at 6100 RPM. Its compact 40x40x10mm size ensures seamless integration into various enclosures. Designed for safety and longevity, this fan includes automatic restart and polarity protection, making it an ideal choice for electronics cooling, industrial equipment, and HVAC applications. Purchase online today for fast delivery and dependable operation.
Order your multicomp Series MC011491 12V Axial Fan today and ensure reliable cooling performance for your electronic projects.
