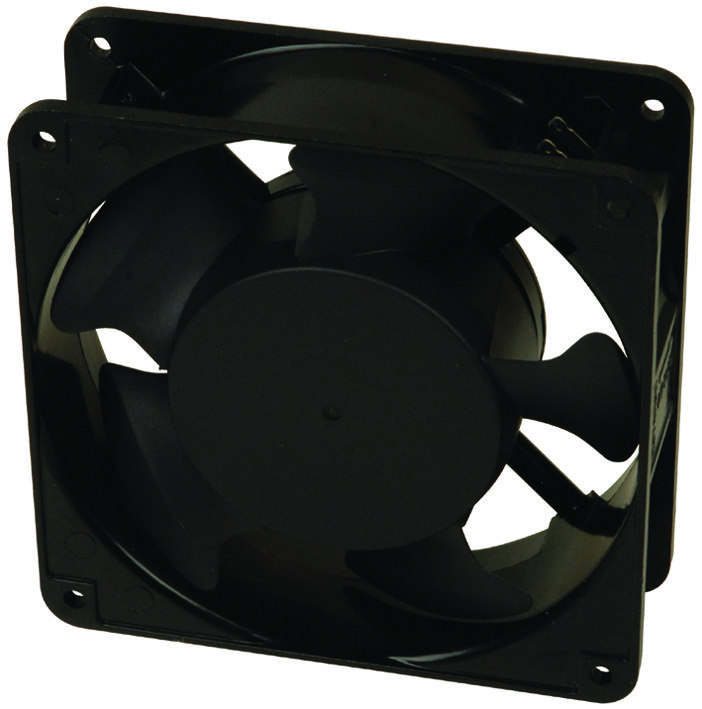

MULTICOMP MC23725 Axial Cooling Fan
The MC23725 is a square-shaped, tube-axial AC fan featuring a precision ball bearing system and lead wire terminals. It has a black die-cast aluminum housing and a shaded-pole motor for reliable operation. The impeller is made from UL94V-0 flammability-rated thermoplastic PBT. Designed to rotate counter-clockwise, this fan is impedance protected, with an insulation resistance of 500 megaohms at 500V DC, and a dielectric strength of 1800 VAC/sec. It is suitable for various cooling applications and is rated highly by users. The product comes with a 12-month limited warranty.
MULTICOMP MC23725 Axial Cooling Fan Specifications:
- Rated Voltage: 115 VAC 50/60Hz
- Operating Voltage Range: +85-125 VAC
- Starting Voltage: +85 VAC
- Rated Speed: 2500/2700 RPM ±10%
- Air Delivery: 0/88 CFM
- Static Pressure: 0.015/0.022 Inch-Hg
- Rated Current: 0.477/0.516 AMP
- Rated Power: 16/15 Watts
- Noise Level: 35/40 dBA
- Direction of Rotation: Counter-clockwise from front
- Operating Temperature: -10 to +70°C
- Storage Temperature: -40 to +70°C
- Bearing System: Precision ball bearings
- Vibration: 5G acceleration, 50-60Hz, in X, Y, Z directions, 30-minute cycles
- Safety: UL/CUR approvals
- Weight: 850g
- Construction: Die-cast aluminum frame with thermoplastic impeller
- Insulation Resistance: 500 Megohms at 500VDC
- Dielectric Strength: 1800 VAC for one second
Buy the SPC Series Fan: AC Axial Cooling Fan MC23725
Purchase the SPC Series MC23725 axial fan online today for efficient airflow and dependable cooling performance. Its die-cast aluminum housing and thermoplastic impeller ensure durability. With a precision ball bearing system, UL/CUR safety approvals, and a high insulation resistance of 500 megaohms, this fan is ideal for various electronic cooling applications. Rated at 115V, 2500/2700 RPM, and producing noise levels of 35-40 dBA, it guarantees quiet, reliable operation. Convenient online ordering gives you immediate access to this essential cooling component.
Order your SPC Series MC23725 axial cooling fan today and enhance your cooling systems with reliable performance and durable construction.
Frequently Asked Questions
Where can I buy MULTICOMP MC23725?
You can click on the BUY or RFQ button to purchase MC23725 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC23725?
You can download the MC23725 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC23725?
MULTICOMP
