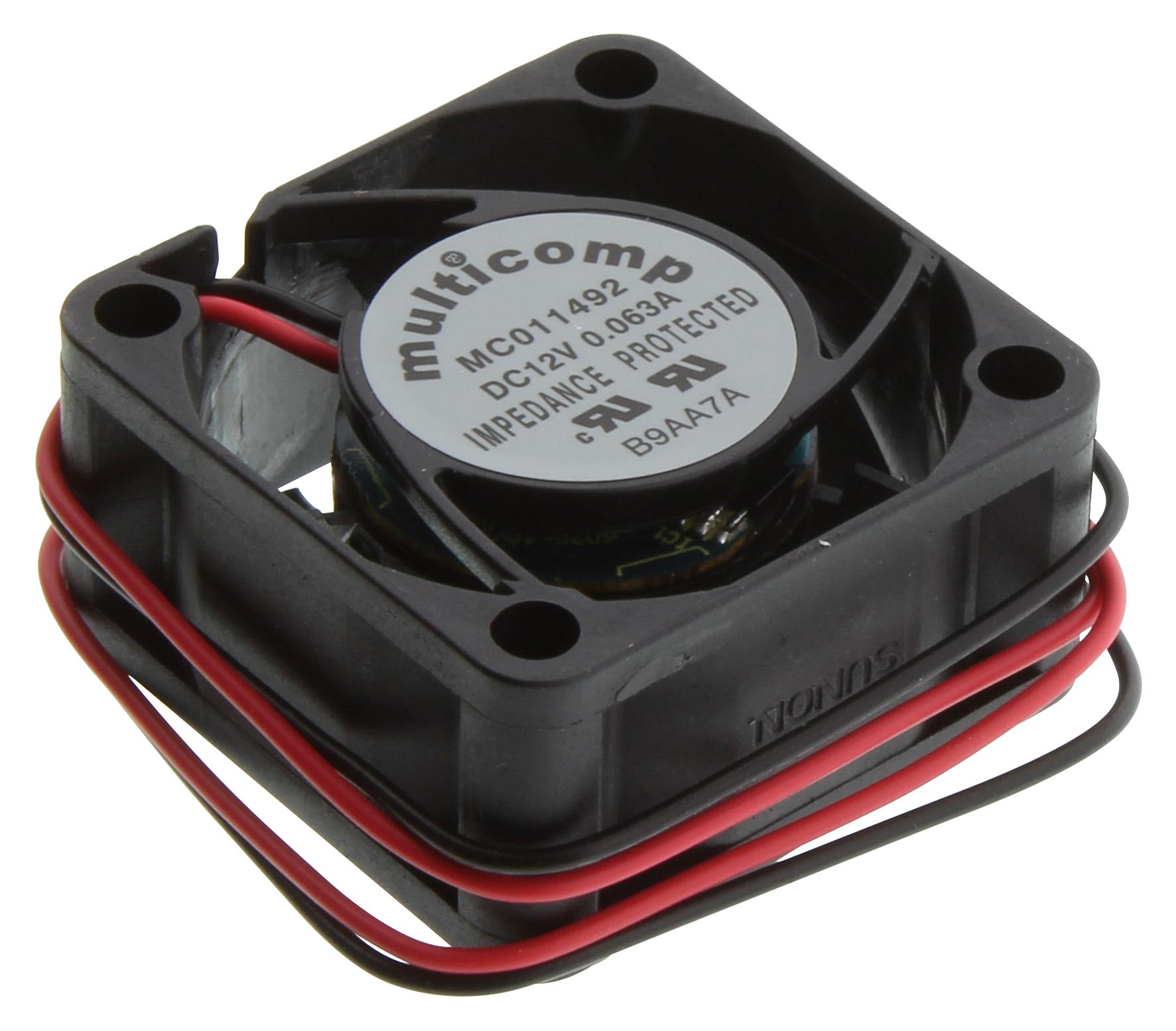

MULTICOMP MC011492 Cooling Fan
This axial DC fan features a sleeve bearing and measures 40mm x 40mm x 20mm, making it suitable for compact cooling applications. It operates on 12V DC with a rated speed of 6000 RPM, providing an airflow of 7.7 CFM and static pressure of 20.17 Inch-H20. Constructed with UL94V-0 thermoplastic materials, it ensures durability and safety. The fan offers a life expectancy of approximately 35,000 hours at 40°C, with protection features like automatic restart and polarity protection, ideal for reliable electronic cooling in industrial settings.
MULTICOMP MC011492 Cooling Fan Specifications:
- Dimensions: 40mm x 40mm x 20mm
- Rated Voltage: 12V DC
- Rated Speed: 6000 RPM ±15%
- Air Flow: 7.7 CFM
- Static Pressure: 20.17 Inch-H20
- Rated Power Consumption: 0.76W / Max. 0.88W
- Operating Temperature Range: -10°C to +70°C
- Bearing System: Lubricated sleeve bearing
- Materials: Thermoplastic PBT of UL94V-0 for frame and blades
- Mounting Holes: Diameter 4.3mm in 4 holes
- Life Expectancy: 35,000 hours @ 40°C, 65% humidity
- Safety Features: Automatic restart, polarity protection
- Insulation Resistance: 10MQ @ 500V DC
- Dielectric Strength: Between housing and lead wire, 500V AC for 1 min
- Protection Class: UL Class A
Buy the Multicomp MC011492 – Reliable Cooling Fan for Industrial Applications
Enhance your electronic or industrial cooling solutions with this high-performance 12V axial fan. Compact and durable, it features a sleeve bearing for smooth operation, a rated speed of 6000 RPM, and an airflow of 7.7 CFM. Suitable for various equipment, it provides reliable long-term service with a lifespan of 35,000 hours at 40°C. Easy to install with four mounting holes, this fan ensures efficient heat dissipation, safety, and durability for demanding applications. Buy online today for dependable cooling performance.
Order your Multicomp Series MC011492 axial fan today and ensure reliable cooling for electronic and industrial projects with high-quality performance.
