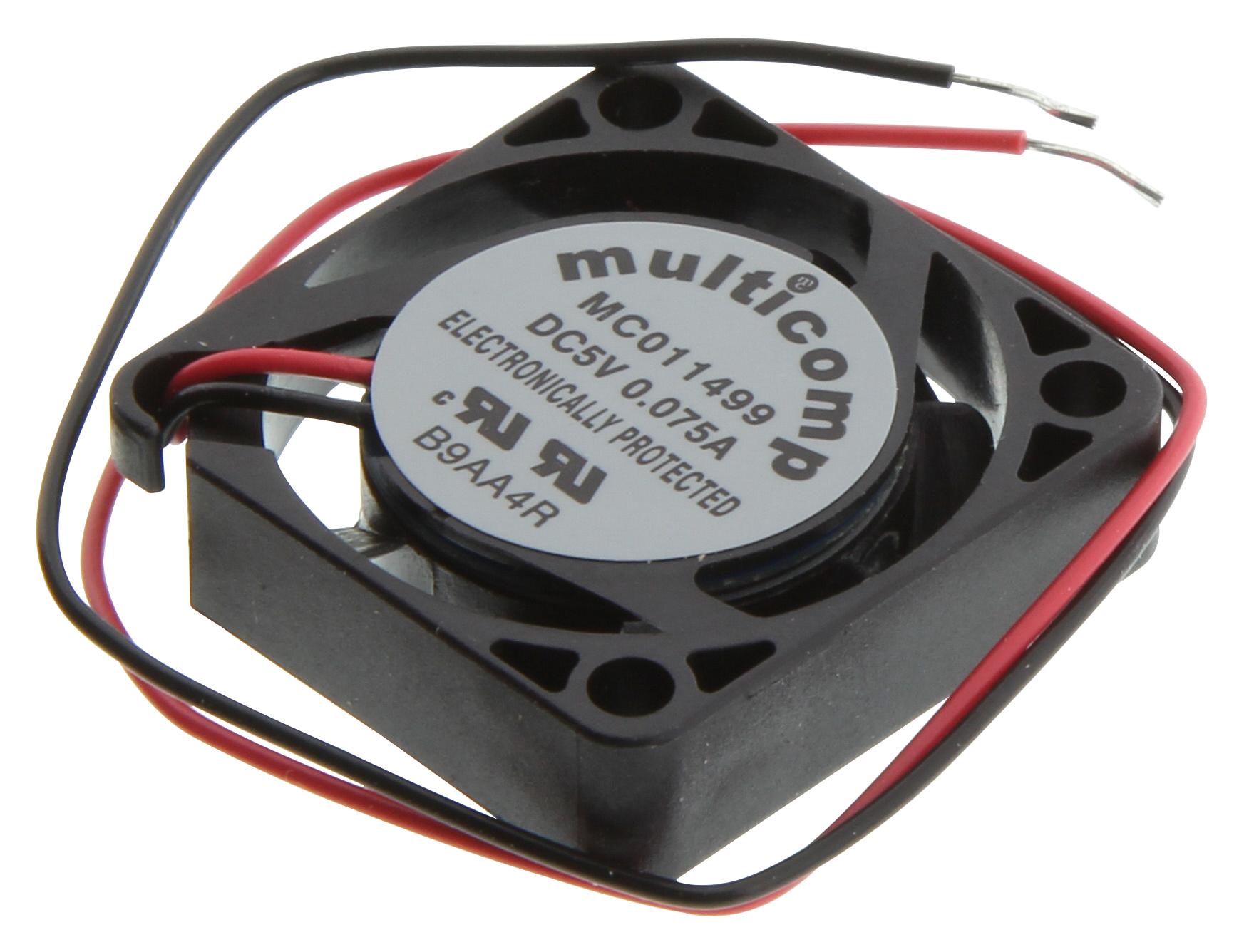

MULTICOMP MC011499 axial fan
This axial DC fan features a Vapo bearing system and measures 25mm x 25mm x 6mm, suitable for compact electronic cooling solutions. Its brushless DC motor operates with a rated voltage greater than 5V DC and has a maximum power consumption of 0.44W at up to 87mA current. It delivers a rated speed of 10,000 RPM, producing an airflow of 12.2 CFM and static pressure of 0.16 Inch-H20, with low noise levels around 18 dB(A). Designed with thermoplastic PBT frame and blades, it withstands operating temperatures from -10°C to +70°C. The fan includes features such as automatic restart, polarity protection, and UL certification, ensuring safety and durability for various cooling applications.
MULTICOMP MC011499 axial fan Specifications:
- Dimensions: 25mm x 25mm x 6mm
- Motor Design: Single phase, 4-poles Brushless DC motor
- Bearing System: Vapo bearing system
- Materials of Frame: Thermoplastic PBT of UL94V-0
- Materials of Fan Blade: Thermoplastic PBT of UL94V-0
- Rated Voltage: greater than 5V DC
- Rated Current: 75mA / Max. 87mA
- Rated Power Consumption: 0.38W / Max. 0.44W
- Operating Voltage Range: 2.5V DC to 6V DC
- Starting Voltage: 2.5V DC
- Rated Speed: 10,000 RPM +15%
- Air Flow: 12.2 CFM
- Static Pressure: 0.16 Inch-H20
- Acoustic Noise: 18 dB(A)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Insulation Class: UL Class A
- Life Expectancy: 60,000 hours at 40°C, 65% humidity
- Protection: Automatic restart, Polarity protection
- Certifications: UL, TUV, CE
Buy the Multicomp Series Axial Cooling Fan: MC011499
Order the Multicomp axial fan MC011499 online today to ensure reliable cooling for your electronic devices. Featuring Vapo bearing technology, low noise operation at 18 dB, and efficiency at 10,000 RPM, this compact 25mm x 25mm x 6mm fan is ideal for space-constrained applications. Its durable thermoplastic construction withstands temperatures from -10°C to +70°C, while automatic restart and polarity protection enhance safety and longevity. Perfect for electronics cooling, server maintenance, and industrial applications—purchase now for quality and performance you can trust.
Get Multicomp MC011499 today—built for precise cooling performance and long-lasting reliability.
