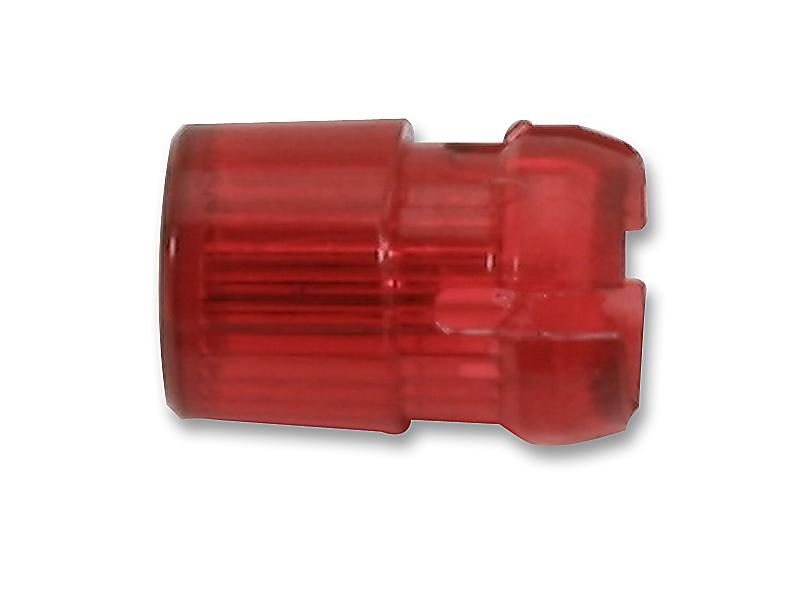

MULTICOMP SML190RTP LED Lens
CLIPLITE lenses are designed to provide up to 180 degrees of viewing angle using standard 3mm and 5mm LEDs, enhancing brightness by up to 125%. Constructed from polycarbonate, these lenses feature striated lines and fresnel rings to optimize light dispersion and visibility, suitable for various lighting applications. They are easy to install without tools, snapping into panel openings within 6 seconds. The lenses also offer electrostatic discharge protection up to 16kV, safeguarding semiconductor components. Available in standard and low profile designs, they are ideal for both indoor and sunlight exposure.
MULTICOMP SML190RTP LED Lens Specifications:
- Material : Lense - polycarbonate
- Spacer - Polypropylene. (U.L. listed materials)
- Design : Standard and low profile lenses with fresnel rings and striated lines
- Mounting : Mounts through front of panel in .171" + .002" holes for 3mm, .250" + .002" holes for 5mm LEDs
- Panel Thickness : 1/32" to 1/16" for 3mm, 1/16" to 1/8" for 5mm; use spacer for panels less than 3/16"
- ESD Protection : Up to 16kV
- Installation : Snap-in, no tools required, completed in 6 seconds
- Viewing Angle : Up to 180 degrees
- Brightness Increase : Up to 125%
- Design Features : Fresnel rings and striated lines for brightness and visibility
Buy the Lighting Components Series CLIPLITE LED Lens: SML190RTP
Order CLIPLITE LED lenses online today and enjoy quick, tool-free installation that takes only six seconds. These lenses feature enhanced brightness up to 125% and support up to 180 degrees viewing angle, making them perfect for indicator LEDs in various applications. They provide excellent protection against electrostatic discharge up to 16kV, safeguarding your electronic components. Made from durable polycarbonate, they come in standard and low profile options, ensuring versatile use in different panel thicknesses. Upgrade your lighting with reliable, easy-to-install lenses now.
Buy CLIPLITE SML190RTP lenses now and experience enhanced brightness with electrostatic discharge protection and easy snap-in installation.
