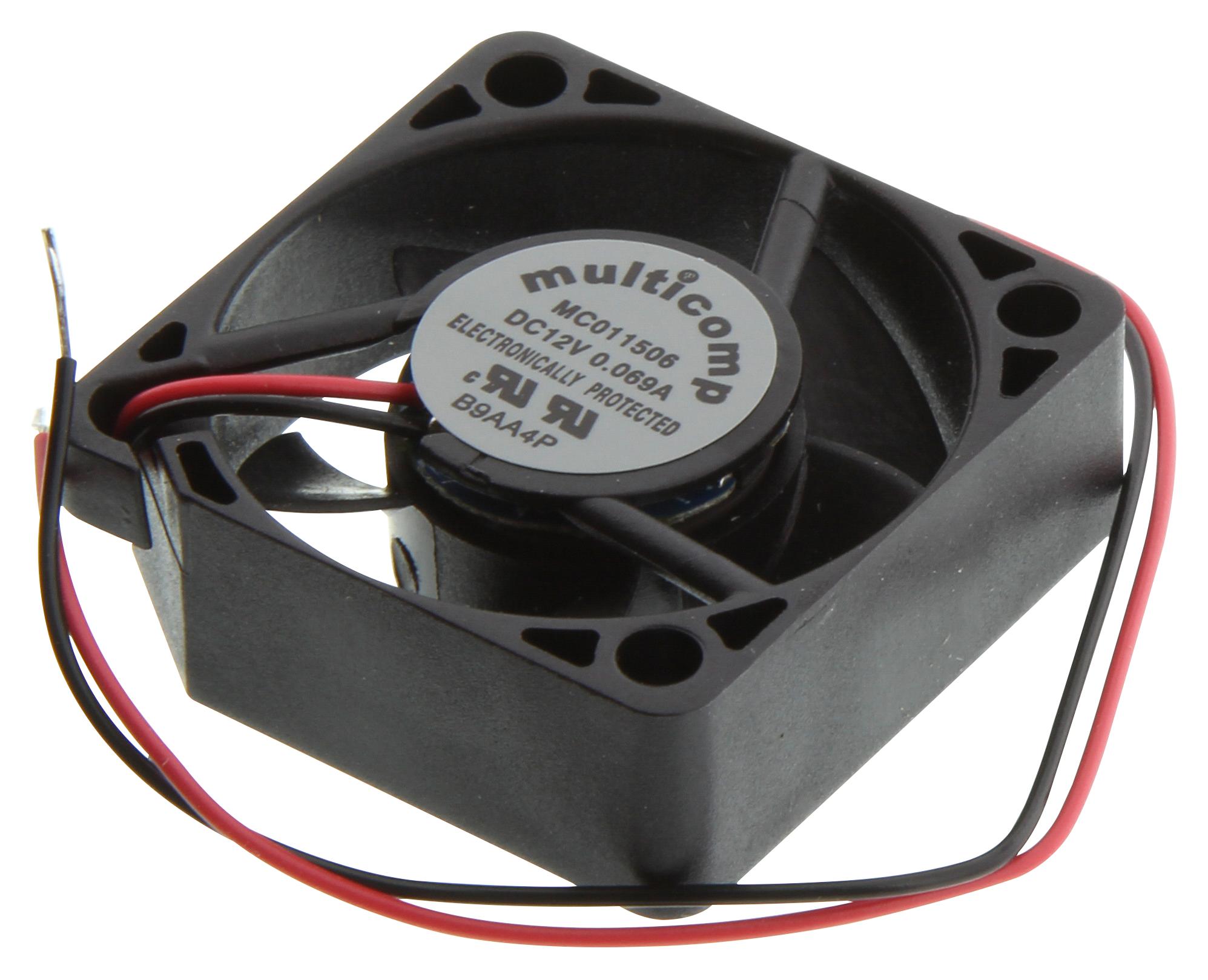

MULTICOMP MC011506 axial cooling fan
This axial DC fan with Vapo bearing features a compact 30mm x 30mm x 10mm frame, designed for efficient cooling in small electronic devices. Operating on 12V DC, it provides a rated speed of 11,500 RPM, delivering up to 5.5 CFM airflow and 0.25 Inch-H2O static pressure with quiet operation levels around 23 dB(A). Constructed with UL94V-0 thermoplastic, it ensures safety and durability, with a lifespan of approximately 60,000 hours under optimal conditions. Suitable for applications requiring reliable, high-speed cooling solutions with automatic restart and polarity protection.
MULTICOMP MC011506 axial cooling fan Specifications:
- Dimensions: 30mm x 30mm x 10mm
- Material of Frame: Thermoplastic PBT of UL94V-0
- Material of Fan Blade: Thermoplastic PBT of UL94V-0
- Bearing System: Vapo bearing system
- Rotation Direction: Counter-clockwise from front
- Mounting Holes Diameter: 3.2mm in 3 holes
- Weight: 7.8g
- Rated Voltage: 12V DC
- Rated Current: Max. 138mA
- Rated Power Consumption: Max. 0.69W
- Operating Voltage Range: 6V to 13.8V DC
- Starting Voltage: 6V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Rated Speed: 11500 RPM +15% at rated voltage
- Air Flow: 5.5 CFM
- Static Pressure: 0.25 Inch-H2O
- Acoustic Noise: 23 dB(A)
- Insulation Class: UL Class A
- Lifespan: 60,000 hours at 40°C, 65% humidity, 90% CL
- Safety Certifications: UL, CUR, TUV, CE
- Dielectric Strength: 500V AC for 1 min, 600V AC for 2 sec
- Insulation Resistance: 10MQ @ 500V DC
- Protection Features: Automatic restart, Polarity protection
Buy the Multicomp Series Axial Cooling Fan: MC011506
Purchase the Multicomp axial cooling fan MC011506 online today to ensure efficient cooling in your electronic applications. Featuring a high-speed 11500 RPM performance, static pressure of 0.25 Inch-H2O, and durable UL94V-0 thermoplastic construction, this fan guarantees long-lasting operation and optimal airflow. Ideal for compact electronic devices requiring reliable thermal management, it supports operating voltages from 6V to 13.8V DC. With automatic restart and polarity protection, this high-quality fan combines safety, efficiency, and ease of use for diverse electronic cooling needs.
Buy Multicomp MC011506 12V axial fan now and experience unmatched reliability and high-speed cooling performance.
