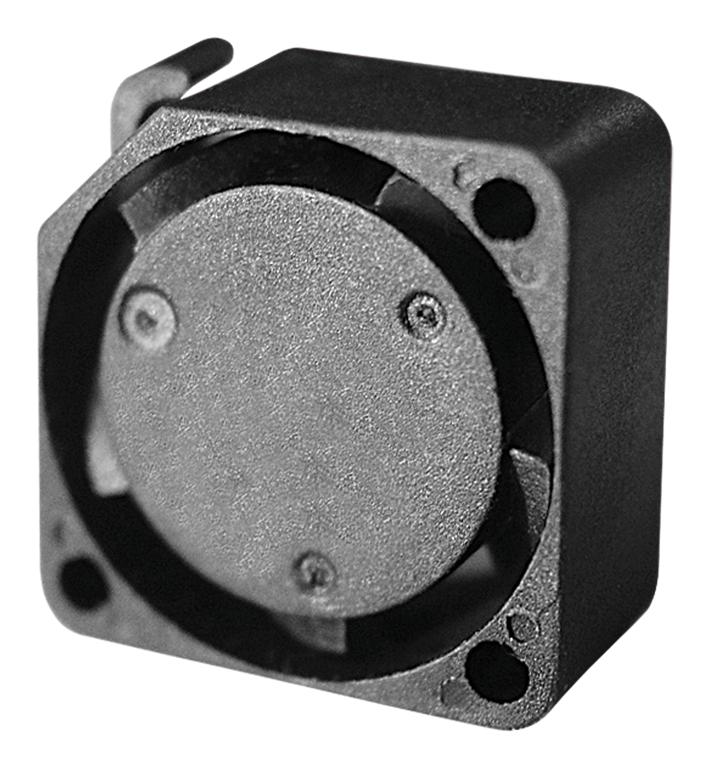

MULTICOMP MC36356 Miniature DC Axial Fan
The multicomp DC axial fan is a compact, high-performance cooling solution designed for various electronic and industrial applications. Featuring a brushless DC motor with Vapo Bearing System, it delivers reliable operation with a rated speed of 20,000 RPM +30%. Its dimensions are 17mm x 17mm x 8mm, made of thermoplastic PBT for durability. Powered by 5V DC, it consumes up to 0.92 Watts, operating efficiently within a voltage range of 2.5V to 6V. Capable of continuous operation for 60,000 hours, it offers optimal airflow, static pressure, and low noise operation, ideal for compact cooling systems.
MULTICOMP MC36356 Miniature DC Axial Fan Specifications:
- Dimensions: 17mm x 17mm x 8mm
- Material of frame: Thermoplastic PBT
- Material of fan blade: Thermoplastic PBT
- Motor design: Single phase, 8-poles Brushless DC motor
- Bearing system: Vapo Bearing System
- Rated voltage: 5V DC
- Rated current: 160mA / Max. 184mA
- Rated power consumption: 0.8 Watts / Max. 0.92 Watts
- Operating voltage range: 2.5V DC to 6V DC
- Starting voltage: 2.5V DC
- Maximum rated speed: 20,000 RPM +30%
- Air flow: 0.9 CFM
- Static pressure: 0.28 inches H2O
- Acoustic noise: 25dB(A)
- Insulation resistance: 500 MΩ at 500V DC
- Dielectric strength: AC 500V for 1 min or AC 600V for 2 sec
- Life expectancy: 60,000 hours at 40°C, 65% humidity
Buy the Multicomp MC36356 – Reliable Cooling Fan for Industrial Applications
Purchase the multicomp miniaturized DC axial fan online for reliable, long-lasting cooling performance. Designed with a brushless motor and thermoplastic frame, it offers high airflow, low noise, and a lifespan of 60,000 hours. Perfect for electronics, industrial equipment, and compact systems requiring efficient thermal management. This fan operates within 2.5V to 6V DC, consuming a maximum of 0.92 Watts, ensuring energy-efficient operation. Easy to install with mounting holes, it guarantees steady performance in demanding environments and ensures your devices stay cool and functioning optimally.
Get multicomp MC36356 today—built for precision, durability, and efficient cooling in compact electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP MC36356?
You can click on the BUY or RFQ button to purchase MC36356 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC36356?
You can download the MC36356 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC36356?
MULTICOMP
