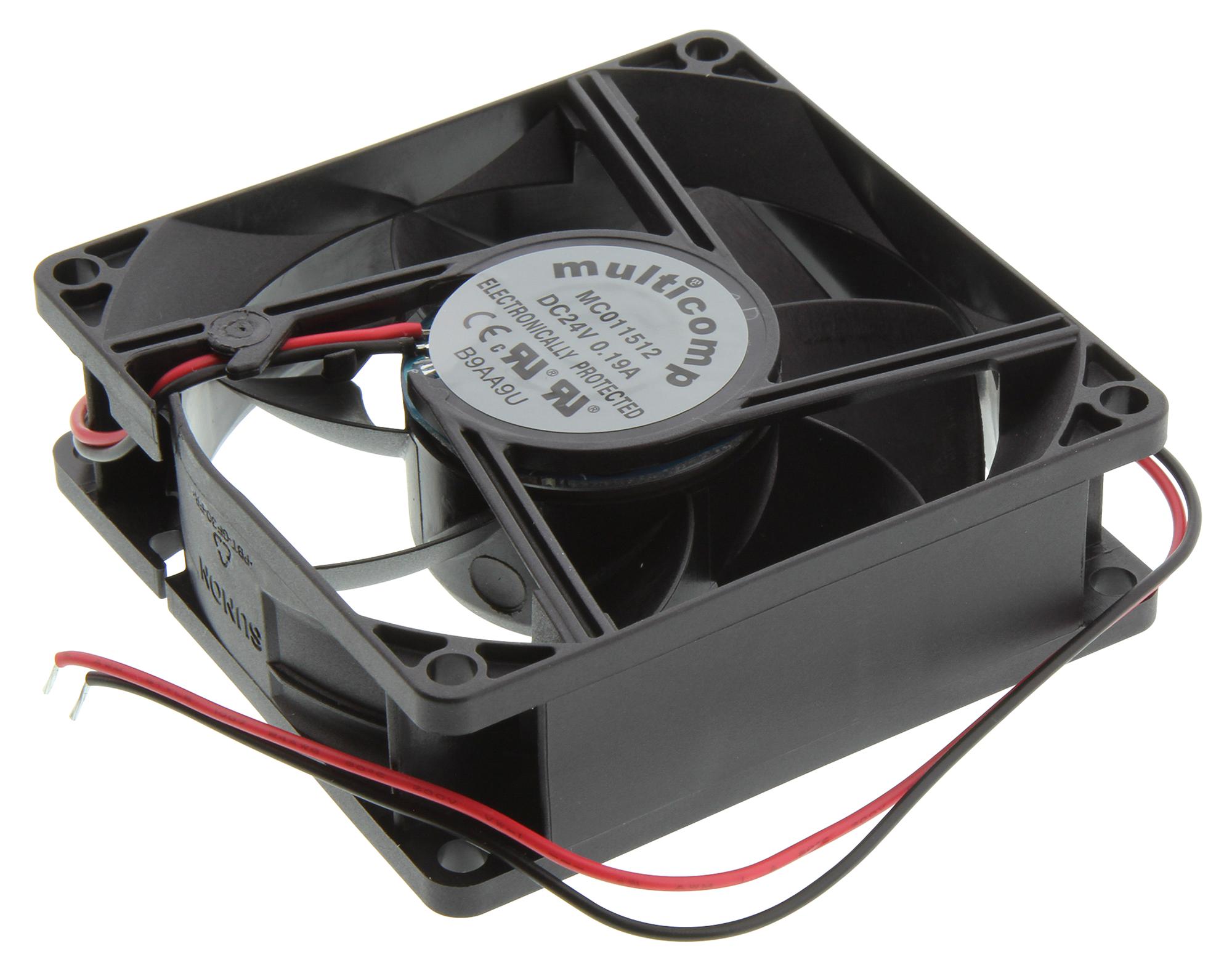

MULTICOMP MC011512 Axial Fan
The axial DC fan with Vapo bearing features an 80mm x 80mm x 25mm compact design, ideal for cooling applications in electronics and industrial equipment. Powered by a single-phase, 4-pole brushless DC motor, it operates efficiently within a voltage range of 10V to 27.6V DC. The fan delivers 60 CFM airflow at 4800 RPM with a static pressure of 20.41 Inch-H₂O and noise level of 44.7 dB(A). Made with UL94V-0 thermoplastic components, it offers durability, safety, and long life expectancy of 60,000 hours under optimal conditions.
MULTICOMP MC011512 Axial Fan Specifications:
- Dimensions: 80mm x 80mm x 25mm
- Rated Voltage: 24V DC
- Rated Current: 180mA / Max. 207mA
- Rated Power Consumption: 4.32W / Max. 4.97W
- Operating Voltage Range: 10V DC to 27.6V DC
- Rated Speed: 4800 RPM +10%
- Air Flow: 60 CFM
- Static Pressure: 20.41 Inch-H2O
- Acoustic Noise: 44.7 dB(A)
- Materials of Frame: Thermoplastic PBT UL94V-0
- Materials of Fan Blade: Thermoplastic PBT UL94V-0
- Bearing System: Vapo bearing system
- Mounting Holes: Diameter 4.3mm in 8 Holes
- Weight: 191g
- Insulation Class: UL Class A
- Life Expectancy: 60,000 hours at 40°C, 65% humidity, 90% CL
- Protection: Automatic Restart, Polarity Protection
- Safety Certifications: UL, CE, TUV
- Starting Voltage: 10V DC
Buy the Axial Fan Series Vapo 80mm: MC011512
Purchase the multicomp axial fan MC011512 online today and benefit from fast delivery, reliable performance, and professional-grade cooling solutions. Designed for electronics cooling and industrial applications, it guarantees durability and efficient airflow with its Vapo bearing system. Its robust construction and UL certification ensure safety and long-term operation. Whether you need to upgrade existing systems or build new electronic enclosures, this 80mm fan offers optimal airflow of 60 CFM at 4800 RPM while maintaining low noise levels. Order now and enhance your cooling performance seamlessly with our trusted online platform.
Buy multicomp axial Vapo bearing fan MC011512 now and experience unmatched reliability and performance with long-lasting durable components and efficient cooling.
Frequently Asked Questions
Where can I buy MULTICOMP MC011512?
You can click on the BUY or RFQ button to purchase MC011512 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011512?
You can download the MC011512 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011512?
MULTICOMP
