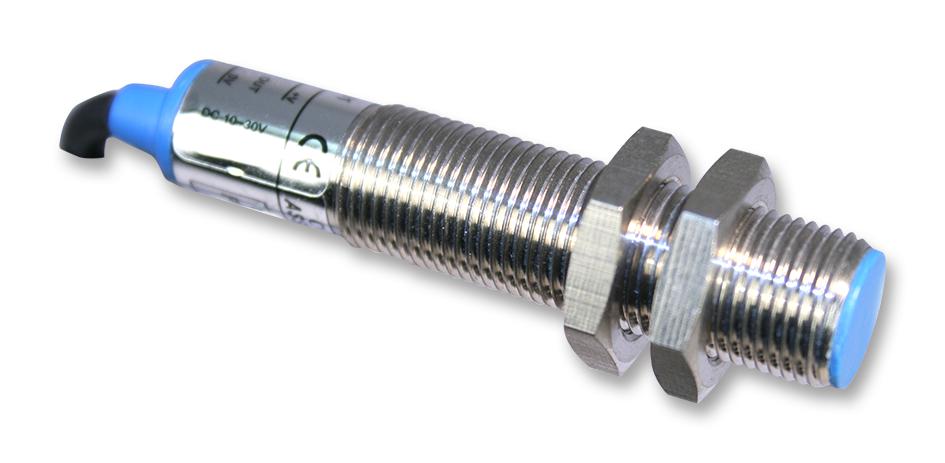

MULTICOMP MCPINT12L011 Inductive Sensor
The inductive sensor features a cylindrical design with a 12mm diameter, suitable for detecting ferrous metals with high precision. It operates on DC 10-30V, with a sensing distance of 0-1.6mm and a mounting distance of 2mm when shielded. The sensor is IP67 water-resistant, brass chrome-plated, and resistant to oil, water, acid, and alkaline environments. It includes LED indicators for easy operation, with over-current and polarity protection, making it ideal for measuring, counting, and RPM applications across various industrial sectors, including manufacturing and chemical industries.
MULTICOMP MCPINT12L011 Inductive Sensor Specifications:
- Diameter: 12mm
- Mounting Distance: 2mm (shielded)
- Sensing Distance: 0-1.6mm
- Power Supply: DC 10-30V
- Frequency: DC 600Hz (shielded)
- Current Output: 200mA
- Operating Temperature: -20°C to +70°C
- Protection Rate: IP67
- Material: Brass chrome plated
- Protection Features: Over-current and polarity protection
Buy the Multicomp Series Inductive Sensor: MCPINT12L011
Order the Multicomp inductive sensor online today for reliable ferrous metal detection in industrial applications. Its IP67 water-resistant design, LED operation indicator, and brass chrome-plated body ensure durability and accurate measurements. Suitable for measuring, counting, and RPM monitoring in manufacturing, chemical, paper, and light industry sectors. With a voltage range of 10-30V DC, operating frequency up to 600Hz, and protection features like over-current and polarity safeguards, this sensor guarantees exceptional performance and reliability in demanding environments.
Get Multicomp MCPINT12L011 today—built for precise ferrous metal detection and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP MCPINT12L011?
You can click on the BUY or RFQ button to purchase MCPINT12L011 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCPINT12L011?
You can download the MCPINT12L011 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCPINT12L011?
MULTICOMP
