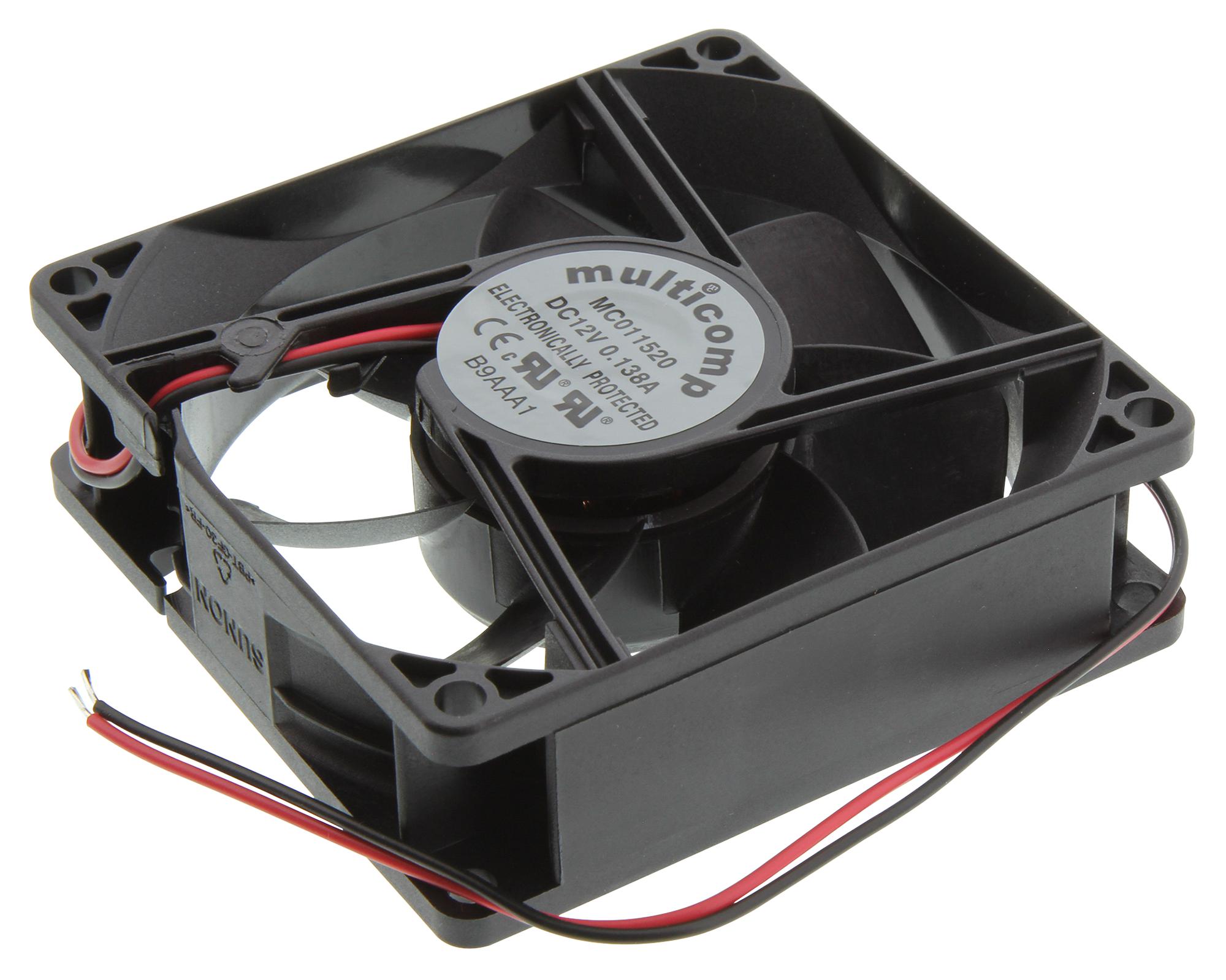

MULTICOMP MC011520 axial fan
This axial DC fan features an 80mm x 80mm x 25mm size with a sleeve bearing system, designed for reliable cooling in industrial and electronic applications. It has a single-phase, 4-poles brushless motor rated at 12V DC with a maximum power consumption of 1.66W, operating reliably between -10°C to +70°C. The fan spins at 3200 RPM, delivering an airflow of 41 CFM and static pressure of 20.18 Inch-H20, with acoustic noise of 33 dB(A). Its thermoplastic frame ensures durability and UL safety standards compliance, making it suitable for continuous-duty environments.
MULTICOMP MC011520 axial fan Specifications:
- Dimensions: 80mm x 80mm x 25mm
- Rated Voltage: 12V DC
- Rated Current: 120mA / Max. 138mA
- Rated Power Consumption: 1.44W / Max. 1.66W
- Operating Voltage Range: 4.5V DC to 13.8V DC
- Rated Speed: 3200 RPM +10%
- Air Flow: 41 CFM
- Static Pressure: 20.18 Inch-H20
- Acoustic Noise: 33 dB(A)
- Material of Frame and Blades: Thermoplastic PBT UL94V-0
- Bearing System: Lubricated sleeve bearing
- Mounting Holes: Diameter 4.3mm in 8 positions
- Protection: Automatic restart, polarity protection
- Life Expectancy: 35,000 hours at 40°C, 65% humidity
- Insulation Resistance: 10MQ @ 500V DC
- Insulation Class: UL Class A
- Safety Certifications: UL, CUR, TUV, CE
Buy the Multicomp MC011520 – Reliable Cooling Fan for Industrial Applications
Purchase the Multicomp axial cooling fan with 80mm x 80mm size, 12V DC, and 3200 RPM for efficient thermal management. Designed with a durable thermoplastic frame and reliable sleeve bearing, this fan offers excellent airflow of 41 CFM and static pressure of 20.18 Inch-H20. Its UL safety certification ensures reliable operation in demanding environments, with features like automatic restart and polarity protection. Perfect for electronics cooling, industrial systems, and automation, this fan combines performance, durability, and safety in a compact design, available for quick online purchase.
Get Multicomp MC011520 today—built for reliable cooling with a durable sleeve bearing and quiet operation in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP MC011520?
You can click on the BUY or RFQ button to purchase MC011520 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011520?
You can download the MC011520 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011520?
MULTICOMP
