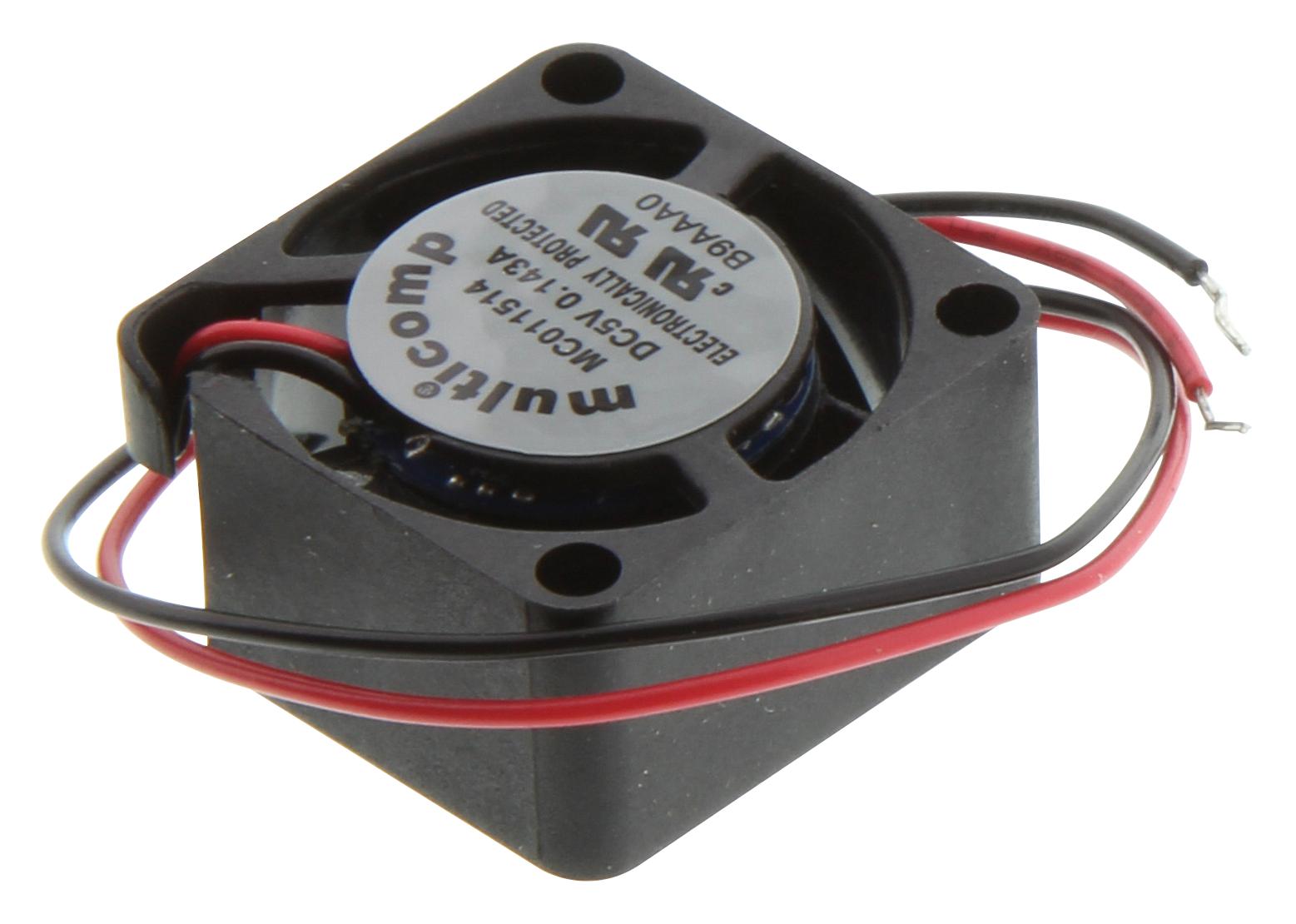

MULTICOMP MC011514 Axial Fan
This axial DC fan measures 20mm x 20mm x 10mm and features a Vapo bearing system for reliable performance. Designed with a single-phase, 4-pole brushless motor, it operates at 14000 RPM with a maximum airflow of 21.5 CFM and static pressure of 20.2 Inch-H20. Made from UL94V-0 thermoplastic materials, it supports operating temperatures from -10°C to +70°C, ensuring durability. The fan consumes up to 0.46W at 5V DC, providing quiet operation at 20 dB(A). It integrates safety features like polarity protection and automatic restart, suitable for cooling and ventilation in electronic devices.
MULTICOMP MC011514 Axial Fan Specifications:
- Dimensions: 20mm x 20mm x 10mm
- Rated Voltage: 5V DC
- Operating Voltage Range: 3.2V DC to 6V DC
- Rated Speed: 14000 RPM +15%
- Air Flow: 21.5 CFM
- Static Pressure: 20.2 Inch-H20
- Rated Power Consumption: 0.4W / Max. 0.46W
- Materials of Frame and Fan Blade: Thermoplastic PBT UL94V-0
- Bearing System: Vapo
- Noise Level: 20 dB(A)
- Life Expectancy: 60,000 hours at 40°C, 65% humidity
- Protection features: Automatic Restart, Polarity Protection
- Temperature Range: -10°C to +70°C operational, -40°C to +70°C storage
- Mounting Holes: 3 holes, diameter 2.5mm
- Insulation Class: UL Class A
- Weight: 4.65g
Buy the Multicomp Series Axial Cooling Fan: MC011514
Purchase the multicomp axial cooling fan MC011514 online today for reliable performance in electronic cooling projects. With a compact 20mm x 20mm x 10mm size, it delivers a high speed of 14000 RPM, airflow of 21.5 CFM, and static pressure of 20.2 Inch-H20. Designed with a Vapo bearing system, it ensures quiet and durable operation under various conditions. Suitable for applications requiring safety features like automatic restart and polarity protection, this fan supports eco-friendly thermoplastic design and UL certification, making it the ideal choice for system cooling and ventilation needs.
Get multicomp MC011514 today—built for precise cooling and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP MC011514?
You can click on the BUY or RFQ button to purchase MC011514 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011514?
You can download the MC011514 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011514?
MULTICOMP
