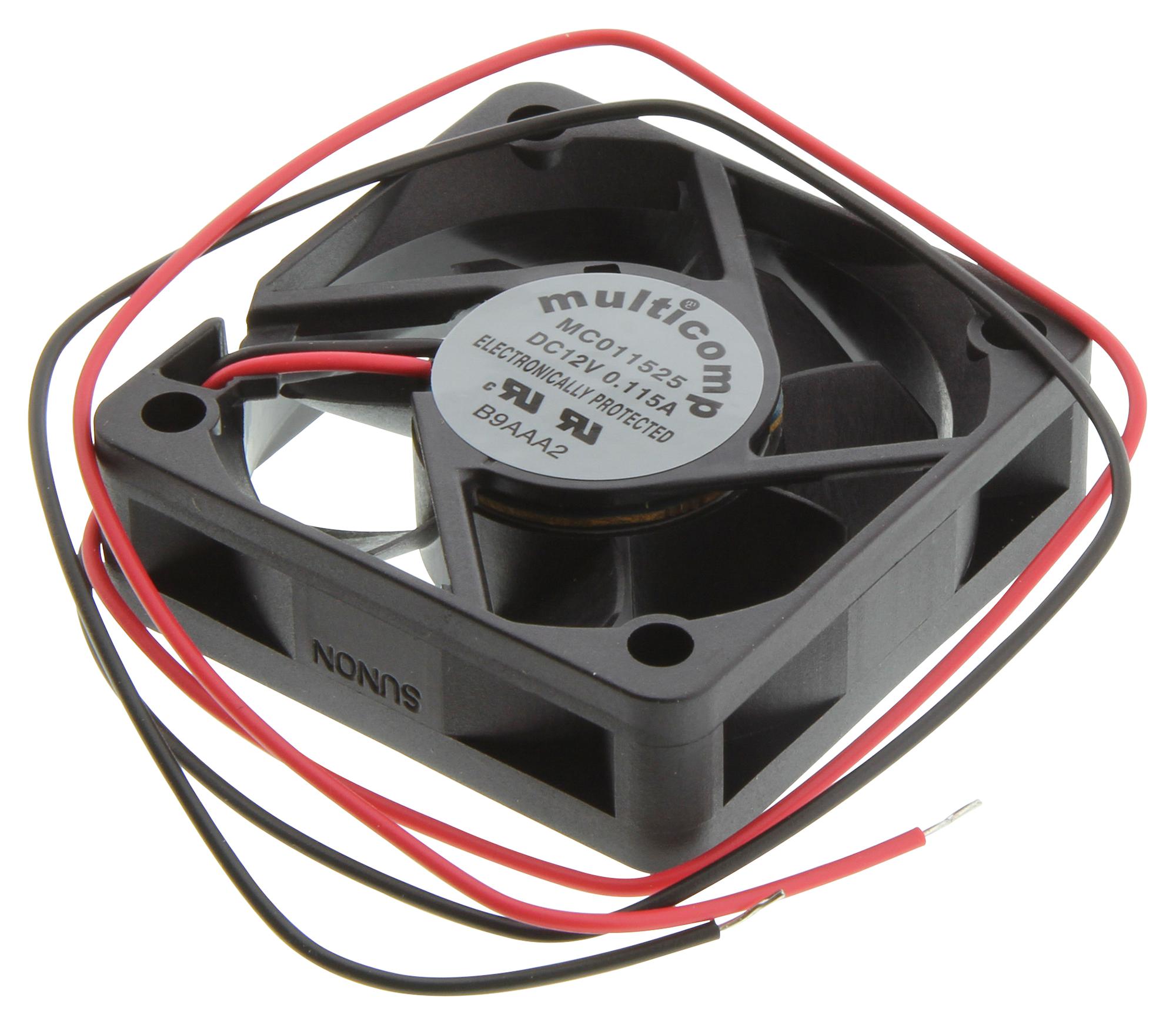

MULTICOMP MC011525 axial dc fan
These 50mm x 50mm x 15mm axial DC fans feature Vapo bearing systems and robust thermoplastic frames with UL94V-0 flammability rated blades. Designed for reliable cooling in electronic enclosures, they operate on 12V DC or 24V DC with a rated power consumption of up to 1.38W. With speeds of 6100 RPM or 7200 RPM, they provide airflow of 17-18.6 CFM and static pressure up to 0.31 Inch-H20. Suitable for indoor use between -10°C and +70°C, they ensure long life up to 60,000 hours with automatic restart and polarity protection features.
MULTICOMP MC011525 axial dc fan Specifications:
- Dimensions: 50mm x 50mm x 15mm
- Material of Frame: Thermoplastic PBT of UL94V-0
- Fan Blade Material: Thermoplastic PBT of UL94V-0
- Bearing System: Vapo bearing system
- Rated Voltage: 12V DC / 24V DC
- Rated Current: 100mA / 115mA (max.)
- Rated Power Consumption: 1.2W / 1.38W (max.)
- Operating Voltage Range: 4.5V DC to 13.8V DC (12V model), 8V DC to 27.6V DC (24V model)
- Rated Speed: 7200 RPM +15% (MC011525), 6100 RPM +15% (MC011511)
- Air Flow: 17 CFM (MC011511), 18.6 CFM (MC011525)
- Static Pressure: 0.23 Inch-H20 (MC011511), 0.31 Inch-H20 (MC011525)
- Operating Temperature Range: -10°C to +70°C
- Life Expectancy: Up to 60,000 hours
- Insulation Resistance: 10MQ @ 500V DC
- Protection: Automatic restart, Polarity protection
Buy the Buy Multicomp Axial DC Fans Part Number MC011525 Online
Enhance your electronic cooling systems with our reliable multicomp axial DC fan designed for durability and high performance. Operating on 12V, it features high RPM of 7200, providing efficient airflow of 18.6 CFM and static pressure up to 0.31 Inch-H20. Constructed from thermoplastic materials with UL94V-0 rating, it guarantees safety and longevity up to 60,000 hours under continuous use. Suitable for various industrial and electronic applications, it offers automatic restart, polarity protection, and operates within -10°C to +70°C temperature range. Purchase online now for swift delivery and consistent cooling performance.
Order your Multicomp SeriesMC011525 12V High-Speed Axial Fan today and ensure efficient cooling with reliable industrial-grade performance.
Frequently Asked Questions
Where can I buy MULTICOMP MC011525?
You can click on the BUY or RFQ button to purchase MC011525 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011525?
You can download the MC011525 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011525?
MULTICOMP
