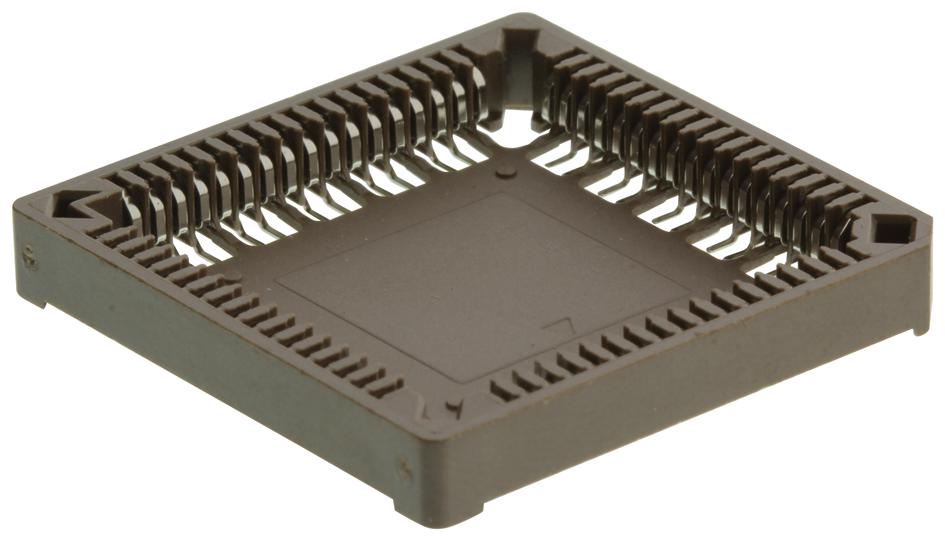

MULTICOMP MC68PLCCSMT PLCC Socket
The MC-68PLCC-SMT is a 68-way, 1.27mm pitch, surface-mount PLCC socket made with tin-over-copper plated phosphor bronze contacts and a brown PPS plus glass-reinforced insulator. It supports up to 1A current at 250VAC, with a maximum contact resistance of 30 milliohms and insulation resistance of 100 megaohms. Operating temperature ranges from -55°C to +105°C, making it suitable for telecommunications and networking applications where durable and reliable connections are essential. Designed for easy mountings, it ensures consistent electrical performance and long-term stability.
MULTICOMP MC68PLCCSMT PLCC Socket Specifications:
- Material: PPS, glass reinforced, rated UL
- Insulator Color: Brown
- Contacts: Phosphor bronze
- Plating: Tin over copper overall
- Maximum Operating Voltage: 250 V ac
- Maximum Current Rating: 1A
- Maximum Contact Resistance: > 30 mΩ
- Minimum Insulation Resistance: 100 MΩ
- Dielectric Withstanding Voltage: 500 V ac for 1 min
- Temperature Rating: -55°C to +105°C
- Operating Temperature: -55°C to +105°C
- Environmental: Lead Free
- Maximum Process Temperature: 230°C for 30s, 260°C for 5s
- Dimensions: 1.219 inches (30.95 mm) length for 68 positions, pitch 1.27 mm, surface-mount design
Buy the Buy Multicomp PLCC Socket Part Number MC68PLCCSMT Online
Enhance your electronic connections with the Multicomp PLCC socket designed for durability and efficiency. Featuring a 68-way, surface-mount design, it is ideal for telecom, networking, and other electronic applications. With tin-over-copper plated contacts, operating from -55°C to +105°C, and a 1A current capacity at 250VAC, this socket provides dependable performance. Easy to install with precise dimensions, it ensures long-lasting, stable connections, backed by a trusted brand. Order online today to streamline your assembly process with high-quality, reliable components.
Buy Multicomp MC68PLCCSMT now and experience reliable, high-quality surface-mount socket solutions for telecommunications and networking projects.
Frequently Asked Questions
Where can I buy MULTICOMP MC68PLCCSMT?
You can click on the BUY or RFQ button to purchase MC68PLCCSMT from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC68PLCCSMT?
You can download the MC68PLCCSMT datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC68PLCCSMT?
MULTICOMP
