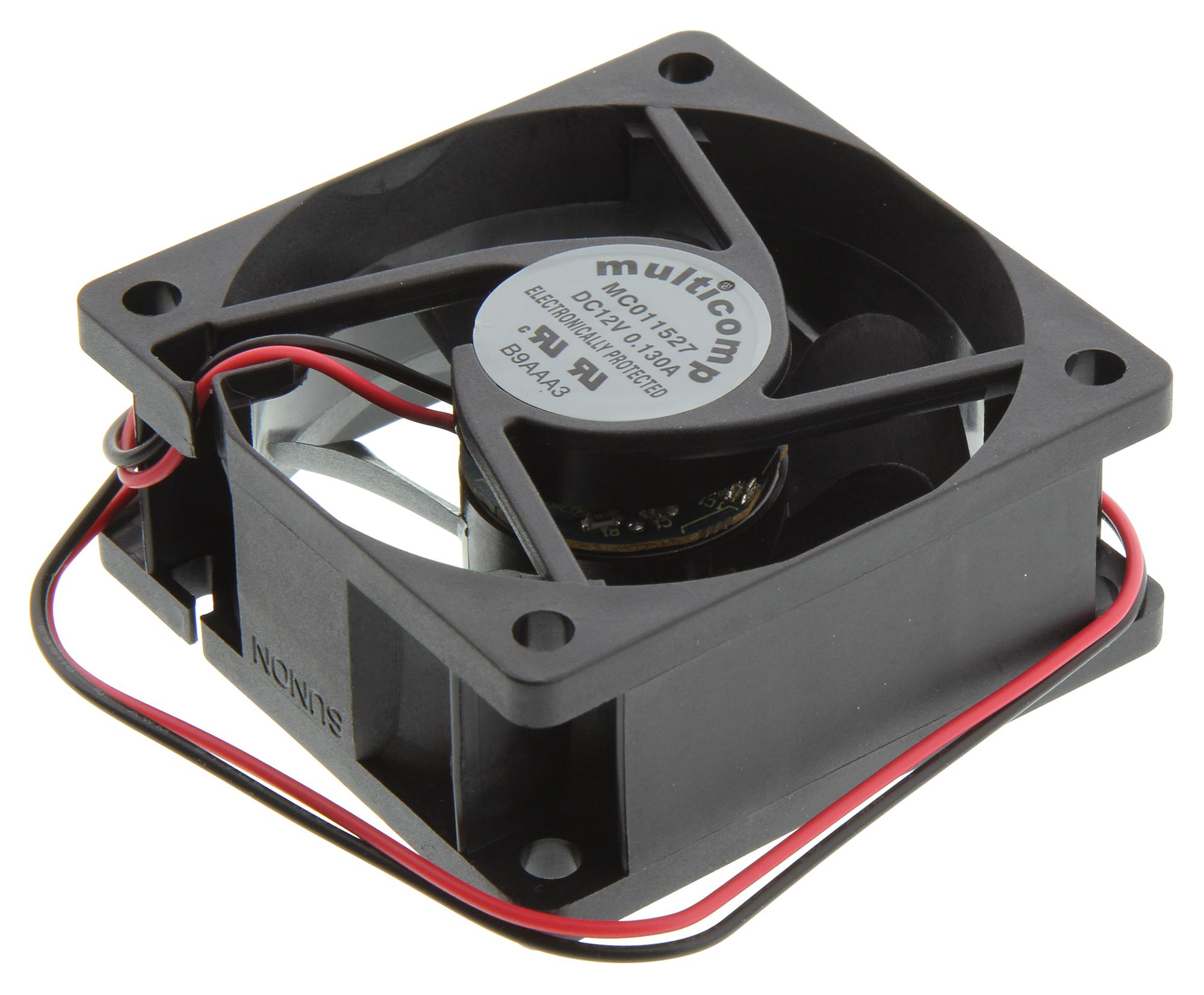

MULTICOMP MC011527 Axial Fan
The axial DC fan features a Vapo bearing system, operates at 12V DC, and offers a compact 60mm x 60mm x 25mm design with efficient airflow of 27 CFM and a static pressure of 20.31 Inch-H20. It is constructed with UL94V-0 thermoplastic materials, ensuring durability and safety, with a rated speed of 5200 RPM. Suitable for industrial cooling, electronic cooling, and ventilation applications, it provides reliable long-lasting performance of up to 60,000 hours lifespan, and includes safety features like automatic restart and polarity protection. Ideal for demanding industrial environments requiring high efficiency and safety standards.
MULTICOMP MC011527 Axial Fan Specifications:
- Motor Design: Single phase, 4-poles Brushless DC motor
- Bearing System: Vapo bearing system
- Dimensions: 60mm x 60mm x 25mm
- Frame Material: Thermoplastic PBT of UL94V-0
- Fan Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter-Clockwise viewed from front
- Mounting Holes: Diameter 4.3mm in 8 holes
- Weight: 145g
- Rated Voltage: 12V DC
- Rated Current: >130mA / Max. 150mA
- Rated Power: 2.56W / Max. 1.8W
- Operating Voltage Range: 4.5V DC to 13.8V DC
- Starting Voltage: 4.5V DC (25°C Power ON/OFF)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Rated Speed: 5200 RPM +15%
- Air Flow: 27 CFM
- Static Pressure: 20.31 Inch-H20
- Acoustic Noise: 31.2 dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 hours @ 40°C, 65% humidity
- Protection: Automatic Restart, Polarity Protection
- Certifications: UL, CUR, TUV, CE
Buy the Multicomp 5200 RPM axial fan – Reliable cooling solution for industrial applications
Enhance your cooling systems with this reliable 12V axial fan featuring Vapo bearing technology, compact 60x60x25mm size, and efficient airflow of 27 CFM. Designed with UL94V-0 thermoplastic materials, it ensures durability and safety in demanding environments. The fan operates at 5200 RPM with a static pressure of 20.31 Inch-H20, providing consistent performance up to 60,000 hours lifespan. Perfect for industrial, electronic, and ventilation applications, it includes safety features like automatic restart and polarity protection to ensure long-term operational reliability. Buy online now and enhance your cooling solutions with this high-performance fan.
Order your multicomp 5200 RPM axial fan today and give your projects the dependable cooling solution they deserve for industrial and electronic environments.
Frequently Asked Questions
Where can I buy MULTICOMP MC011527?
You can click on the BUY or RFQ button to purchase MC011527 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011527?
You can download the MC011527 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011527?
MULTICOMP
