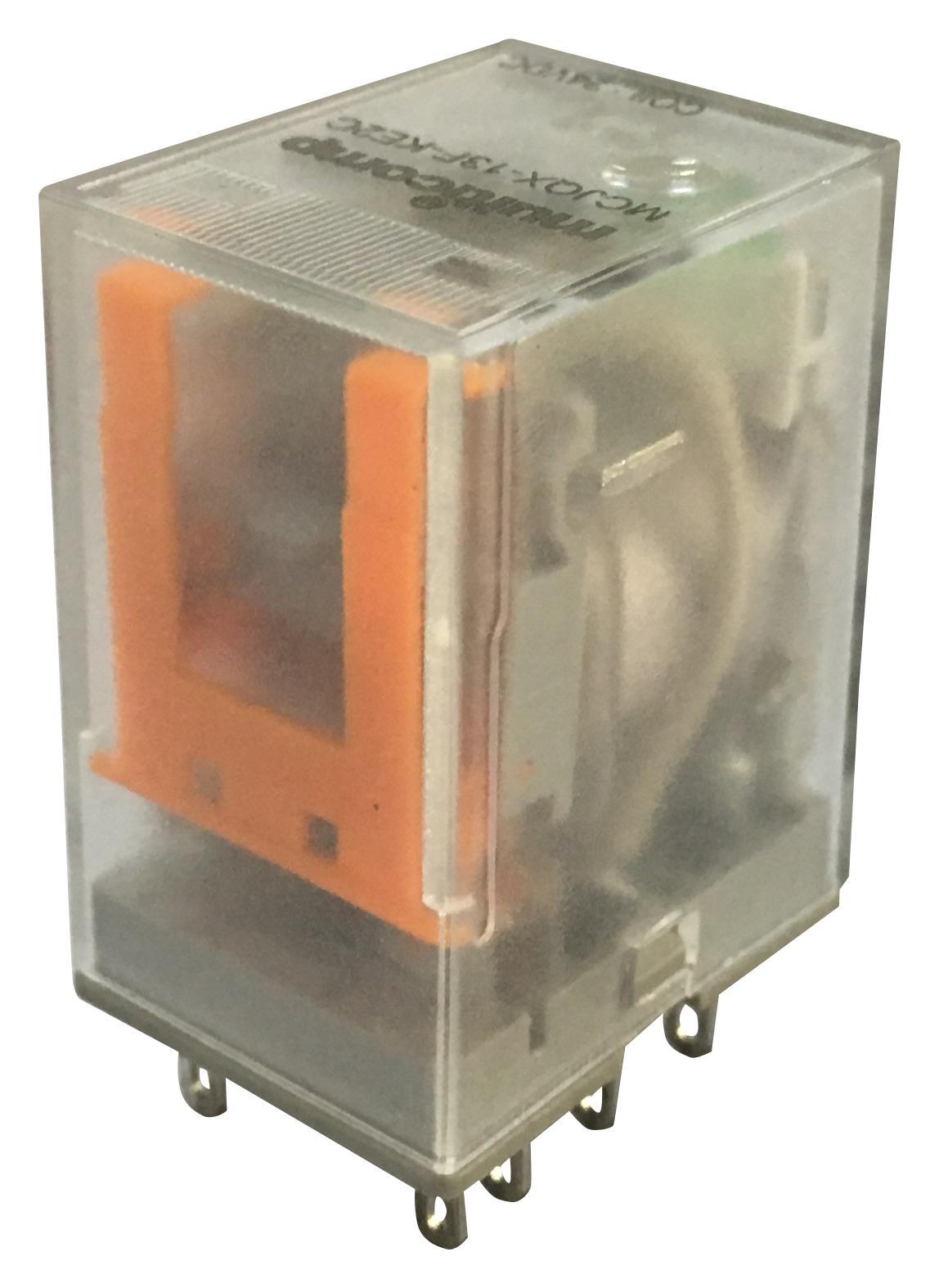

MULTICOMP MCJQX13FKE2C230VAC Power Relay
This power relay with LED from multicomp is designed for reliable switching in industrial applications. Featuring a compact size, high switching power, and high sensitivity, it supports resistive loads up to 5A at 250V AC and motor loads up to 1/2HP at 240V AC. The relay operates with a fast response time of less than 20ms, offers excellent insulation resistance of 2500MΩ at 500V DC, and is suitable for a wide temperature range from -55°C to +70°C. It is available with various coil voltages including 24V, 110V, and 230V AC/DC, with plug-in or PCB mounting options.
MULTICOMP MCJQX13FKE2C230VAC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 5A/250V AC, 30V DC
- Motor Load: 1/2HP at 240V AC
- Contact Operating Power: 2500VA resistive
- Initial Contact Resistance: <50mΩ
- Material: Ag alloy
- Electrical Life: > 10^6 Cycles
- Mechanical Life: 2 x 10^7 Cycles
- Operate Voltage (25°C): DC <75% Rated, AC <80% Rated
- Release Voltage (25°C): DC 210%, AC 230% Rated
- Max. Allowed Voltage (25°C): 110% Rated
- Insulation Resistance: 2500MΩ at 500V DC
- Coil Power: 0.9W, AC Consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Between Contacts Dielectric Strength: 1000V AC/1min
- Between Contact and Coil Dielectric Strength: 2000V AC/1min
- Ambient Temperature Range: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G, 11ms sine wave
- Vibration Resistance: 10–55Hz, 1mm amplitude
- Mounting: Plug-in terminals or PCB terminals
- Weight: 35g
Buy the multicomp MCJQX-13F-KE2C230VAC – Reliable Power Relay for Industrial Applications
Experience the reliability of multicomp power relays, ideal for controlling high power loads in industrial and automation settings. Featuring compact design, fast switching times, and multiple coil voltage options, these relays ensure seamless integration into your control systems. The relays support resistive and inductive loads with high durability, long electrical and mechanical life, and excellent insulation resistance. Whether for PLCs, motor control, or switching applications, choose multicomp relays for dependable performance and easy online ordering for quick deployment in your projects.
Get multicomp MCJQX-13F-KE2C230VAC today—built for precise switching and long-lasting durability in industrial automation.
