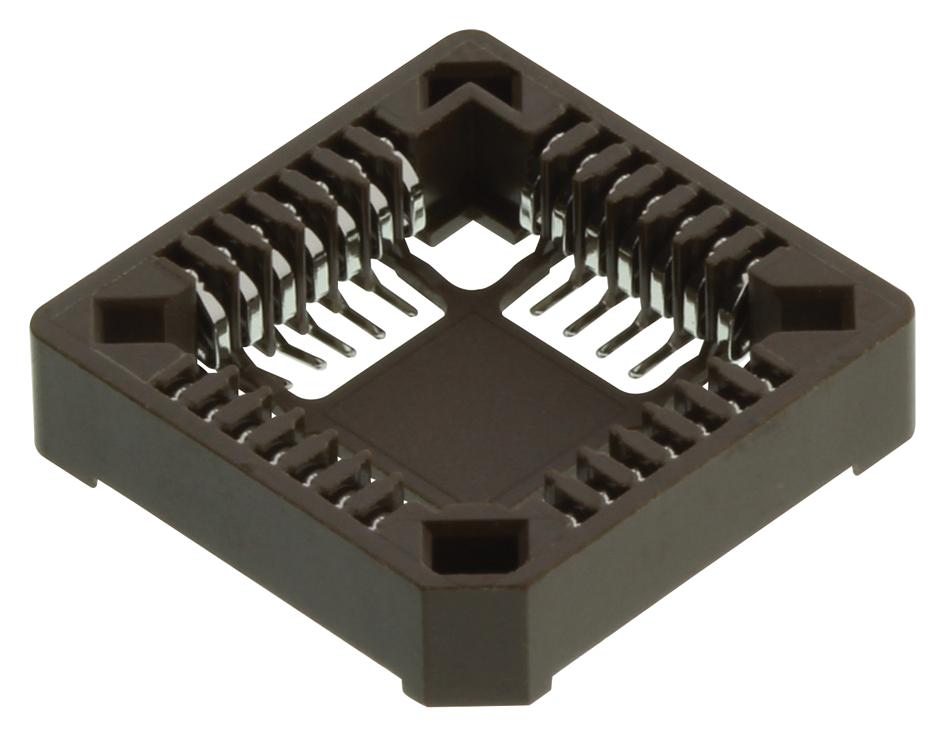

MULTICOMP MC28PLCCSMT Surface-mount PLCC socket
The MC-28PLCC-SMT is a 28-way, 1.27mm pitch surface-mount PLCC socket featuring phosphor bronze contacts and a brown PPS and glass-reinforced insulator. It supports a current rating of 1A and 2VAC, has a maximum contact resistance of 30 milliohms, and a minimum insulation resistance of 1000 megaohms. The operating temperature range is from -55°C to +105°C. Suitable for communication and networking applications, this socket ensures reliable connections with high durability and is rated highly by users. It is ideal for PCB mounting in various electronic devices with precise dimensions and robust material properties.
MULTICOMP MC28PLCCSMT Surface-mount PLCC socket Specifications:
- Material: PPS, glass reinforced, rated UL
- Contact Material: Phosphor bronze
- Plating: Tin over copper underplate
- Maximum Operating Voltage: 250 V ac
- Maximum Current Rating: 1A
- Maximum Initial Contact Resistance: 30 mΩ
- Minimum Insulation Resistance: 1000 MΩ
- Dielectric Withstanding Voltage: 500 V ac for 1 min
- Operating Temperature: -55°C to +105°C
- Lead Free: Yes
- Maximum Process Temperature: 260°C for 5s
- Number of Positions: 28
- Pitch: 1.27 mm
- Dimensions: In inches, approximate 0.715 x 0.715 (18.16 x 18.16 mm)
- Mounting Style: Surface Mount (SMT)
Buy the Multicomp MC28PLCCSMT – Reliable PLCC Socket for Industrial Applications
Order the Multicomp MC28PLCCSMT online today to ensure robust and reliable connections in your electronic projects. Designed with high-quality phosphor bronze contacts and UL-rated insulator, this 28-way socket offers excellent performance from -55°C to +105°C. Its surface-mount design simplifies PCB integration, providing precise dimensions and durable materials suitable for communication, networking, and industrial applications. Enjoy fast delivery and competitive pricing when purchasing online—ideal for professionals demanding quality and reliability in electronic assembly.
Buy Multicomp MC28PLCCSMT now and experience unmatched reliability and performance in electronic device connections.
Frequently Asked Questions
Where can I buy MULTICOMP MC28PLCCSMT?
You can click on the BUY or RFQ button to purchase MC28PLCCSMT from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC28PLCCSMT?
You can download the MC28PLCCSMT datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC28PLCCSMT?
MULTICOMP
