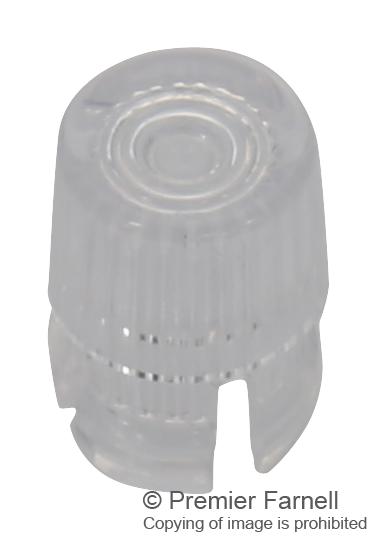

MULTICOMP SML190CTP LED Lens
The CLIPLITE® lens enhances LED visibility with up to 180 degrees viewing angle, utilizing striated lines and fresnel rings to boost brightness by 125%. Made from polycarbonate, it provides electrostatic discharge (ESD) protection up to 16kV, safeguarding LED components from static voltage damage. This low-profile lens features easy front mounting, requiring no tools, and installs swiftly within 6 seconds. Suitable for diffused or nondiffused LEDs, the lens accommodates panel thicknesses from 1/32 to 3/8 inch, featuring optional security rings for added retention.
MULTICOMP SML190CTP LED Lens Specifications:
- Material: Lens polycarbonate, Spacer polypropylene (UL listed materials)
- Design: Standard and low profile with fresnel rings and striated lines; CLR 301 without fresnel rings
- Mounting: Front panel mount, deburred holes; 3mm mounts in 4.34mm hole, 1/4" centers; panel thickness: 1/32" to 1/8" for SML 190, 1/16" to 1/4" for CLR 301
- Lens retention: Available with security rings RNG 190 (3mm) and RNG 268 (5mm)
- Protection: Guards against electrostatic discharge up to 16kV, reduces IC failure risk
- Viewing Angle: Up to 180°, brightness increased up to 125% with striated lines and fresnel rings
- Installation: Quick snap-in assembly, no tools required, complete in 6 seconds
- Compatibility: Suitable for diffused and nondiffused LEDs, panel thicknesses from 1/32" to 3/8"
- Dimensions: Fits in panel holes of 4.34mm (3mm LEDs) and 4.83mm (5mm LEDs), with hole center spacing of 1/4" and 3/8" respectively
Buy the Polycarbonate LED Lens – Reliable Viewing Angle for Industrial Applications
Secure your LED lighting efficiency with our polycarbonate CLIPLITE® lens, designed for quick, hassle-free front panel mounting. Provides up to 180-degree view, boosts brightness, and protects against static discharge up to 16kV. Perfect for diffused or nondiffused LEDs in industrial and sunlight environments. Easy installation requires no tools and is completed within 6 seconds, saving time and cost. Suitable for various panel thicknesses with optional security rings. Enhance your LED visibility and reliability instantly by purchasing online today for superior lighting solutions.
Order your CLIPLITE low profile lens today and ensure your LED components are protected with rapid, tool-free installation for industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP SML190CTP?
You can click on the BUY or RFQ button to purchase SML190CTP from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SML190CTP?
You can download the SML190CTP datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SML190CTP?
MULTICOMP
