MULTICOMP MC35631231053 Industrial Reed Relay
The general purpose DIP reed relay is a reliable and compact electronic switching device, suitable for industrial automation, measurement, and control applications. It features a 14-pin DIP package, high-speed operation, low drive power, and optional coil suppression diode. The relay offers multiple contact configurations including SPDT and DPST-NO, with ratings up to 10W and 150V DC switching voltage. It ensures high insulation resistance, durability for millions of operations, and is suitable for environments requiring robust contact performance and electrical isolation.
MULTICOMP MC35631231053 Industrial Reed Relay Specifications:
- Package: 14-Pin DIP
- Contact Form: 1 Form C (SPDT) / 2 Form A (DPST-NO)
- Coil Data: 5V DC (200Ω, 140Ω, 2150Ω), 12V DC (500Ω), 24V DC (2150Ω)
- Contact Resistance: Max. 150mΩ (Form A), Max. 200mΩ (Form C)
- Operate Time: Typ. 0.5ms
- Release Time: Typ. 0.5ms
- Switching Power: Max. 10W, 5W
- Switching Voltage: Max. 150V DC, 100V DC
- Switching Current: Max. 0.5A
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +100°C
- Dielectric Strength: 1500V DC/peak AC between coil and contacts
- Life Expectancy: 250 x 10^6 operations at specified load
- Vibration: 20G, Shock: 50G
- Dimensions: 0.271 inches (6.9 mm) max length, other dimensions as specified

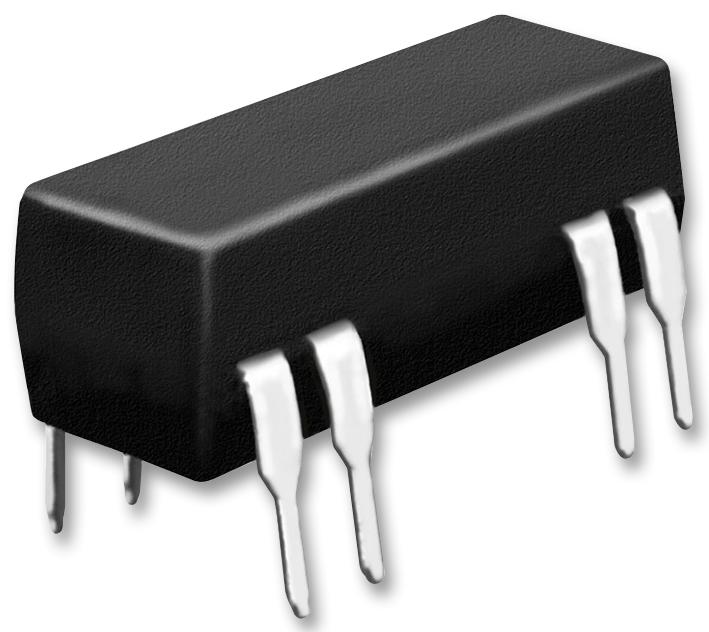

Buy the Premier Farnell MC3563-123 Reliable Industrial Reed Relay for Automation
Buy the reliable industrial reed relay online today. This high-performance switching device features a 14-pin DIP package, high speed operation, low power consumption, and multiple contact configurations including SPDT and DPST-NO. Designed for industrial automation, measurement, and control systems, it ensures high insulation resistance, durability for hundreds of millions of operations, and is suitable for environments demanding robustness and electrical isolation. Enhance your projects with this trusted relay, available for quick online purchase, ensuring seamless integration into your systems.
Get Premier Farnell MC3563-123 today—built for precision, durability, and reliable switching in industrial applications.
