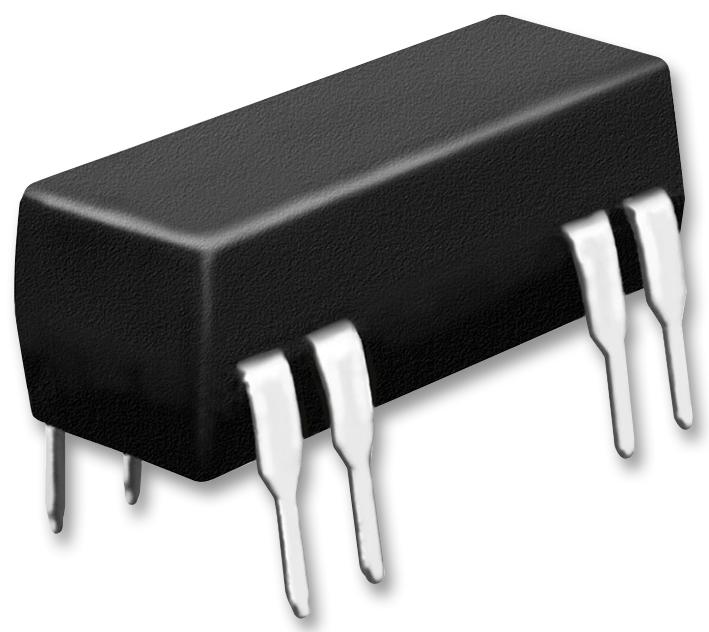

MULTICOMP MC35721220241 DIP Reed Relay
The relay is a general-purpose DIP reed relay with high speed, low drive power, and industry-standard 14-pin DIP package. It features a SPDT or DPST-NO contact form, suitable for switching applications up to 10W or 5W power, with switching voltages up to 150V DC. Operating temperature ranges from -20°C to +85°C, while storage spans -40°C to +100°C. The relay offers a contact resistance of up to 200mΩ, operate and release times of approximately 0.5ms, and a life expectancy of 25 billion operations at specified loads. It includes optional coil suppression diode options for improved performance.
MULTICOMP MC35721220241 DIP Reed Relay Specifications:
- Contact Form: 1 Form C (SPDT) / 2 Form A (DPST-NO)
- Coil Data: 5V DC, Resistance 200Ω, Max Voltage 7V DC; 12V DC, Resistance 500Ω, Max Voltage 16V DC; 24V DC, Resistance 2150Ω, Max Voltage 32V DC
- Contact Resistance (Initial): Max. 200mΩ
- Operate Time (Typ): 0.5ms
- Release Time (Typ): 0.5ms
- Switching Power (Max): 10W
- Switching Voltage (Max): 150V DC
- Switching Current (Max): 0.5A
- Carrying Current (Max): 1A
- Dielectric Strength: 1500V DC/peak AC between coil and contacts
- Capacitance between open contacts: Typ. 0.5pF
- Vibration: 20G
- Shock: 50G
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +100°C
- Life Expectancy: 25 x 10^8 operations (at 1V DC, 10mA load)
Buy the Buy Premier Farnell MC35721220241 Part Number MC35721220241 Online
Purchase the high-quality DIP reed relay online to ensure dependable switching in your electronics and industrial applications. This relay offers fast response times, low power consumption, and a wide operating temperature range, making it ideal for automation, control systems, and testing equipment. With multiple contact configurations, high dielectric strength, and an extensive lifespan, this relay guarantees robust performance. Buy online today to get fast, secure delivery and integrate this durable relay into your designs for optimal operation and longevity.
Order your Premier Farnell SeriesMC35721220241 relay today and ensure reliable switching performance in your electronic projects.
