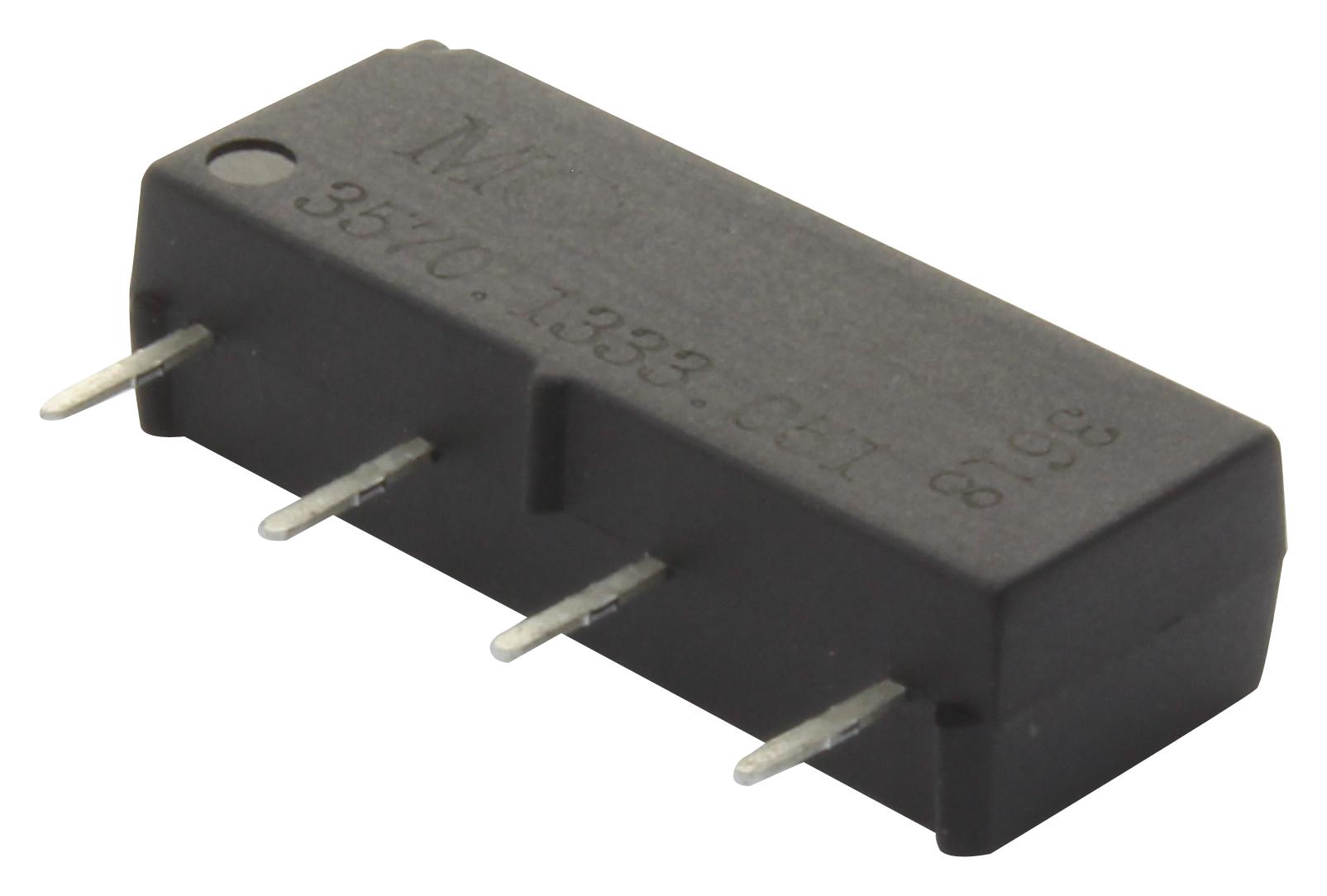

MULTICOMP MC35701331053 SIP Reed Relay
The Multicomp general-purpose SIP reed relay is a low-cost, reliable switching component suitable for various electronic applications. This 1 Form A relay supports 10W switching power, with a maximum voltage of 150V DC and a current capacity of 0.5A. It features a compact SIP package, an internal coil suppression diode option, and operates over a temperature range of -40°C to +85°C. Its quick operate and release times ensure efficient switching, making it ideal for automation, control systems, and signal switching tasks.
MULTICOMP MC35701331053 SIP Reed Relay Specifications:
- Contact Resistance (Initial): 200mΩ max.
- Operate Time: 0.35ms (typical) at nominal voltage
- Release Time: 0.2ms (typical)
- Insulation Resistance: 10^9Ω @ 100V, 20°C, 40% RH
- Dielectric Strength: 200V DC/peak AC between open contacts
- Capacitance Between Open Contacts: 0.5pF
- Vibration Resistance: 20G
- Shock Resistance: 20G
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Life Expectancy: 10^8 operations (@ 1V DC, 10mA)
Buy the Multicomp Series SIP Reed Relay: MC3570-1331-053
Purchase the high-quality Multicomp SIP reed relay MC3570-1331-053 online today to ensure reliable signal switching in your electronic design. This compact relay is designed for automation, control, and signal switching, offering 10W power capacity, a maximum voltage of 150V DC, and a current rating of 0.5A. Its quick operation time and optional internal diode make it versatile and efficient for various applications. Order now and benefit from fast delivery and excellent technical support to enhance your projects efficiently.
Order your Multicomp Series SIP reed relay MC3570-1331-053 today and enhance your electronic projects with dependable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP MC35701331053?
You can click on the BUY or RFQ button to purchase MC35701331053 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC35701331053?
You can download the MC35701331053 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC35701331053?
MULTICOMP
