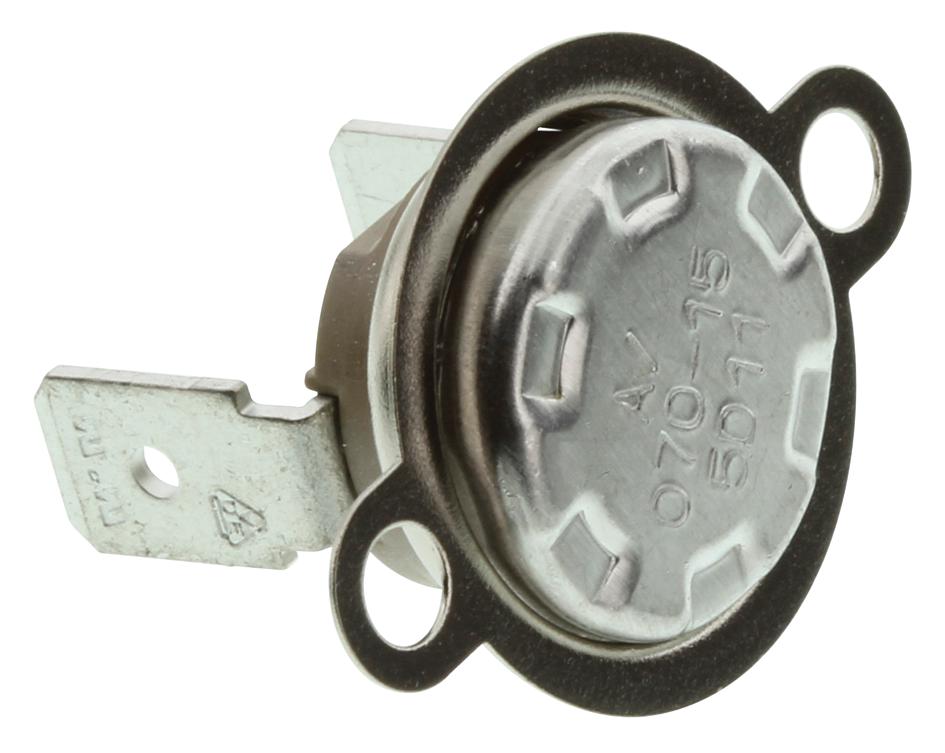

MULTICOMP T23A112ASR215 Industrial Thermostat
The T23 thermostat offers reliable temperature control with a fixed point range from 50°C to 205°C, featuring a differential of 10°C to 30°C and a reset temperature at 6°C. It operates at 240°C heat resistivity and supports resistive loads of up to 15A 125V AC or 15A 250V AC, with a contact resistance of 50mΩ or less. Designed for durability, it has an operating life of up to 100,000 cycles (Class If VDE) and dielectric strength of AC 1000V for at least one minute. Suitable for industrial temperature regulation applications, it combines precise control, high resistance, and long service life.
MULTICOMP T23A112ASR215 Industrial Thermostat Specifications:
- Operation Temperature: 50°C to 205°C
- Temperature Tolerance: ±5°C (standard), ±3°C (available), or as appointed by customers
- Reset Temperature: 6°C (optional ±4°C)
- Differential: 10°C to 30°C
- Heat Resistivity: 240°C
- Electrical Rating: 15A 125V AC, 10A 250V AC, 15A 250V AC
- Contact Resistance: 50mΩ or less
- Dielectric Strength: AC 1000V for one minute or more
- Insulation Resistance: 100MΩ or more
- Operating Life: 100,000 cycles (Class If VDE), 10,000 cycles at 15A 250V AC
- Suitable for temperature control in industrial systems
Buy the Thermostat T23A112ASR215 – Reliable Temperature Control for Industrial Applications
Enhance your industrial temperature regulation with the reliable Thermostat T23A112ASR215. Ideal for precise control from 50°C to 205°C, it offers high electrical ratings, a long operational lifespan of up to 100,000 cycles, and excellent insulation resistance. Designed for durability and dependable performance, this thermostat supports resistive loads up to 15A and withstands intense heat with resistivity of 240°C. Order online now for fast delivery and ensure your systems operate smoothly with this high-quality control device.
Order your Thermostat T23A112ASR215 today and upgrade your temperature regulation systems with this durable and high-performance component.
