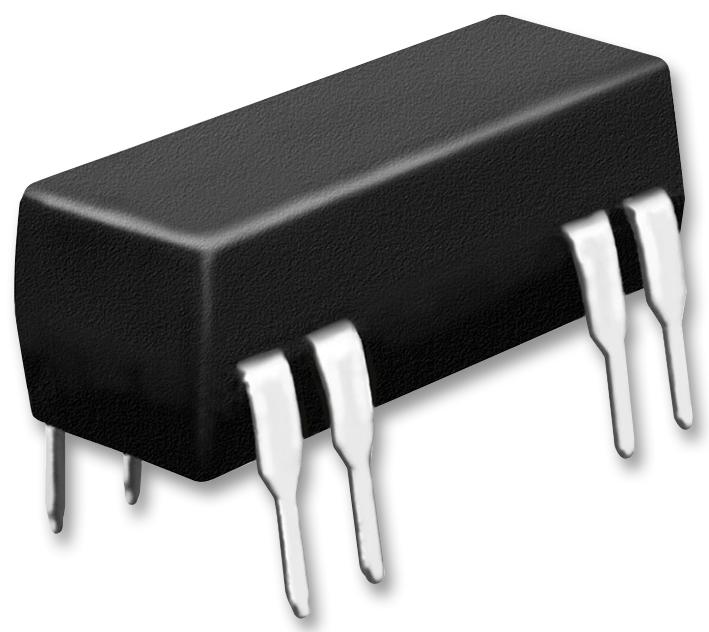

MULTICOMP MC35721220051 Reed Relay
The multicomp general purpose DIP reed relay combines high-speed switching with low drive power in a 14-pin DIP package suitable for various industrial and automation applications. It offers 1 Form C (SPDT) and 2 Form A (DPST-NO) contact configurations, with a maximum switching power of 10W and switching voltage up to 150V DC. Designed for reliable operation, it features quick actuation times of 0.5ms, excellent insulation resistance, and robust dielectric strength, making it ideal for control circuits requiring dependable relay performance.
MULTICOMP MC35721220051 Reed Relay Specifications:
- Contact Resistance (Initial): 150mΩ for 2 Form A, 200mΩ for 1 Form C
- Operate Time: Typ. 0.5ms, including bounce
- Release Time: Typ. 1.5ms for 1 Form C, 0.5ms for 2 Form A
- Insulation Resistance: Min. 10^10Ω at 100V, 20°C, 40% RH
- Dielectric Strength: Min. 1500V DC between coil and contacts, all pins
- Capacitance: 0.5pF (typ.) between open contacts
- Vibration: 20G, Shock: 50G
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +100°C
- Life Expectancy: 250×10^8 operations at 1V DC/10mA
Buy the Farnell Series Multi-comp Reed Relay: MC3572-1220-051
Purchase the Farnell Series Multi-comp Reed Relay MC3572-1220-051 online today and experience dependable switching in your control systems. This compact, high-speed relay features 1 Form C and 2 Form A configurations, rated for up to 150V DC and 10W power. Its rapid switching times of 0.5ms make it suitable for demanding automation and industrial applications. With durable construction, excellent insulation resistance, and robust dielectric strength, this relay guarantees long-lasting performance across temperature ranges from -20°C to +85°C. Buy online now for fast delivery and seamless integration into your projects.
Order your Farnell Series Multi-comp Reed Relay MC3572-1220-051 today and ensure your projects benefit from reliable, high-speed switching performance.
