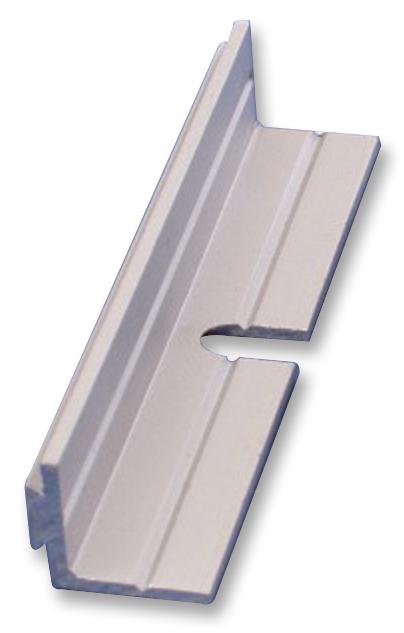

MULTICOMP MCLPS80 Electronic Enclosure Fittings
This product, part of the Multicomp accessories range, includes Linc-Lugs, bezels, and gasket sets designed for waterproofing and mounting E-Case housings. The aluminium extruded mounting brackets are made from high-quality aluminium 6063 T6, silver anodized to a 5 µm thickness, and are available in standard lengths of 40 mm and 80 mm. The bezels are aesthetically designed with concealed mounting screws to enhance appearance, while the gasket sets improve waterproof ratings from IP65 to IP66, ensuring robust protection against water ingress in various environments. Suitable for electrical enclosures, the components are compatible with a range of industrial applications, offering durable, corrosion-resistant, and easy-to-install features for secure housing and protected installations.
MULTICOMP MCLPS80 Electronic Enclosure Fittings Specifications:
- Material: Aluminium 6063 T6
- Finish: Silver anodized, 5 µm thickness
- Linc-Lug length options: 40 mm, 80 mm
- Weight: 15 g per pair
- Extrusion perimeter: 70 mm
- Gasket set comprises: two white silicon foam gaskets and polythene washers
- Waterproof ratings: IP65, IP66, IP67 in die-cast enclosure
- Application: Mounting and waterproofing of E-Case housings
- Installation: Secured with self-tapping screws, compatible with dovetail features
- Bezel sizes: Four sizes for various extrusion profiles, with concealed screw heads
- Finish: Anodized aluminium, corrosion resistant
- Gasket compatibility: Ensures enhanced IP ratings, customizable with washer options
- Environmental Resistance: Water ingress tested up to 1 meter for 24 hours in IP67 enclosures
- Design Features: Easy installation, aesthetically pleasing with concealed screws, suitable for electronics housing
Buy the Buy Multicomp Accessories Part Number MCLPS80 Online
Enhance your project with Multicomp's waterproof enclosure fittings including Linc-Lugs, bezels, and gasket sets. Designed from high-quality aluminium with anodized finishes, these accessories offer secure mounting and water resistance up to IP66. Easy to install with self-tapping screws and concealed screw heads, the components are perfect for reliable electrical housing protection. Ideal for industrial, electronic, and outdoor applications, these accessories ensure durability, corrosion resistance, and aesthetic appeal, making them essential for professional electrical enclosure solutions.
Order your Multicomp Series MCLPS80 waterproof mounting lugs today and secure your electrical enclosures with reliable corrosion-resistant accessories.
