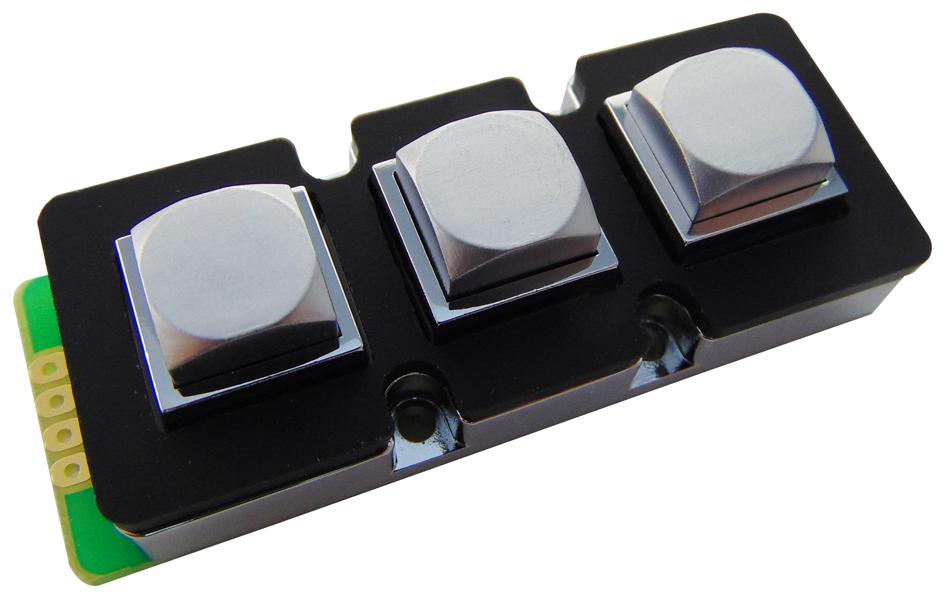

MULTICOMP MCAK103BSSSWPMM Waterproof Metal Keypad
The MCAK103BSSSWPMM is a 1x3 silver waterproof metal keypad with matrix output, rated IP67 for dust and water resistance. Made from durable metal, it features a contact rating of 20mA at 24V DC and a maximum contact resistance of 200 ohms. The keypad has a lifespan of 2,000,000 cycles per key, operating temperature from -20°C to +60°C, and storage from -40°C to +65°C. Its panel cutout dimensions are 23mm width and 25.25mm height, with an external length and height of 7.6mm. Suitable for industrial environments, it ensures long-lasting, reliable operation.
MULTICOMP MCAK103BSSSWPMM Waterproof Metal Keypad Specifications:
- Contact Rating: 20mA, 24V DC
- Max. Contact Resistance: 200 ohms
- Life: 2,000,000 cycles per key
- Operating Temp.: -20°C to +60°C
- Storage Temp.: -40°C to +65°C
- Material: Metal
- Waterproofing: IP67
- Keypad Array: 1x3
- Keypad Output: Matrix
- Panel Cutout Width: 23mm
- Panel Cutout Height: 25.25mm
- External Length / Height: 7.6mm
- Fixing Centres: 218mm x 16.75mm
- Operating Force: 21.18N
- Travel: 2mm
Buy the Multicomp Series Waterproof Metal Keypad: MCAK103BSSSWPMM
Purchase the waterproof metal keypad from Multicomp online today. Designed with a durable metal construction and IP67 rating, it provides reliable performance in demanding industrial settings. Its 1x3 matrix output and high cycle life of 2 million ensure long-lasting, dependable operation. The keypad features a compact design with panel cutout dimensions of 23mm by 25.25mm and an external height of 7.6mm, suitable for control panels requiring robust, waterproof, and dustproof input components. Order now for quick delivery and quality assurance.
Get Multicomp MCAK103BSSSWPMM today—built for durability and reliable industrial control in challenging environments.
