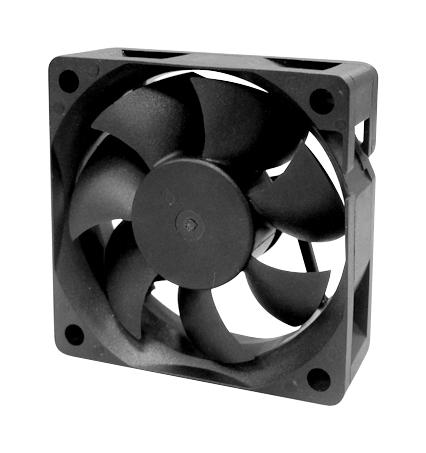

MULTICOMP MC002702 DC Axial Fan
This 60mm x 60mm x 20mm multicomp DC axial fan operates on 12V DC voltage, delivering 23 CFM airflow with a noise level of 33.5dB. Equipped with a Vapo bearing system and thermoplastic PBT frame and blades, it features a single-phase, 4-pole brushless motor, with a rated speed of 5000 RPM. Designed for reliable performance, it includes features like automatic restart, polarity protection, and a lifespan of approximately 60,000 hours under specified conditions. Suitable for cooling electronic devices and industrial equipment, it complies with RoHS standards for environmental safety.
MULTICOMP MC002702 DC Axial Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 100mA / Max. 115mA
- Rated Power Consumption: 1.20W / Max. 1.38W
- Safety Power Consumption: 1.56W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Design: Single Phase, 4-Pole Brushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation Direction: Counter-Clockwise (viewed from front)
- Mounting Holes: Four 4.3mm diameter holes
- Weight: 50g
- Rated Speed: 5000 RPM ±15%
- Air Flow: 23 CFM
- Static Pressure: 0.21 Inch-H2O
- Acoustic Noise: 33.5 dB (A)
- Insulation Class: UL Class A
- Lifespan: 60,000 hours at 40°C, 65% Humidity
- Polarity Protection: Yes
- Dielectric Strength: 500V for 1 min between housing & lead wire
- Mounting: Four screw holes for installation
Buy the Multicomp Series Axial Fan: MC002702
Enhance your electronic cooling systems with this high-quality 60mm x 60mm x 20mm multicomp axial fan. Operating on 12V DC, it delivers 23 CFM airflow at a noise level of 33.5dB, ensuring efficient heat dissipation for various applications. Its thermoplastic PBT frame and blades, along with a Vapo bearing system, guarantee durability and quiet operation. Easy to mount with four holes and protected with polarity safeguards, this fan offers over 60,000 hours of service life, making it a reliable choice for industrial and electronic cooling needs.
Buy Multicomp MC002702 axial fan now and experience unmatched reliability and performance in electronic cooling solutions.
Frequently Asked Questions
Where can I buy MULTICOMP MC002702?
You can click on the BUY or RFQ button to purchase MC002702 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002702?
You can download the MC002702 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002702?
MULTICOMP
