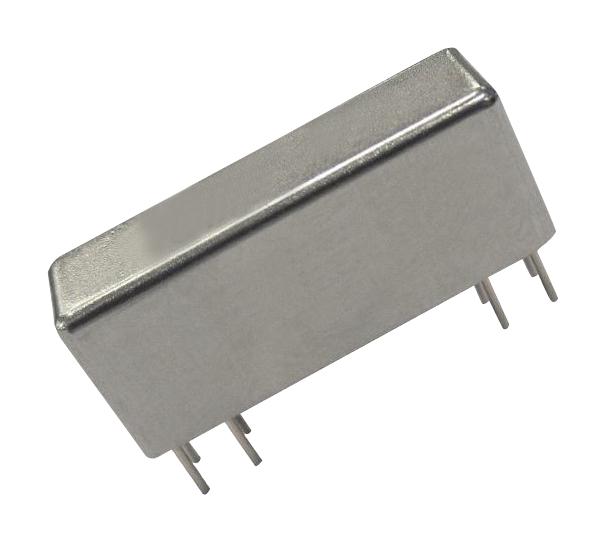

MULTICOMP MCBFH2C05 Multi-pole Instrumentation Relay
This multi-pole instrumentation reed relay features 2 Form A (DPST-NO) and 2 Form C (DPDT) contact configurations, designed for high reliability in precision electronic applications. It uses sputtered Ruthenium contacts for enhanced durability and insulation resistance, supporting switching power up to 10W and voltages up to 200V DC. The relay has excellent dielectric strength, low contact resistance, and fast operate and release times. It is suitable for automation, instrumentation, and control systems requiring reliable switching with minimal contact bounce, all housed within a compact form factor for versatile integration.
MULTICOMP MCBFH2C05 Multi-pole Instrumentation Relay Specifications:
- Contact Form: 2 Form A (DPST-NO), 2 Form C (DPDT)
- Switching Power: 10W
- Switching Voltage: 200V DC (Form A), 100V DC (Form C)
- Switching Current: 0.5A (Form A), 0.25A (Form C)
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +100°C
- Contact Resistance (Initial): 150mΩ (Form A), 200mΩ (Form C)
- Dielectric Strength Between Contacts: 250V DC (Form A), 200V DC (Form C)
- Capacitance: 0.8pF (no shield), 0.2pF (with shield)
- Operate Time: 0.5ms (Form A), 1.5ms (Form C)
- Release Time: 0.15ms (Form A), 2ms (Form C)
- Vibration endurance: 20G
- Shock resistance: 50G
- Dimensions: 0.700 x 0.500 x 0.138 inches (17.78 x 12.70 x 3.50 mm)
Buy the Buy Premier Farnell Multi-Pole Instrumentation Reed Relay Part Number MCBFH2C05 Online
Order the Premier Farnell Multi-pole Instrumentation Relay MCBFH2C05 online today and benefit from quick delivery, trusted quality, and reliable switching performance. Designed for high-precision applications, this relay offers dual contact configurations of 2 Form A and 2 Form C, ensuring versatility and durability in instrumentation, automation, and control systems. With excellent dielectric strength, low contact resistance, fast operate and release times, and robust construction, this relay guarantees dependable operation in demanding environments. Buy now for seamless integration into your electronic projects or industrial systems.
Buy Premier Farnell MCBFH2C05 now and experience unmatched reliability and performance in precision electronic switching applications.
Frequently Asked Questions
Where can I buy MULTICOMP MCBFH2C05?
You can click on the BUY or RFQ button to purchase MCBFH2C05 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCBFH2C05?
You can download the MCBFH2C05 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCBFH2C05?
MULTICOMP
