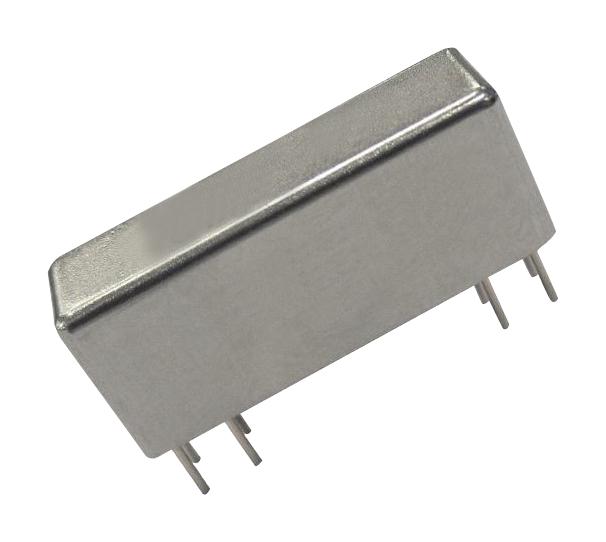

MULTICOMP MCBFH2C12 Multi-Pole Instrumentation Reed Relay
The multi-pole instrumentation reed relay provides reliable switching for various electronic applications with high insulation resistance and sputtered Ruthenium contacts. Designed with 2 Form A and 2 Form C contact configurations, it supports switching power up to 10W and voltage up to 200V DC. Featuring a high quality construction, it offers fast operate and release times, excellent dielectric strength, and a wide temperature range. Suitable for precision instrumentation, automation, and control systems requiring high reliability and minimal capacitance. Compact and robust, it ensures long-term durability and consistent performance in demanding environments.
MULTICOMP MCBFH2C12 Multi-Pole Instrumentation Reed Relay Specifications:
- Contact Form: 2 Form A (DPST-NO) / 2 Form C (DPDT)
- Switching Power (Max.): 10W
- Switching Voltage (Max.): 200V DC
- Switching Current (Max.): 0.5A
- Carrying Current (Max.): 1.58A
- Static Contact Resistance: 150mΩ for 2 Form A, 200mΩ for 1 Form C
- Dielectric Strength between contacts: 250V DC for 2 Form A, 200V DC for 1 Form C
- Insulation Resistance: 100 GΩ at 100V, 25°C, 40% RH
- Operate Time: 0.5ms (typ.) for 2 Form A, 1.5ms for 1 Form C
- Release Time: 0.15ms (typ.) for 2 Form A, 2ms for 1 Form C
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +100°C
- Vibration: 20G
- Shock: 50G
- Dimensions: 0.700 x 0.500 x 0.138 inches (17.78 x 12.70 x 3.50 mm)
Buy the Premier Farnell Series Multi-Pole Reed Switch: MCBFH2C12
Order the Premier Farnell Multi-Pole Instrumentation Reed Relay MCBFH2C12 online today. Designed with 2 Form A and 2 Form C contacts, it supports up to 200V DC switching voltage and 10W power. This relay features fast operate and release times, excellent dielectric strength, and operates reliably in temperatures from -20°C to +85°C. Its compact size and robust construction make it ideal for instrumentation, automation, and control systems requiring high reliability. Purchase now for consistent performance and long-lasting durability.
Get Premier Farnell MCBFH2C12 today—built for precision and long-lasting durability in high-reliability applications.
Frequently Asked Questions
Where can I buy MULTICOMP MCBFH2C12?
You can click on the BUY or RFQ button to purchase MCBFH2C12 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCBFH2C12?
You can download the MCBFH2C12 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCBFH2C12?
MULTICOMP
