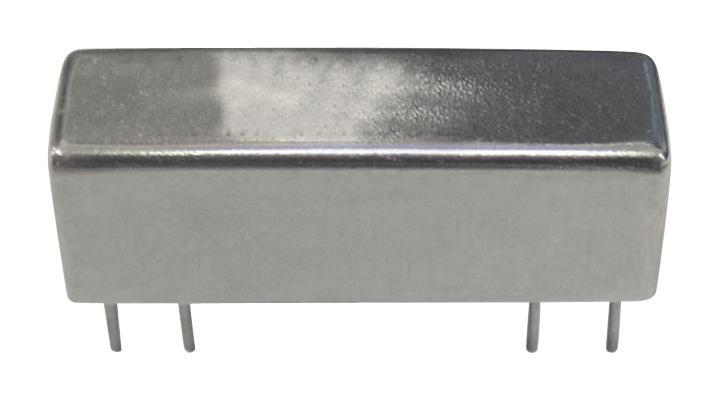

MULTICOMP MCBFM1C12C Instrumentation Reed Relay
The instrumentation reed relay offers high reliability with sputtered Ruthenium contacts, hermetically sealed for long life. Designed for test and instrumentation applications, it features a SPDT contact form, coaxial shield options, high insulation resistance, and robust construction. Available in 5V DC and 12V DC coil voltages, it handles switching power up to 150V DC at 0.25A. Suitable for precision control, its compact dimensions and excellent dielectric strength make it ideal for demanding electrical systems and automation solutions.
MULTICOMP MCBFM1C12C Instrumentation Reed Relay Specifications:
- Contact Form: 1 Form C (SPDT)
- Coil Data: 5V DC, Resistance: 230Ω, Max Resistance: 3.8Ω, Operating Voltage: 0.4V DC, Max Voltage: 7V DC
- 12V DC, Resistance: 1500Ω, Max Resistance: 9Ω, Operating Voltage: 1V DC, Max Voltage: 16V DC
- Switching Power: 150V DC, Max Switching Current: 0.25A, Carrying Current: 1A
- Static Contact Resistance (Initial): 150mΩ
- Operate Time (Typ.): 1ms, Release Time (Typ.): 2ms
- Insulation Resistance (Min.): 2×10^9Ω at 100V, 20°C, 40% RH
- Dielectric Strength: Contacts-200V DC/peak AC, Contacts-Coil-200V DC/peak AC, Contacts/Shield-Coil-1500V DC/peak AC
- Capacitance Across Open Contacts: 2pF, Shield Floating/Guarding: 1pF
- Vibration: 20G, Shock: 50G, Operating Temperature: 25°C to +85°C, Storage Temperature: -35°C to +100°C
- Life Expectancy: 100×10⁶ ops at 1V DC, 10mA
- Dimensions: 0.820 in (20.83 mm) length, 0.600 in (15.24 mm) width, height 0.250 in (6.35 mm)
Buy the Multicomp Series Instrumentation Reed Relay: MCBFM1C12C
Purchase the Multicomp instrumentation reed relay MCBFM1C12C online today for reliable, high-performance switching in test and control applications. Featuring hermetically sealed contacts, a SPDT configuration, and coaxial shield options, this relay provides excellent insulation resistance, fast response times, and robust construction suitable for demanding environments. Its compact size and high dielectric strength make it ideal for automation, instrumentation, and precision electrical systems. Order now to ensure your projects benefit from durable, high-quality relay technology designed for long-term reliability and optimal performance.
Get Multicomp MCBFM1C12C today—built for precision, reliability, and long-lasting performance in test and automation systems.
