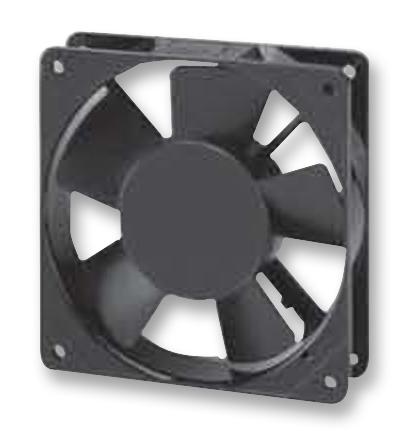

MULTICOMP MCDP203AT2122LBLGN Axial Fan
This axial flow fan by multicomp is designed for efficient air circulation in electronic and industrial applications. It features a compact 120mm x 120mm x 25mm size, operational at 230V AC, with a flow rate up to 91.75m³/h and noise levels of 40dBA. The fan has a ball bearing for durability and a lead wire connection with a 320mm cable length. Suitable for cooling systems, it provides reliable airflow with static pressure capability and is suitable for various ventilation needs in technical environments.
MULTICOMP MCDP203AT2122LBLGN Axial Fan Specifications:
- External Height: 120mm
- External Width: 120mm
- External Depth: 25mm
- Current Rating: 0.07/0.07A
- Flow Rate: 91.75m³/h
- Noise Level: 40dBA
- Bearing Type: Ball
- Power Connection: Lead Wires
- Lead Length: 320mm
- Voltage: 220 to 240VAC
- Frequency: 50/60Hz
- Power Consumption: 14/13W
- Speed: 1700/1900 RPM
- Static Pressure Range: 0.02 to 0.16 Inch-H₂O
- Airflow: Up to 91.75m³/h or approximately 3243 CFM
- Dimensions: 120mm x 120mm x 25mm
- Terminal Type: Therminal, M4 ground lug
- Rated for various ventilation applications
Buy the Multicomp Series Axial Fan: MCDP203AT 230V AC
Purchase the multicomp Axial Fan online now to enhance your cooling solutions. This 120mm x 120mm fan operates at 230V AC, delivering up to 91.75 cubic meters per hour airflow with a noise rating of just 40dBA. Equipped with durable ball bearings and a lead wire connection, it’s ideal for electronics cooling, industrial ventilation, and equipment cooling. Click to buy now for reliable performance, easy installation, and increased system efficiency, ensuring your projects stay cool and operate smoothly for years to come.
Order your multicomp Series Axial Fan today and ensure your cooling systems operate reliably with high airflow and low noise levels.
