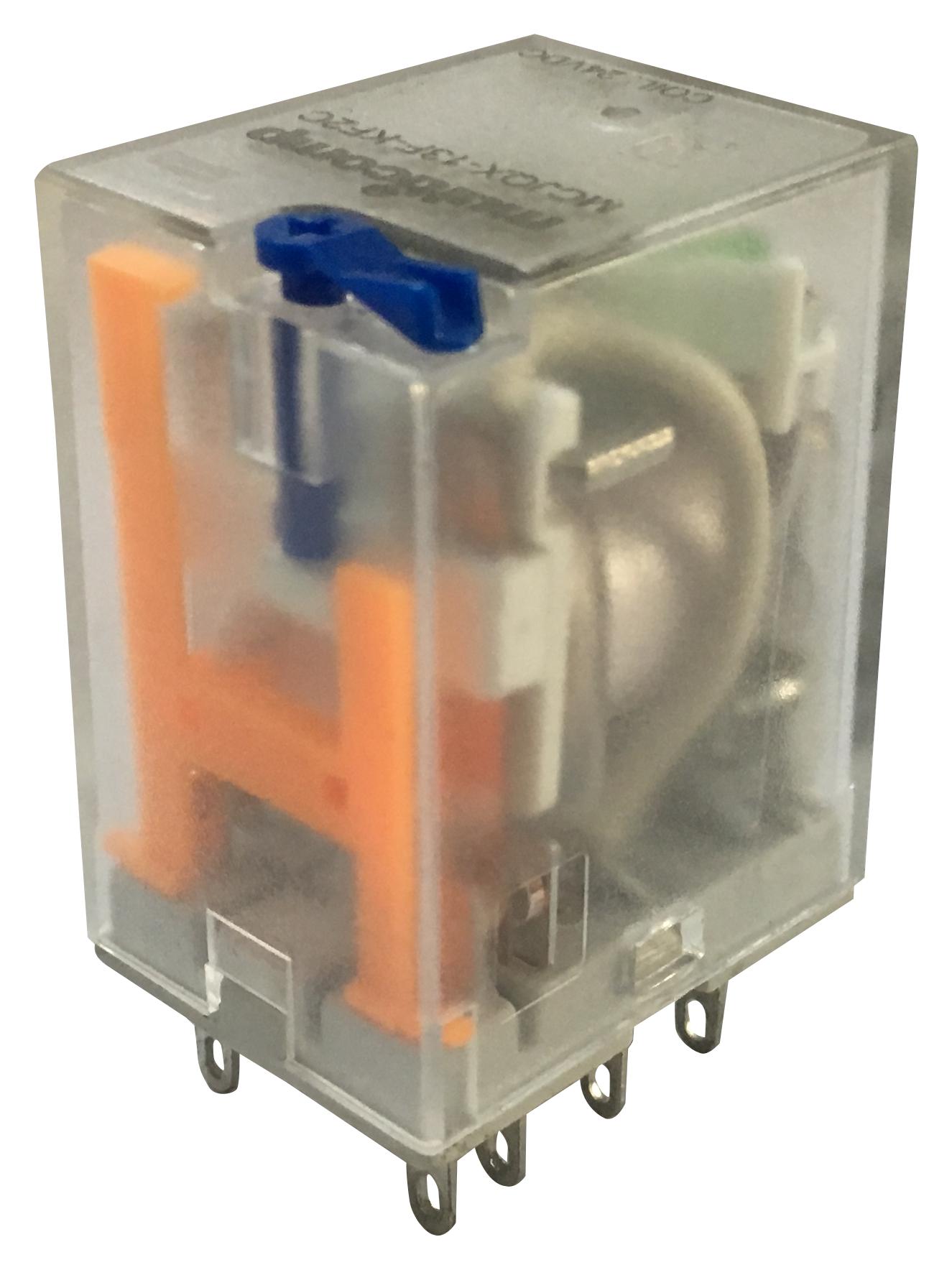

MULTICOMP MCJQX13FKF2C110VAC industrial power relay
The power relay is a compact, high-performance switching component designed for industrial control applications. It features a 2C contact form with a rated load of 10A at 250V AC and 30V DC, providing reliable switching for resistive loads. The relay has a quick operate time of less than 20ms and withstands up to 18000 mechanical cycles. It offers electrical life over 1 million cycles, high insulation resistance of 2500MQ, and operates across a temperature range of -55°C to +70°C. Suitable for automation systems and industrial machinery, it includes plug-in or PCB mounting options for versatile installation.
MULTICOMP MCJQX13FKF2C110VAC industrial power relay Specifications:
- Contact Form: 2 Change 4 Change
- Rated Load: 10A/250V AC, 5A/250V DC, 30V DC
- Resistive (AC-1): 10A/250V AC, 30V DC
- Motor Load (AC-15): 1/3HP, 120V AC; 1/2HP, 240V AC
- Contact Operating Power: 2500VA, 1250VA
- Contact Resistance (Initial): <50mΩ
- Material: Ag alloy
- Electrical Life: >1,000,000 cycles
- Operate Time: <20ms
- Release Time: <20ms
- Insulation Resistance: 2500MQ (500V DC)
- Coil Power: 0.9W
- Coil Resistance: 160Ω (24V DC), 3750Ω (110V AC), 15000Ω (230V AC)
- Operate Voltage: <75% Rated (DC), <80% Rated (AC)
- Release Voltage: 210% Rated (DC), 230% Rated (AC)
- Max. Allowed Voltage: 110% Rated
- Dielectric Strength between Contacts: 1000V AC/1 min
- Between Contact and Coil: 2000V AC/1 min
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10~55Hz, 1mm amplitude
- Mounting: Plug-in terminals or PCB
- Weight: 35g
Buy the Multicomp MCJQX-13F-KF2C-110VAC – Reliable Industrial Power Relay for Automation
Get the multicomp power relay MCJQX-13F-KF2C-110VAC now available online. This high-quality relay offers quick response times, robust construction, and high insulation resistance, making it perfect for automation and industrial control projects. Featuring a compact design, it provides reliable switching for resistive loads up to 10A at 250V AC. Easy to install with plug-in or PCB mounting options, ensuring seamless integration into your systems. Trust in multicomp's quality for durable, efficient relay performance in demanding environments.
Order your multicomp MCJQX-13F-KF2C-110VAC power relay today and enhance your industrial control systems with dependable switching performance.
