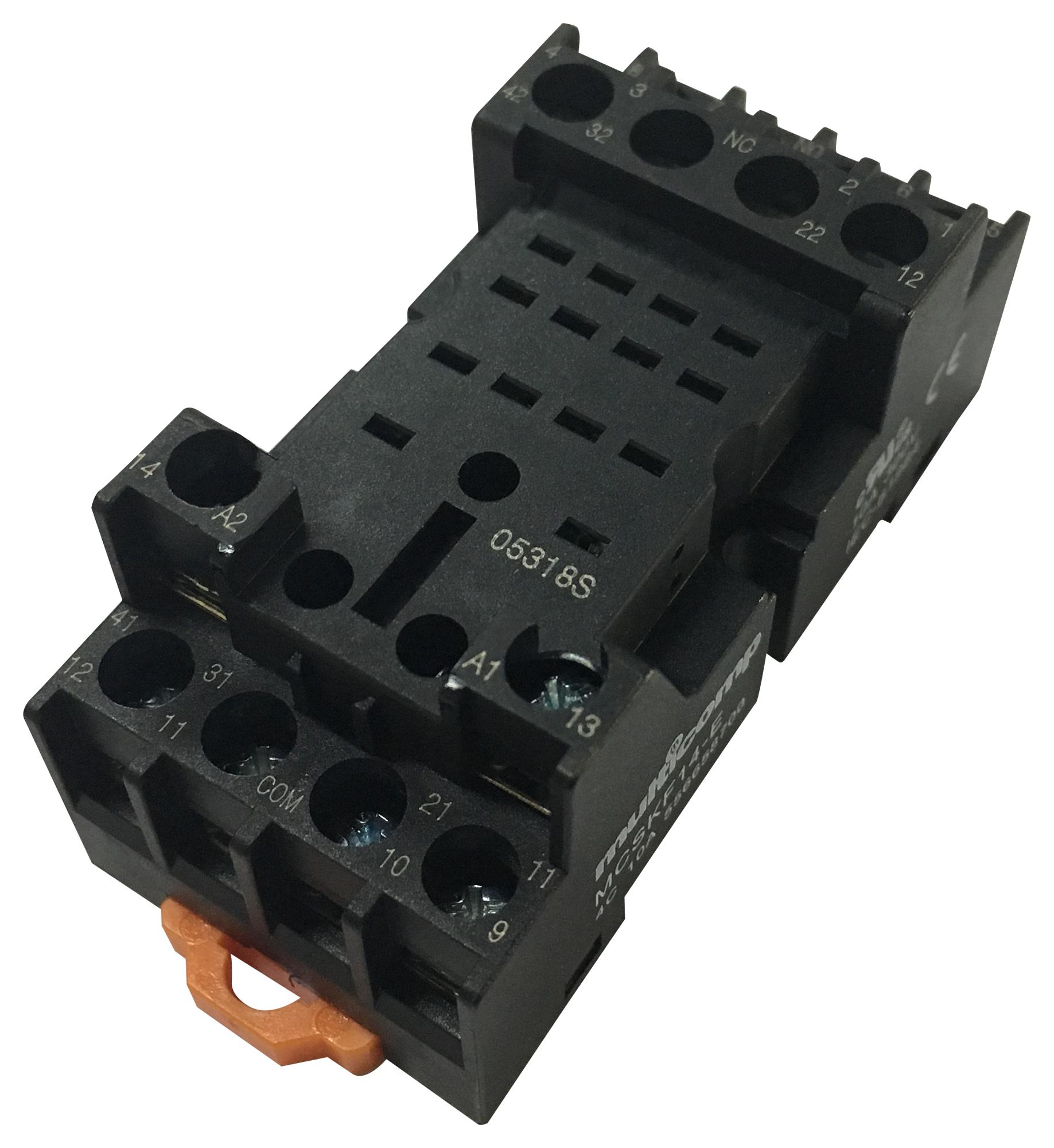

MULTICOMP MCSKF14E Relay Socket
The relay socket series by multicomp offers reliable and versatile connection solutions for JQX-13F relay models, specifically MCSKF08-E and MCSKF14-E. Designed with high dielectric strength of 2,500V/S and rated for 12A or 10A current, these sockets support voltages up to 300V. They feature easy external wiring for a range of 20~14/0.5~2.5 AWG/mm², operate within -45°C to +85°C ambient temperature, and have compact dimensions of approximately 25 to 29.2 mm. Suitable for industrial control panels, automation, and switching applications, these relay sockets provide secure and durable connections for reliable circuit performance.
MULTICOMP MCSKF14E Relay Socket Specifications:
- Part Numbers: MCSKF08-E and MCSKF14-E
- Nominal Load Current: 12A for MCSKF08-E, 10A for MCSKF14-E
- Voltage Rating: 300V
- Dielectric Strength: 2,500V/S
- Max. Tightening Torque: 1Nm
- External Connection Wire: 20~14/0.5~2.5 AWG/mm²
- Ambient Temperature: -45°C to +85°C
- Weight: 35g for MCSKF08-E, 45g for MCSKF14-E
- Dimensions: Approximately 25 to 29.2 mm length
Buy the Multicomp Series Relay Socket: MCSKF14-E
Enhance your control panel with the multicomp relay socket, MCSKF14-E, designed for JQX-13F relays. With a rated current of 10A, voltage up to 300V, and compact dimensions, it ensures secure and dependable connections in industrial environments. Easy wiring support for 20~14 AWG wires, operating temperature range from -45°C to +85°C, and a maximum tightening torque of 1 Nm make installation straightforward. Ideal for automation, switching, and control applications requiring durable, reliable relay mounting solutions. Purchase online today for optimal performance.
Buy multicomp MCSKF14-E relay socket now and experience reliable, high-quality connection for industrial automation and control systems.
