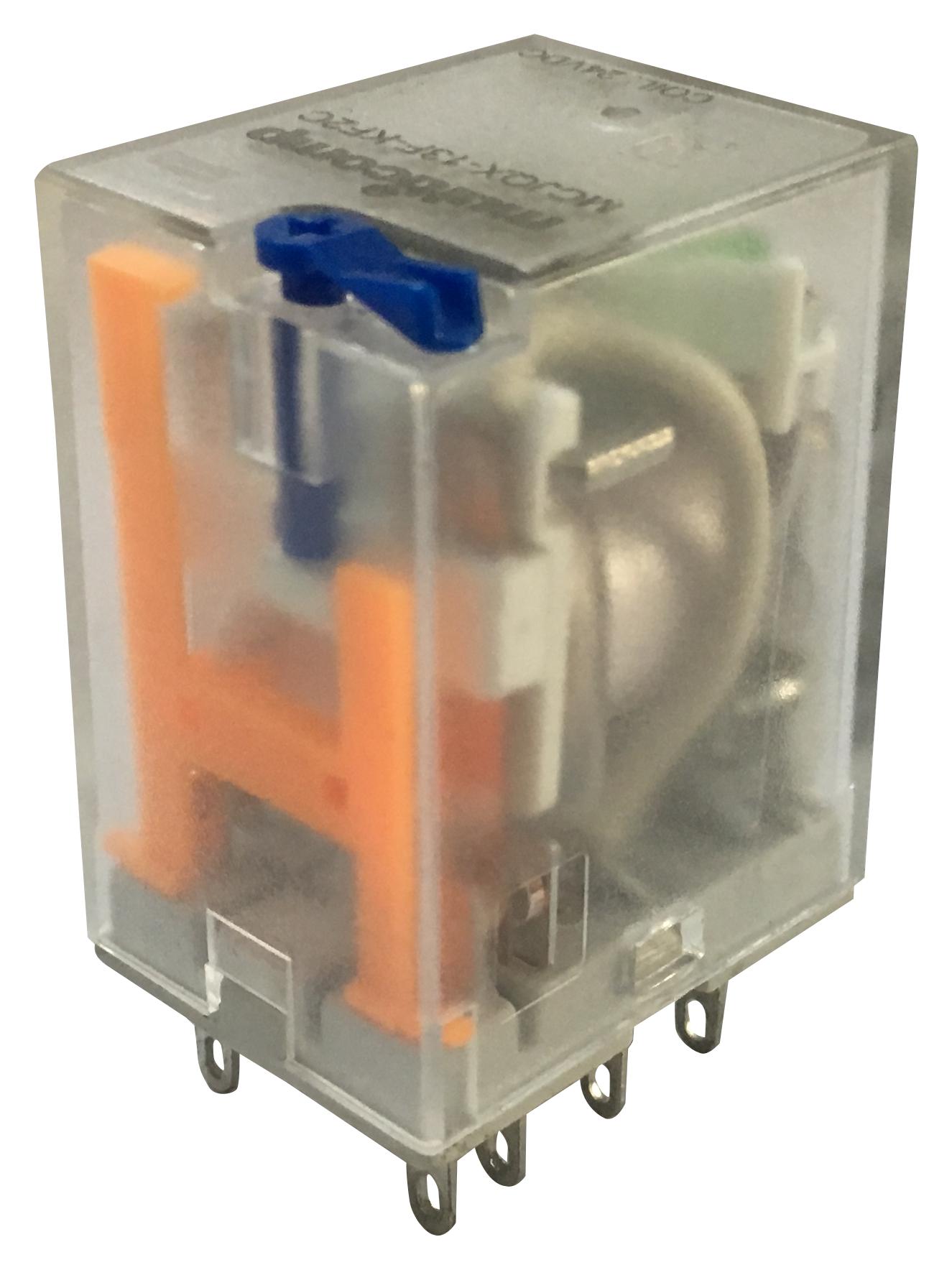

MULTICOMP MCJQX13FKF2C230VAC Power Relay
The multicomp power relay offers high switching power and sensitivity with compact size, featuring 2 change and 4 change contact forms, rated load capacities up to 10A at 250V AC, and resistive loads of 2500VA. It has a coil power of 0.9W, operates within -55°C to +70°C, and includes plug-in or PCB terminals for easy installation. This relay is suitable for industrial automation, control systems, and switching applications requiring reliable performance, high dielectric strength, and long electrical life, making it an essential component in modern electrical and electronic systems.
MULTICOMP MCJQX13FKF2C230VAC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 10A/250V AC, 5A/250V DC, 30V DC
- Rated Load: Motor AC-15: 1/3HP, 120V AC; 1/2HP, 240V AC; 1/6HP, 240V AC
- Contact Operating Power: 2500VA, 300W, 1250VA, 150W
- Contact Resistance: <50mQ
- Material: Ag alloy
- Electrical Life: >10^6 Cycles
- Mechanical Life: 2×10^7 Cycles
- Operate Voltage (25°C): DC <75% Rated, AC <80% Rated
- Release Voltage (25°C): DC 210% Rated, AC 230% Rated
- Max. Allowed Voltage: 110% Rated
- Insulation Resistance: 2500MQ (500V DC)
- Coil Power: 0.9W, AC Consumption: 1.2 VA
- Operate Time: <20ms, Release Time: <20ms
- Dielectric Strength: Contacts 1000V AC/1 min, Contacts & Coil 2000V AC/1 min
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G, Vibration Resistance: 10–55Hz, 1mm amplitude
- Installation: Plug-in Terminal / PCB Terminal
- Weight: 35g
Buy the Multicomp Series Power Relay: MCJQX13FKF2C230VAC
Purchase the multicomp power relay MCJQX13FKF2C230VAC online today to experience dependable switching performance for industrial automation and control systems. This high-quality relay features 2C contact form rated at 10A/250V AC, with resistive loads up to 2500VA and a coil power of just 0.9W. Suitable for a wide temperature range, it offers quick operate and release times of less than 20ms, excellent dielectric strength, and easy installation via plug-in or PCB terminals. Ensure your projects run smoothly with this durable, reliable relay.
Order your multicomp Series power relay MCJQX13FKF2C230VAC today and ensure your control systems are powered with reliable, high-quality switching components.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKF2C230VAC?
You can click on the BUY or RFQ button to purchase MCJQX13FKF2C230VAC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKF2C230VAC?
You can download the MCJQX13FKF2C230VAC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKF2C230VAC?
MULTICOMP
