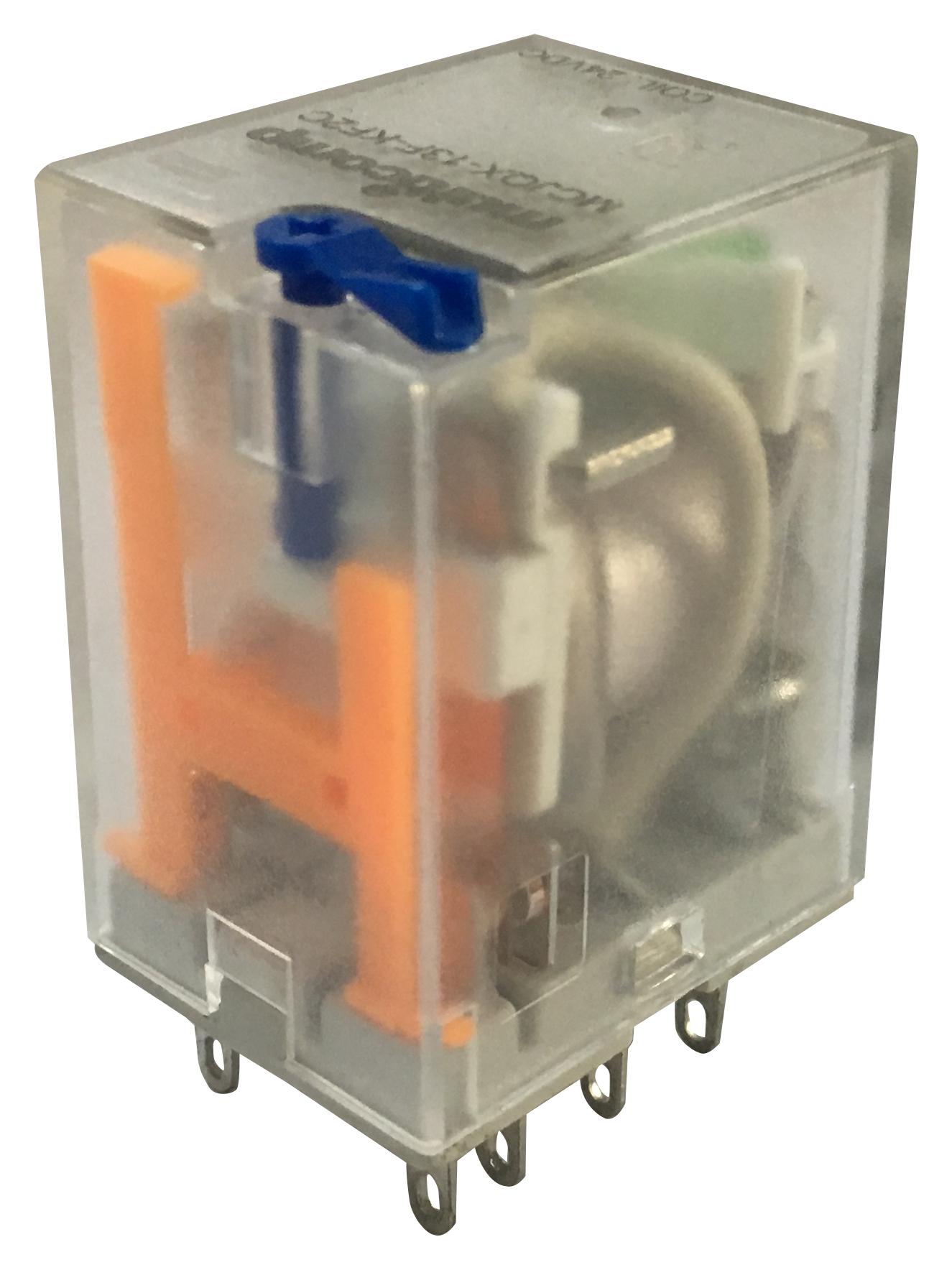

MULTICOMP MCJQX13FKF2C24VDC Power Relay
This power relay from multicomp offers reliable switching for industrial applications, featuring a compact design with high sensitivity and power handling capability. It supports resistive loads up to 10A at 250V AC, with a contact form of 2 Change 4 Change for versatile circuit control. With excellent electrical and mechanical longevity, it includes features like short operate and release times, high dielectric strength, and sturdy insulation resistance. Suitable for automation systems and control panels requiring dependable relay operation, it operates effectively within a wide temperature and humidity range.
MULTICOMP MCJQX13FKF2C24VDC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 10A/250V AC, 5A/250V AC DC
- Motor Load (AC-15): 1/3 HP at 120V, 1/2 HP at 240V, 1/6 HP at 240V
- Contact Operating Power: 2500VA resistive, 300W, 1250VA, 150W
- Contact Resistance: <50mΩ
- Material: Ag alloy
- Electrical Life: > 10^6 cycles
- Mechanical Life: 2 x 10^7 cycles
- Operate Voltage: DC: <75% Rated, AC: <80% Rated at 25°C
- Release Voltage: DC: 210% Rated, AC: 230% Rated at 25°C
- Max Allowed Voltage: 110% Rated at 25°C
- Insulation Resistance: 2500 MΩ (500V DC)
- Coil Power: 0.9 W, AC Consumption: 1.2 VA
- Operate Time: <20 ms, Release Time: <20 ms
- Between Contacts Dielectric Strength: 1000V AC/1 min
- Between Contact and Coil Dielectric Strength: 2000V AC/1 min
- Ambient Temperature Range: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G, 11ms sine wave
- Vibration Resistance: 10-55Hz, 1mm amplitude
- Install Type: Plug-in terminals or PCB terminals
- Weight: 35g
Buy the multicomp MCJQX-13F-KFAC-2XXX – Reliable Power Relay for Industrial Applications
Order the multicomp power relay MCJQX-13F-KFAC-2XXX online today for dependable performance in industrial automation. This compact relay offers high sensitivity, a 10A load capacity, and robust electrical and mechanical lifespan. With versatile contact configurations and tight electrical specifications, it ensures reliable circuit control across a wide temperature and humidity range. Perfect for control panels, automation, and equipment requiring quick switching and long-term durability, this relay guarantees efficient operation in demanding environments. Upgrade your systems with confidence.
Buy multicomp MCJQX-13F-KFAC-2XXX now and experience unmatched reliability and high switching power for industrial automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKF2C24VDC?
You can click on the BUY or RFQ button to purchase MCJQX13FKF2C24VDC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKF2C24VDC?
You can download the MCJQX13FKF2C24VDC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKF2C24VDC?
MULTICOMP
