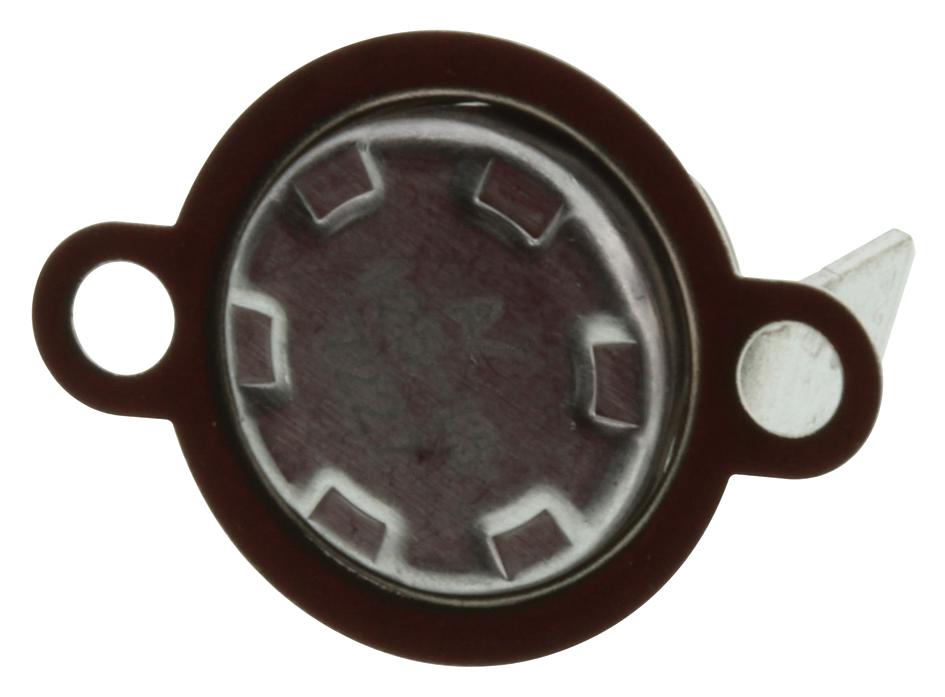

MULTICOMP T23A125BSR215 Thermal Switch
The T23A125BSR2-15 thermal switch is a reliable automation component with SPST-NC configuration and quick connect terminals, suitable for sensing and instrumentation. It features dielectric strength of 1000VAC for at least a minute and an insulation resistance exceeding 100 megaohms between non-live metal parts and terminals, ensuring safety and durability. With operation temperature fixed in a range of 50°C to 205°C, it includes adjustable reset and differential temperature settings, and resistivity up to 240°C, making it ideal for temperature control in various industrial applications, ensuring dependable performance over 100,000 cycles.
MULTICOMP T23A125BSR215 Thermal Switch Specifications:
- Operation Temperature Range: 50°C to 205°C
- Reset Temperature: -6°C, adjustable to +4°C
- Differential: 10°C to 30°C
- Heat Resistivity: 240°C
- Electrical Rating: 15A 125V AC, 10A 250V AC
- Contact Resistance: 50mΩ or less
- Dielectric Strength: 1000VAC for one minute
- Insulation Resistance: 100MΩ or more
- Operating Life: 100,000 cycles
- Temperature Tolerance: ±5°C (standard), ±3°C available
- Configuration: SPST-NC with quick connect terminals
Buy the Multicomp Series T23 Thermal Switch: T23A125BSR2-15
Purchase the Multicomp Series T23A125BSR2-15 thermal switch online and enhance your industrial temperature sensing systems. This dependable device features SPST-NC contact configuration, quick connect terminals, dielectric strength of 1000VAC, and insulation resistance exceeding 100 megaohms, ensuring safety and longevity. Suitable for a wide range of applications, it operates within a temperature range of 50°C to 205°C, with adjustable reset and differential settings. Buy now for reliable, long-lasting performance in temperature control projects.
Order your Multicomp Series T23A125BSR2-15 thermal switch today and ensure precise temperature control with reliable electrical performance.
