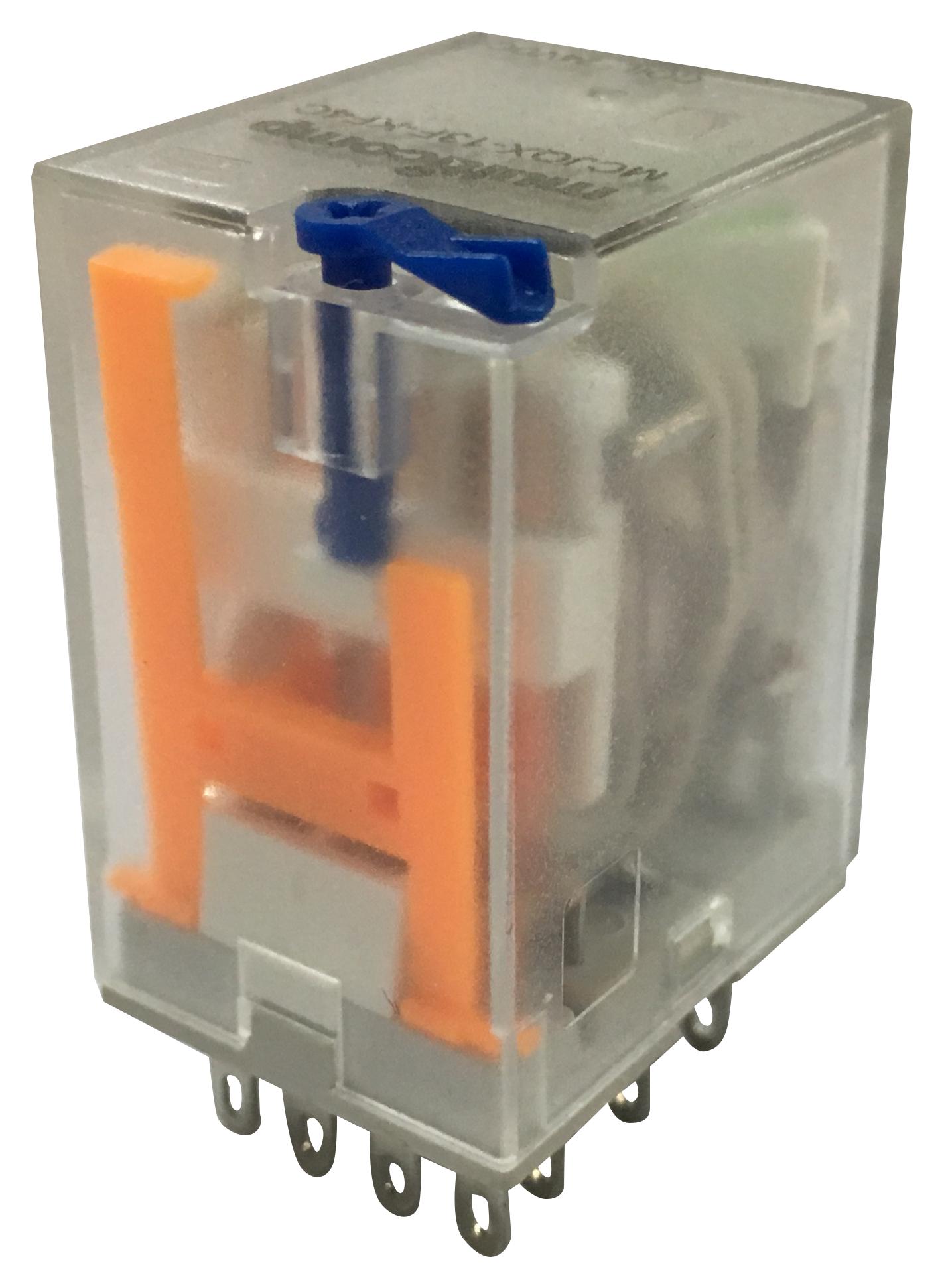

MULTICOMP MCJQX13FKF4C110VAC Industrial Power Relay
This power relay features a compact size, high switching power, and high sensitivity, suitable for industrial automation, control systems, and motor loads. It offers 2 C (change-over) contacts with resistive load capacities of 10A/250V AC and 5A/250V AC, with a coil power consumption of 0.9W and operate time under 20ms. The relay has a dielectric strength of 1,000V AC for contact-to-contact insulation, enhanced with UL ratings, and operates reliably between -55°C and +70°C. Ideal for demanding electrical switching applications requiring durability and precision.
MULTICOMP MCJQX13FKF4C110VAC Industrial Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 10A/250V AC, 5A/250V AC
- Motor Load (AC-15): 1/3HP, 120V AC; 1/2HP, 240V AC
- Contact Operating Power: 2500VA, 300W
- Contact Resistance (Initial): <50mΩ
- Electrical Life: >10^6 Cycles
- Mechanical Life: 2×10^7 Cycles
- Operate Voltage: DC:<75% Rated, AC:<80% Rated
- Release Voltage: DC: 210% Rated, AC: 230% Rated
- Max. Allowed Voltage: 110% Rated
- Insulation Resistance: 2500MΩ (500V DC)
- Coil Power Consumption: 0.9W
- Coil Resistance: 24V DC: 630Ω; 24V AC: 160Ω; 110V AC: 3750Ω; 230V AC: 15000Ω
- Operate Time: <20ms
- Release Time: <20ms
- Leakage Current: 1mA at 1,000V AC (contacts), 2,000V AC (coil to contact)
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% to 85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10-55Hz, 1mm amplitude
- Installation: Plug-in/PCB terminals
- Weight: 35g
Buy the multicomp MCJQX-13F-KF4C110VAC – Reliable Industrial Power Relay for Automation
Purchase the multicomp MCJQX-13F-KF4C110VAC relay online now to enhance your control systems with its fast switching, high load capacity, and robust design. Ideal for industrial automation requiring reliable relay operation, this switch supports resistive loads up to 10A/250V AC and features quick response times of less than 20ms. Its compact size and high sensitivity make it suitable for various electrical control applications, ensuring seamless operation, durability, and safety in demanding environments. Order now for quick delivery and superior quality.
Order your multicomp MCJQX-13F-KF4C110VAC power relay today and ensure dependable operation in your industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKF4C110VAC?
You can click on the BUY or RFQ button to purchase MCJQX13FKF4C110VAC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKF4C110VAC?
You can download the MCJQX13FKF4C110VAC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKF4C110VAC?
MULTICOMP
