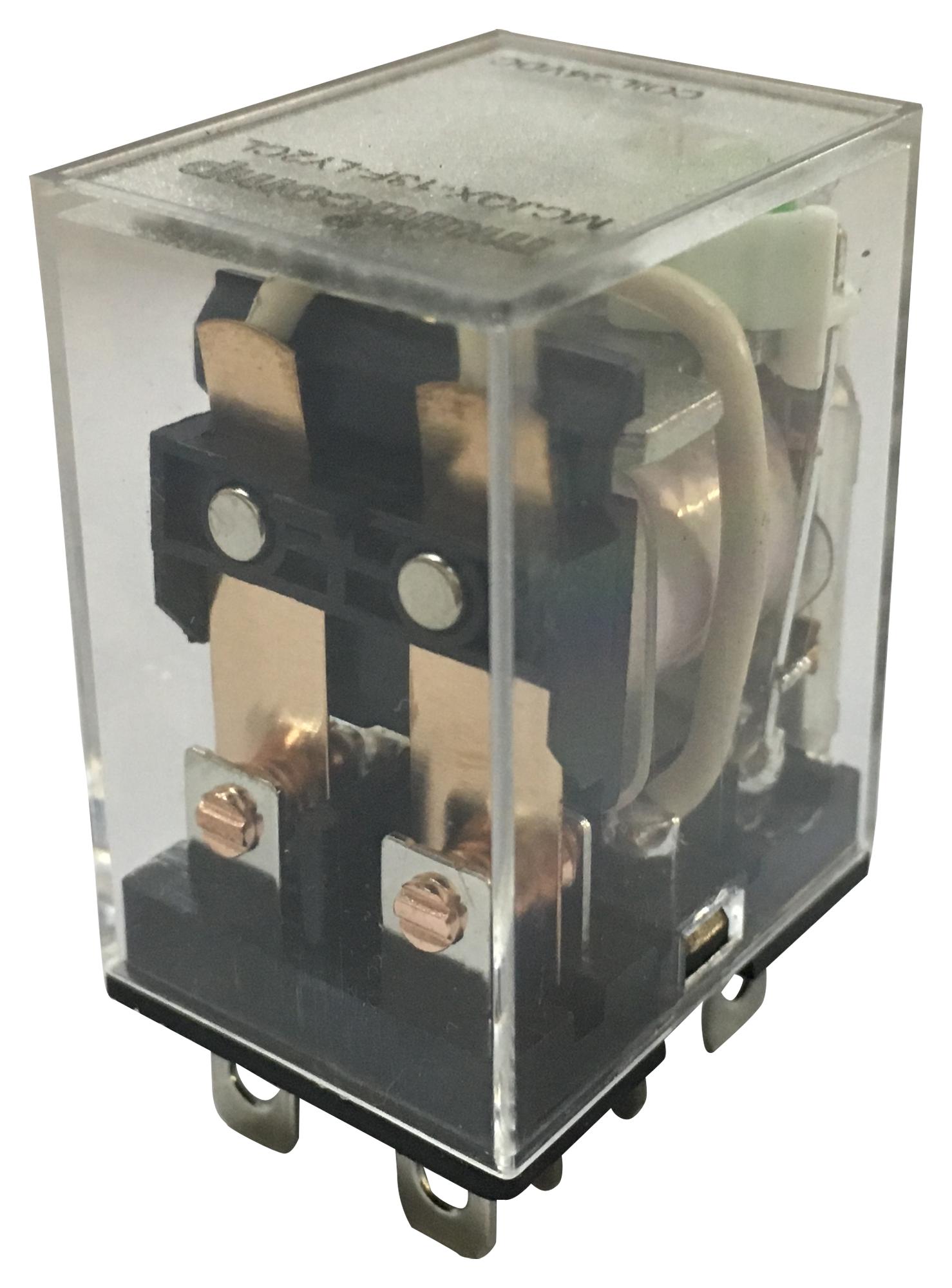

MULTICOMP MCJQX13FLY2CL24VAC Power Relay
This power relay with LED indicator from multicomp offers high switching power and sensitivity in a compact size, suitable for controlling resistive loads up to 10A at 250V AC or 30V DC. It features two change contact form, making it ideal for various automation and control applications. The relay provides reliable operation with low operate and release times under 20ms, excellent dielectric strength, and high insulation resistance. Its durable design supports mechanical life cycles exceeding 20,000 operations. Compatibility with plug-in terminals and PCB mounting enhances installation flexibility. Suitable for industrial control systems and automation projects demanding efficiency and reliability.
MULTICOMP MCJQX13FLY2CL24VAC Power Relay Specifications:
- Contact Form: 2 Change
- Rated Load: Motor AC-15 120V AC 1/2HP, 240V AC; Resistive AC-1 10A/250V AC; 30V DC
- Contact Resistance: <650mΩ
- Material: Silver Alloy
- Electrical Life: > 100,000 cycles
- Mechanical Life: 20,000 cycles
- Operate Voltage (at 25°C): DC <75% Rated Voltage, AC <80% Rated Voltage
- Release Voltage (at 25°C): DC 210% Rated Voltage, AC 230% Rated Voltage
- Max Allowed Voltage: 110% Rated Voltage
- Insulation Resistance: 2500MΩ (500V DC)
- Coil Power DC: 14W; AC: 2VA
- Operate Time: <20ms; Release Time: <20ms
- Between Contacts: 1000V AC/1 min, Leakage 1mA
- Between Contact and Coil: 2000V AC/1 min, Leakage 1mA
- Ambient Temperature: -25°C to +55°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10-55Hz, Amplitude 1mm
- Install Model: Plug-in Terminals/PCB Terminal
- Weight: 50g
Buy the Buy multicomp Power Relay with LED Part Number MCJQX-13F-LY2CL-24VAC Online
Order the multicomp Power Relay with LED indicator today for reliable control in industrial automation applications. Designed for high switching power and fast response times, this relay offers durability with a mechanical lifecycle exceeding 20,000 cycles. Its compact size features plug-in terminals or PCB mounting options for versatile installation. With excellent dielectric strength, insulation resistance, and rated loads up to 10A at 250V AC, it ensures dependable operation in demanding environments. Perfect for automation, motor control, and industrial switching solutions—experience efficiency and longevity with this high-performance relay.
Get multicomp MCJQX-13F-LY2CL-24VAC today—built for precision and long-lasting durability.
