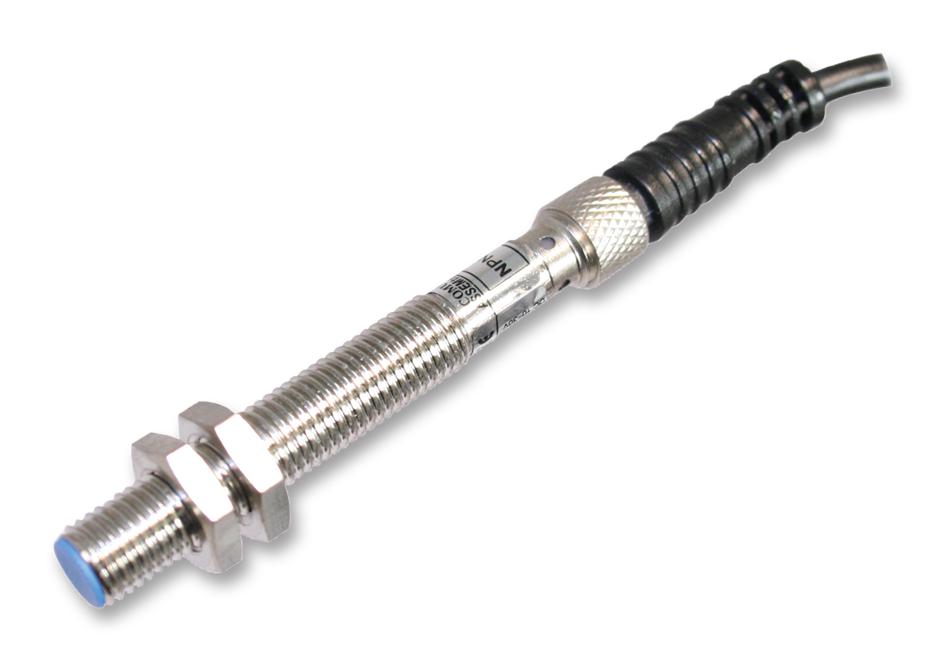

MULTICOMP MCPIPT8L101 Inductive Metal Sensor
The inductive sensor with M8 long housing is designed for reliable metal detection in industrial applications. It features a cylindrical shape, 8mm diameter, and operates with a DC 3-wire connection compatible with 10-30V DC power supply. The sensor has a shielded mounting distance of 1mm, sensing range up to 0.9mm, and is suitable for detecting ferrous metals. It boasts a robust IP67 water-resistant protection rating, over-current protection, and operates efficiently across temperatures from -20°C to +70°C. Ideal for measuring, counting, and RPM detection in manufacturing environments, its brass chrome-plated body ensures durability against water, oil, acids, and alkaline substances.
MULTICOMP MCPIPT8L101 Inductive Metal Sensor Specifications:
- Sensing Distance: 0...0.9mm shielded
- Mounting Distance: 1mm shielded
- Power Supply: 10...30VDC
- Current Output: 200mA
- Frequency: 1.5kHz to 2kHz
- Ambient Temperature: -20°C to +70°C
- Protection: IP67 water-resistant, over-current, short circuit protected
- Connection Type: 3-wire or 3-pin connector
- Material: Brass chrome-plated
- Application: Metal detection, counting, RPM measurement
- Water Resistance: Suitable for harsh environments
- Sensor Style: Cylindrical, diameter 8mm
- Protection Rate: IP67
- Against Polarity Reversal: Yes
Buy the Farnell MCPIPT8L101 – Reliable Metal Detection Sensor for Industrial Applications
Purchase the inductive metal sensor online today and enhance your industrial automation projects. With an IP67 rating and reliable ferrous metal detection up to 0.9mm, this sensor ensures durability and precision. Its brass chrome-plated body resists water, oil, and chemicals, making it suitable for harsh environments. Compatible with 10-30V DC power supply, it features over-current and short circuit protection. Ideal for measurement, counting, and RPM detection in manufacturing, its compact cylindrical design fits easily into various setups. Order now for fast, reliable delivery and improve your system's reliability.
Get Farnell MCPIPT8L101 today—built for precise metal detection and durable performance in demanding environments.
