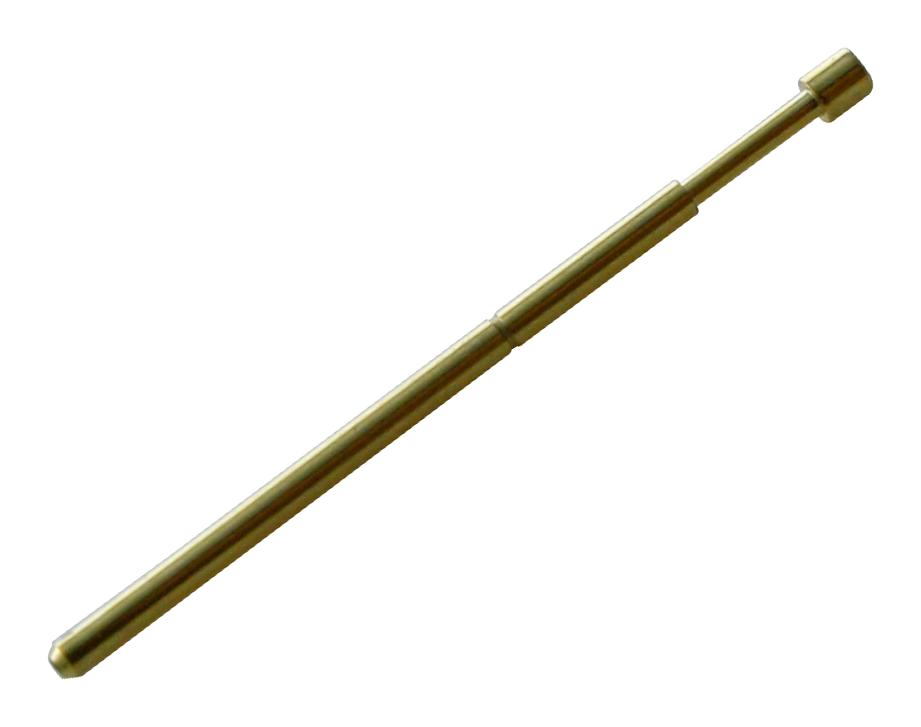

MULTICOMP P50A120G Spring Probe
The P50-A-120-G from Multicomp is a concave spring probe featuring a 1.27mm minimum center spacing and 2.65mm full travel. It is designed with a spring pressure of 120g, a current rating of 3A, and a contact resistance of 50 milliohms. The probe has a mounting hole size of 0.9mm and uses a spring probe connector type. Made from gold over nickel-plated full hard beryllium copper, it offers a minimum durability of 100,000 cycles. Multicomp products are rated 4.6 out of 5 stars, with a 12-month limited warranty. A high-performance component suitable for various electronic testing and connection applications.
MULTICOMP P50A120G Spring Probe Specifications:
- Material: Full-hard beryllium copper, gold-plated over nickel
- Minimum Centre Recommend: 1.27mm
- Full Travel: 2.65mm
- Spring Pressure: 120g
- Current Rating: 3A
- Contact Resistance: 50mΩ
- Mounting Hole Size: 0.9mm
- Minimum Durability: 100,000 cycles
- Connector Type: Spring Probe
- Series: P50
Buy the Buy Multicomp Spring Probe Part Number P50A120G Online
Purchase the Multicomp P50A120G spring probe today online and experience high performance with a durable design. Perfect for electronic testing, the probe features a 1.27mm spacing, 2.65mm travel, and a 3A current rating. Made from gold over nickel-plated beryllium copper, it ensures reliable contact with minimal resistance. Designed for durability, it withstands over 100,000 cycles, making it ideal for professional testing environments and manufacturing. Buy now for quick delivery and trusted quality.
Get Multicomp P50A120G spring probe today—engineered for precision, durability, and reliable electronic connections.
