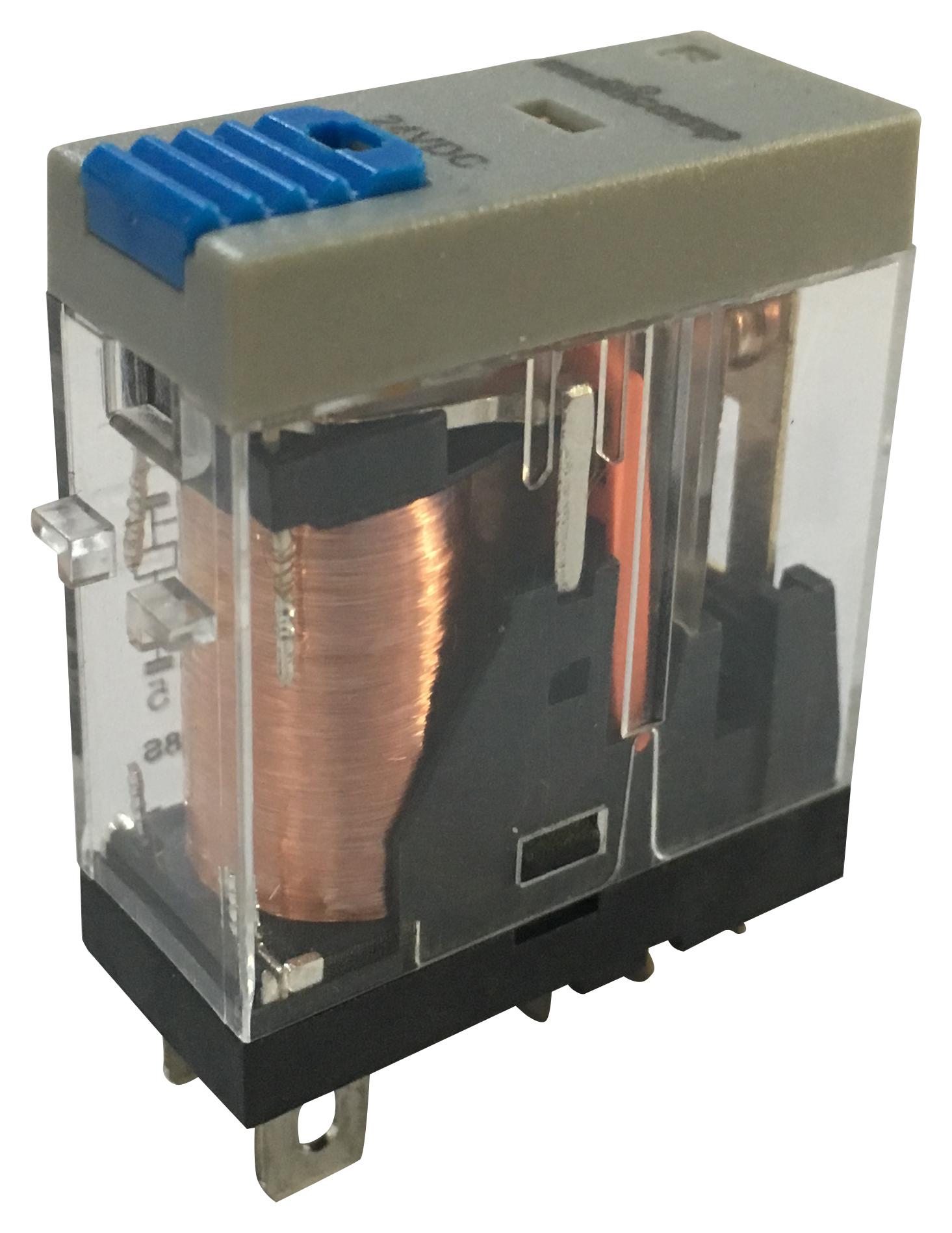

MULTICOMP MCRFT1CO024LT Industrial Interface Relay
The relay offers a compact design with a lockable test button and integrated LED indicator. Rated for 12A at 250V AC resistive load and 30V DC, it features high dielectric strength, quick operation times, and a wide temperature range from -40°C to +55°C. Suitable for industrial automation, testing, and control applications, it has a reliable construction with Ag alloy contacts and safety certifications. The relay is available in various coil voltage options and provides durable mechanical and electrical life suitable for demanding environments.
MULTICOMP MCRFT1CO024LT Industrial Interface Relay Specifications:
- Rated current: 12A at 250V AC resistive load, 30V DC
- Rated voltage: AC 24V, 115V, 230V; DC 24V
- Contact material: Silver alloy
- Electrical life: > 10^6 cycles
- Mechanical life: > 10^7 cycles
- Operating time: <20ms
- Drop-out voltage: 230% rated voltage (AC), 210% rated voltage (DC)
- Insulation resistance: 21000MQ at 500V DC
- Dielectric strength between contacts: 3000V AC/1 min
- Ambient temperature: -40°C to +55°C
- Humidity: 5% RH to 85% RH
- Shock resistance: 10G
- Vibration resistance: 10~55Hz, dual amplitude 1mm
- Mounting: Plug-in
- Weight: Approx. 20g
Buy the Multicomp MCRFT1CO024LT – Reliable Industrial Interface Relay for Automation
Order the Multicomp MCRFT1CO024LT relay online today for high-quality performance and reliable operation in industrial automation, control, and testing environments. This compact relay features a lock test button, LED indicator, and durability suitable for demanding applications. With a rated current of 12A at 250V AC and multiple coil voltage options, it ensures seamless switching capacity and long electrical life. Buy now to enhance your control systems with proven reliability, safety features, and easy installation—perfect for manufacturing, automation, and testing tasks.
Get Multicomp MCRFT1CO024LT today—built for precision, durability, and seamless control in industrial and testing applications.
