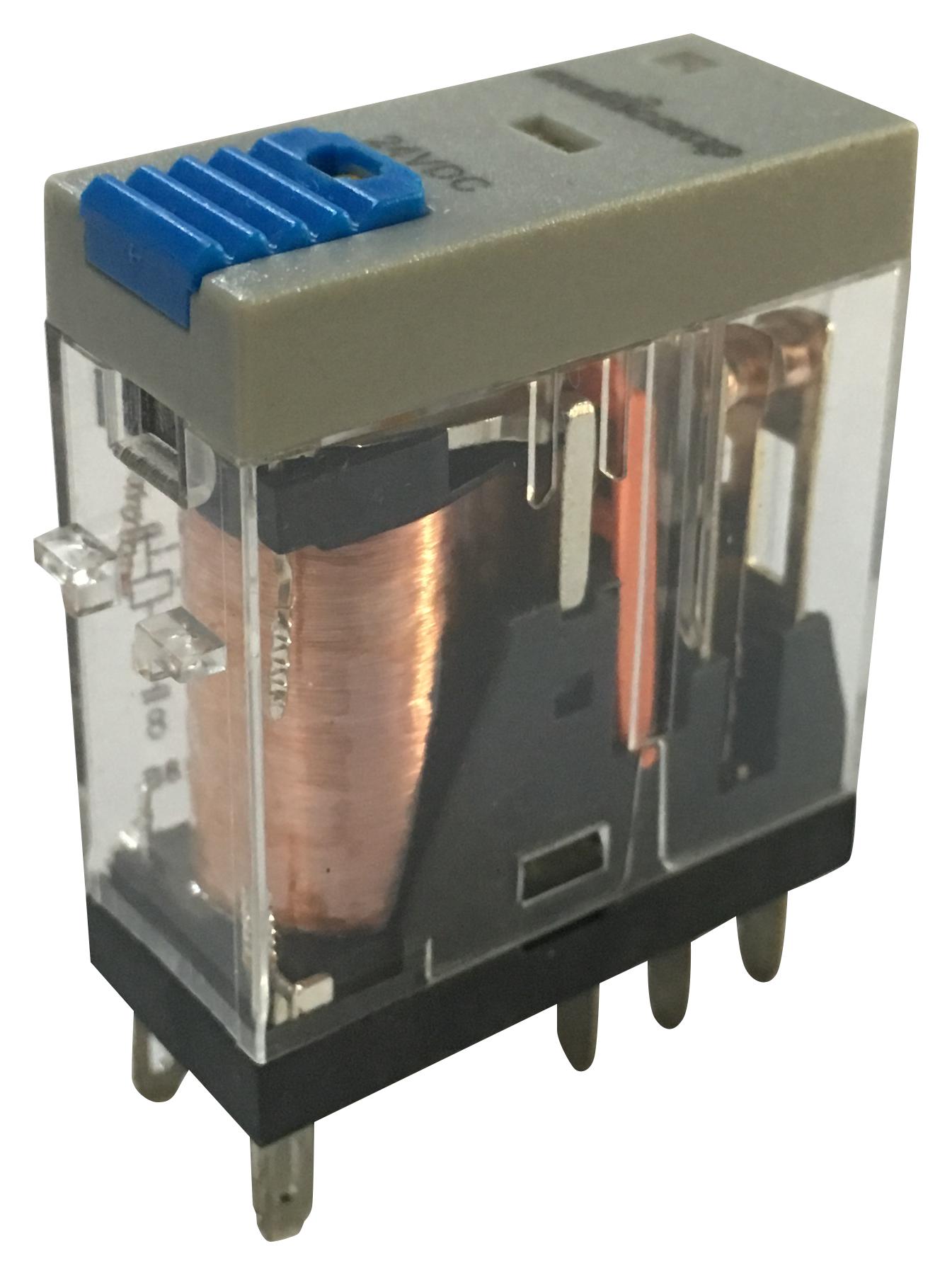

MULTICOMP MCRFT2CO615LT Interface Relay
The multicomp RFT Interface Relay with Lock Test Button is a compact, high-quality control component designed for automation and switching applications. It features 1 or 2 poles, with resistive load ratings up to 12A at 250V AC and 8A at 30V DC. The relay includes an integrated non-polarity LED indicator, lockable test button, inspection window, and coil options for both AC and DC voltages. Its durable construction supports over 10^8 electrical cycles, ensuring long-lasting reliability in industrial control systems.
MULTICOMP MCRFT2CO615LT Interface Relay Specifications:
- Type: Interface Relay with Lock Test Button
- Poles: 1 or 2
- Resistive Load Rating: 12A at 250V AC, 8A at 30V DC
- Switching Capacity (Resistive): 3000VA at 250V AC, 360W
- Initial Contact Resistance: <50mΩ
- Coil Voltage (V.DC): 24V, 115V, 230V, Resistance: 1100Ω, 240Ω, 23000Ω
- Coil Resistance Tolerance: ±10% for voltages under 110V, ±15% above 110V
- Operate Time: <20ms, Release Time: <10ms
- Dielectric Strength Between contacts: 1,000V AC/1min
- Between poles: 3,000V AC/1min
- Insulation Resistance: 21000MΩ at 500V DC
- Ambient Temperature Range: -40°C to +55°C
- Mounting: Plug-in
- Dimensions: approximately 29mm x 20mm x 13mm
- Material: Ag alloy contacts, RoHS compliant
- Vibration Resistance: 10-55Hz, 1mm dual amplitude
- Shock Resistance: 10G
Buy the Buy multicomp Interface Relay Part Number MCRFT2CO615LT Online
Order the multicomp Interface Relay MCRFT2CO615LT online today and enhance your automation systems with a reliable relay featuring lockable test button, LED indicators, high load capacity, and long electrical life. Ideal for industrial controls, it ensures seamless switching performance, durability, and safety. Its compact design fits easily into control panels, making it perfect for various automation tasks. Buy now to ensure fast delivery and improve your system’s reliability with a trusted control component designed for long-term use.
Get multicomp MCRFT2CO615LT today—designed for reliability and precision in industrial automation and control applications.
