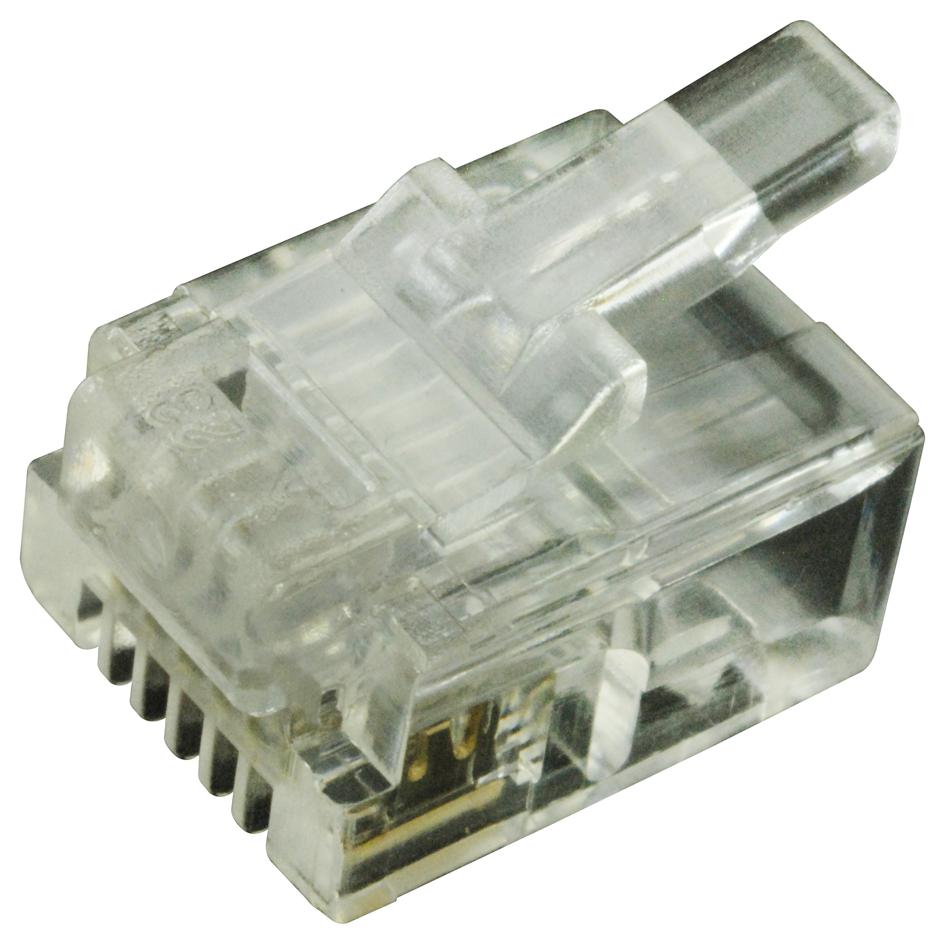

MULTICOMP MTP66US Modular Telephone Connector
The MTP-66-U-S is a durable 6P6C modular telephone plug with gold-plated copper alloy contacts, polycarbonate insulator, and rated for industrial phone and communication systems. This 1-port RJ12 connector operates at a maximum voltage of 150V AC and a current of 1.5A. It features a contact resistance of 20mΩ and insulation resistance of 500MΩ at 500V DC. Designed for reliable performance in various environments, it is lead-free, environmentally friendly, with a dielectric withstand voltage of 1,000V AC for 1 minute, making it ideal for professional telecommunications and industrial wiring setups.
MULTICOMP MTP66US Modular Telephone Connector Specifications:
- Material: Insulator polycarbonate, Contacts copper alloy
- Plating: 15" gold over nickel underplate, Grade C on contact area over 50" Nickel underplate, gold flash on balance
- Electrical: Operating Voltage 150V AC Max., Current Rating 1.5A Max., Contact Resistance 20mΩ Max., insulation resistance 500MΩ Min. @ 500V DC, Dielectric withstand voltage 1,000V AC for 1 minute
- Environmental: Lead free, suitable for industrial environments
- Dimensions: Not specified in original text, designed for standard modular telephone applications
Buy the Multicomp Series Modular Telephone Plug: MTP66US
Order the Multicomp Modular Telephone Connector MTP66US online today to ensure reliable, high-quality connections in your telecommunication and industrial wiring projects. Featuring durable gold-plated contacts, polycarbonate insulation, and rated for 150V AC and 1.5A, this plug guarantees excellent performance under demanding conditions. Its environmentally friendly, lead-free construction makes it suitable for various industrial applications. With quick online purchase options, you will enjoy professional-grade components with dependable contact resistance, insulation resistance, and dielectric withstand voltage, enhancing your system’s overall reliability and efficiency.
Buy Multicomp MTP66US now and experience reliable connectivity and professional-grade performance for your communication setups.
Frequently Asked Questions
Where can I buy MULTICOMP MTP66US?
You can click on the BUY or RFQ button to purchase MTP66US from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MTP66US?
You can download the MTP66US datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MTP66US?
MULTICOMP
