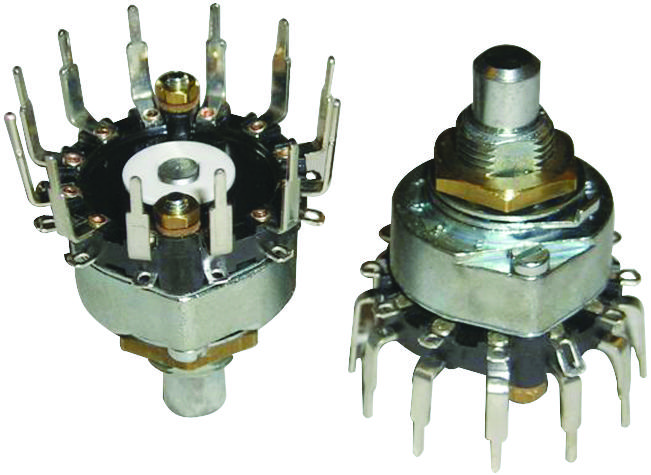

MULTICOMP RA01D03BSFMSOX industrial rotary switch
The RA01D03BSFMSOX is a four-pole, three-position rotary switch designed for industrial applications. It features solder clip terminals, 30° indexing, and break-before-make circuitry for reliable switching. Crafted with gold flash plated brass contacts and a bright zinc-plated zinc alloy housing, it offers durability and excellent electrical performance. The switch includes an adjustable stop to limit the number of positions, a 25.4mm diameter, and uses standard self-stacking wafers. Its M10 x 0.75 spindle and bush provide secure mounting while ensuring consistent operation.
MULTICOMP RA01D03BSFMSOX industrial rotary switch Specifications:
- Switch Rating: 150 mA at 250 V ac / de, 350 mA at 110 V ac / de, 1 A at 12 V ac / dc
- Life: >10,000 Cycles
- Operating Temperature: 2-30 °C to +85 °C
- Proof Voltage: 1,000 V ac (Initial)
- Insulation Resistance: >999 MΩ at 500 V dc (Initial)
- Contact Resistance: >20 mΩ (Initial)
- Operating Torque (Nominal): 7.2 cNm
- End Stop Torque (Nominal): 1.2 Nm
- Housing Material: Zinc Alloy Bright Zinc Plated
- Contact Material: Brass CZ108, Silver Plated
- Spindle Diameter: 6 mm
- Spindle Length: 50 mm
- Spindle Bush Length: 5 mm
- Mounting Face: 4 mm
- Terminals: Solder clips
- Versatile indexing options: 30°, 45°, 60°, 90°
- Special options include gold flashed contacts, rotary mains switch, insulated drive shafts, and spindles with flats or slots
Buy the Multicomp RA01D03BSFMSOX – Reliable Industrial Rotary Switch for Applications
Purchase the multicomp RA series rotary switch online now to secure reliable switching and durable construction for your industrial projects. Equipped with gold flash contacts, adjustable stops, and versatile indexing, this switch is ideal for controlling electrical circuits in demanding environments. Its 25.4mm diameter, M10 x 0.75 spindle, and self-stacking wafers ensure easy installation and long-term operation. Enhance your equipment with this high-performance switch, ordered conveniently online for fast delivery and consistent quality assurance.
Order your multicomp RA01D03BSFMSOX rotary switch today and ensure your industrial projects benefit from dependable, high-quality switching performance.
