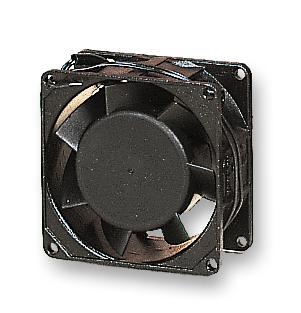

MULTICOMP SF11580A1083HSLGN Axial Flow Fan
The product is a compact and efficient axial flow fan designed for cooling and ventilation applications. It features a slimline construction with high performance, low noise, and reliability. Available in various sizes including 80mm, 92mm, and 119mm with options for standard or low noise versions. It employs reliable ball bearing or sleeve bearing systems, with aluminum or thermoplastic housings for moisture resistance. Suitable for 115V or 230V AC power supply, it offers long service life exceeding 30,000 hours at 55°C, making it ideal for industrial and electronic cooling systems.
MULTICOMP SF11580A1083HSLGN Axial Flow Fan Specifications:
- Dimensions: 80 x 80 x 25mm or 92 x 92 x 25mm or 119 x 119 x 38mm
- Voltage: 115V or 230V AC, range from 85V to 125V (115V) and 185V to 245V (230V)
- Power Consumption: 11W to 20W depending on size and variant
- Speed: 2150 to 2900 RPM depending on model
- Air Flow: 14.1 to 78 CFM (cubic feet per minute), 10.3 to 36.7 m³/h
- Static Pressure: 0.12 to 0.30 inch-H2O
- Bearings: Sleeve or ball bearing types
- Housing Material: Aluminum or thermoplastic with moisture and corrosion resistance
- Noise Levels: 34 to 50 dBA at 1 meter distance
- Service Life: Exceeds 30,000 hours at 55°C operating temperature
- Insulation Resistance: 500 MΩ minimum at 500V DC
- Dielectric Strength: 1500V AC for one minute
- Temperature Range: -10°C to +70°C (operating), -40°C to +80°C (storage)
Buy the Multicomp Series Axial Flow Fan: SF11580A1083HSLGN
Enhance your cooling systems with the high-performance, reliable axial flow fan from Multicomp. This compact fan features low noise operation, durable bearings, and versatile sizes suitable for various industrial and electronics cooling applications. Designed with moisture-resistant housing and long service life exceeding 30,000 hours, it ensures consistent performance in demanding environments. Available for 115V or 230V AC power, this fan provides efficient airflow, static pressure, and excellent reliability, making it the ideal choice for your ventilation needs. Purchase online today for fast delivery and quality assurance.
Get Multicomp SF11580A1083HSLGN today—built for reliable cooling with high efficiency and long-lasting durability.
