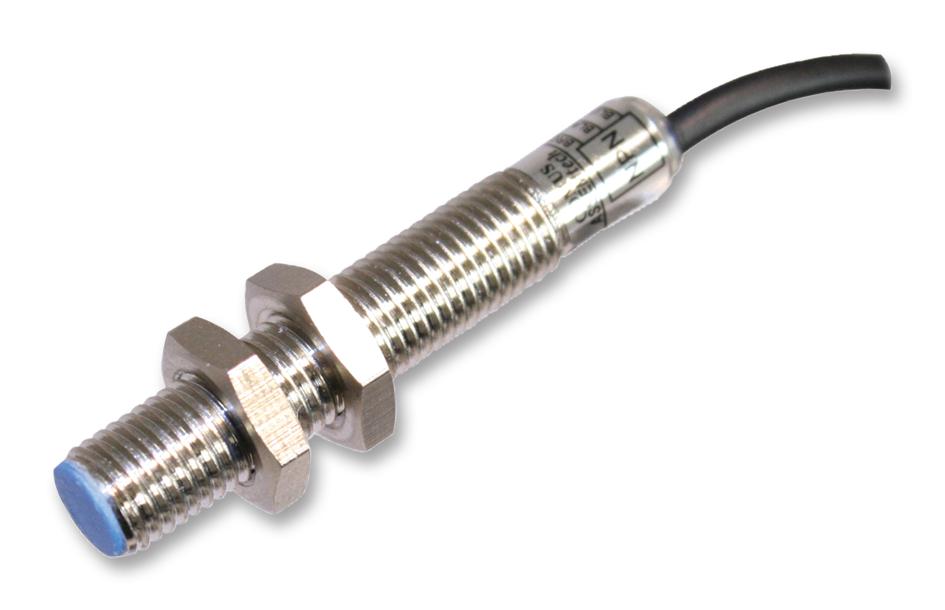

MULTICOMP MCPIPT8L001 Inductive Sensor
The inductive sensor features an M8 long housing with a cylinder shape and 8mm diameter, designed for precise detection of ferrous metals. It operates with a 10-30V DC power supply and provides a current output of 200mA. The sensor offers a sensing distance of 0 to 0.9mm (shielded) and includes an LED indicator for operation status. Its robust brass construction is chrome-plated, water and oil resistant, with an IP67 protection rating, making it suitable for industrial measurement, counting, and RPM applications across diverse environments.
MULTICOMP MCPIPT8L001 Inductive Sensor Specifications:
- Mounting Distance: 1mm shielded
- Sensing Distance: 0...0.9mm shielded
- Power Supply: 10...30V DC
- Current Output: 200mA
- Frequency: 1.5kHz to 2kHz
- Ambient Temperature: -20°C to +70°C
- Protection Rate: IP67, water and oil resistant
- Construction Material: Brass chrome plated
- Connection Mode: 3 wire or 3 pin connector
- Operation Indicator: LED
- Against Polarity Reversal: Yes
- Short Circuit Protected: Yes
Buy the Industrial Inductive Sensors Series MCPIP T8L: MCPIPT8L001
Purchase the Premier Farnell Series MCPIP T8L inductive sensor online today and benefit from dependable ferrous metal detection. Featuring an M8 long housing, 8mm diameter, IP67 water and oil resistant design, and operating at 10-30V DC, this sensor ensures precise and reliable performance in industrial environments. Its shielded sensing distance of 0-0.9mm and LED indicator make installation and operation simple. Suitable for measuring, counting, and RPM monitoring, this sensor provides durability and efficiency for diverse manufacturing and industrial needs.
Order your Premier Farnell Series MCPIP T8L inductive sensor today and ensure reliable detection for your industrial applications with long-lasting performance.
