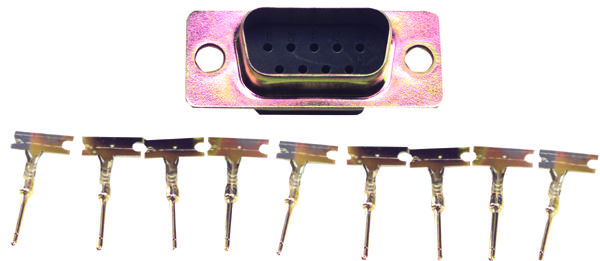

MULTICOMP SPC15389 9-Way D-Sub Connector
The SPC15389 is a durable 9-way D-sub connector with gold-plated brass contacts and a reinforced black PBT housing with 30% glass fiber. Designed for reliable crimp termination, it supports a current of 5A and maintains excellent electrical performance with a maximum contact resistance of 15 milliohms. With insulation resistance of at least 1000 megaohms and operating temperatures from -50°C to +100°C, this connector is ideal for communication and networking applications requiring high durability, low resistance, and dependable performance in rugged environments.
MULTICOMP SPC15389 9-Way D-Sub Connector Specifications:
- Contact Material: Brass, Gold-plated on Contact Area, Nickel-plated on Crimp Area
- Housing: PBT + 30% Fiber Glass, UL 94V-0 Standard, Black
- Current Rating: 5 Amps
- Contact Resistance: 15 Milliohms Max
- Insulation Resistance: 1000 Megohms Min
- Operating Temperature: -50°C to +100°C
- Dimensions and Mechanical: Not specified in OCR, referenced externally for detailed measurements
- Standard Compliance: RoHS
- Crimp Termination: Yes
- Color: Black
- Application: Communications and Networking
- Number of Pins: 9
Buy the SPC Technology SPC15389 – Reliable 9-Way D-Sub Connector for Industrial Applications
Secure your communication and networking setups with the high-quality SPC15389 9-way D-Sub connector. Featuring gold-plated brass contacts, reinforced black PBT housing with 30% glass fiber, and crimp termination for dependable, low-resistance connections. Rated for 5A current with excellent insulation resistance of 1000 megaohms, it operates from -50°C to +100°C, ensuring durability in diverse environments. Perfect for rugged industrial applications, this connector offers longevity, low maintenance, and exceptional electrical performance. Purchase online today for reliable connectivity solutions.
Buy SPC Technology SPC15389 now and experience unmatched reliability and performance in communication and networking systems.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15389?
You can click on the BUY or RFQ button to purchase SPC15389 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15389?
You can download the SPC15389 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15389?
MULTICOMP
