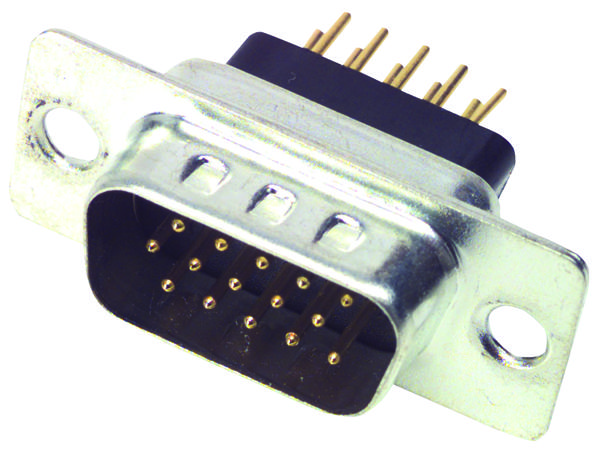

MULTICOMP SPC15402 High-Density D-Sub Connector
The SPC15402 is a high-density D-sub connector with 15 ways, designed for PCB mounting with solder termination. It features machined brass contacts with a gold-flash over nickel plating for excellent conductivity and corrosion resistance. The insulator is made of black PBT reinforced with 30% fiberglass, providing durability and stability in various conditions. Rated for 5A current, it has maximum contact resistance of 15 milliohms and ensures insulation resistance of 1000 megaohms. Operating from -55°C to +100°C, it’s ideal for communications, networking, and industrial applications requiring reliable connection solutions.
MULTICOMP SPC15402 High-Density D-Sub Connector Specifications:
- Shell: Steel, Tin Plated
- Insulator: PBT + 30% Fibre Glass, Black
- Contact: Brass, Machined-pin Gold Plated Over Nickel
- Current Rating: 5A
- Max. Contact Resistance: 15mΩ
- Min. Insulation Resistance: 1000MΩ
- Voltage Rating: 500V AC for 1 minute
- Temperature Range: -55°C to +100°C
- Number of Contacts: 15
- Panel Cutout Dimension: 6.10 mm
- PCB Layout: 12.50 mm spacing
- Dimensions: 6.10 mm panel cutout, 12.50 mm pitch, 2.54 mm and 2.29 mm mounting lengths
Buy the Multicomp Series D-Sub Plug: SPC15402
Order the High-Density D-Sub Connector online today to ensure your projects benefit from reliable, high-quality connections. With a 15-way configuration, gold-flash plated brass contacts, and a durable PBT insulator reinforced with fiberglass, this connector is ideal for industrial, communications, and networking applications. Its PCB mounting design with solder termination allows easy installation, supporting currents up to 5A and ensuring high insulation resistance of 1000 megaohms. Operates efficiently from -55°C to +100°C, providing excellent performance in various environmental conditions. Secure yours today for dependable electronic connectivity.
Buy Multicomp SPC15402 now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15402?
You can click on the BUY or RFQ button to purchase SPC15402 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15402?
You can download the SPC15402 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15402?
MULTICOMP
