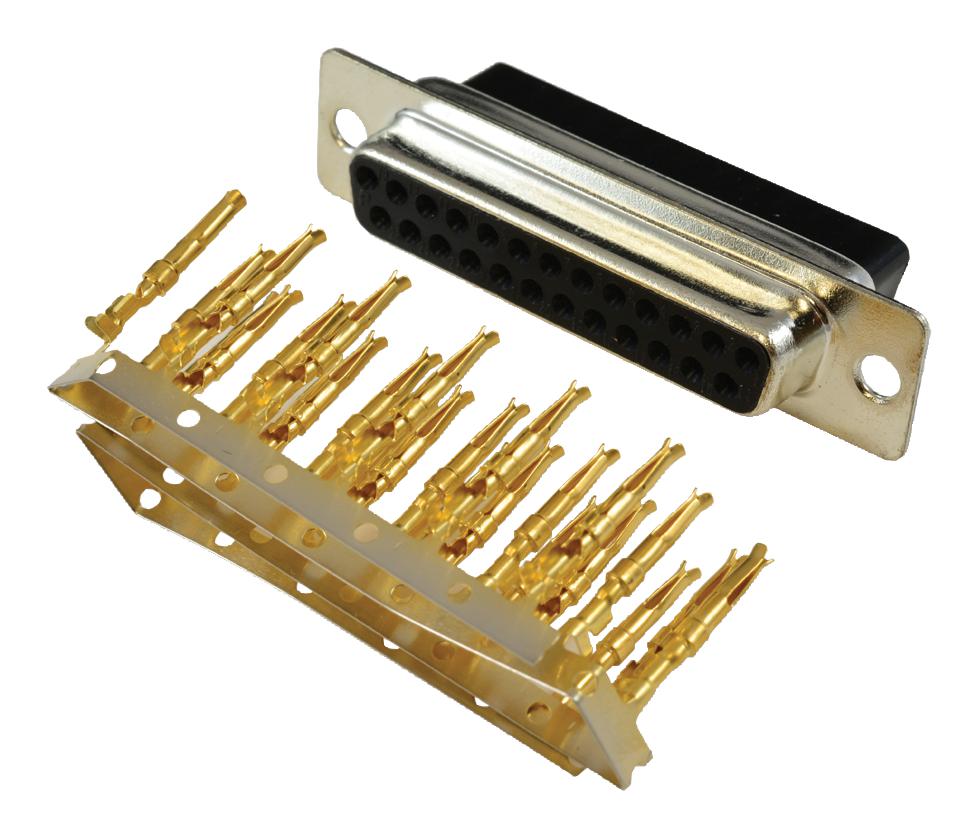

MULTICOMP SPC15404 D-Sub Connector
The SPC15404 is a 25-position D-sub connector featuring a durable tin-plated steel shell and a black glass-filled nylon insulator. Designed with crimp contact termination for secure and reliable connections, it provides a current rating of 5A and a voltage rating of 500VAC. With an insulation resistance of 1000 MΩ and dielectric strength of 1000V for one minute, it is ideal for computer, peripheral, and industrial applications. Built for dependable performance, this connector ensures efficient signal transmission and robust physical protection in demanding environments.
MULTICOMP SPC15404 D-Sub Connector Specifications:
- Connector Type: D-Sub receptacle
- Number of Contacts: 25
- Shell Size: Standard, 25Pos
- Contact Termination: Crimp
- Shell Material: Steel, Tin-Plate
- Insulator Material: Glass Filled-Nylon, Black
- Current Rating: 5 Amps
- Insulation Resistance: 1000 MΩ minimum at 500V AC
- Voltage Rating: 500VAC
- Dielectric Strength: 1000V for one minute
- Temperature Range: -50°C to +105°C
- Panel Cutout: 12.55 mm (0.494 inches)
- Dimensions (mm): Length 47.04 (1.852 inches), Width 41.0 (1.614 inches), Panel Thickness 6.00 (0.236 inches)
Buy the Buy Multicomp D-Sub Receptacle Part Number SPC15404 Online
Order the Multicomp D-Sub Connector SPC15404 online today for reliable computer and industrial connections. Featuring a durable steel shell and glass-filled nylon insulator, it offers crimp termination for secure locking, 5A current capacity, and 500VAC voltage rating. With impressive insulation resistance of 1000 MΩ and dielectric strength of 1000V, it ensures optimal performance in demanding environments. Easy to install and built with quality materials, this connector is essential for professional electrical and electronic applications, ensuring long-lasting, dependable operation.
Buy Multicomp SPC15404 now and experience reliable secure connections with robust metal shell and high dielectric strength.
