MULTICOMP SPC15417 IDC Connector

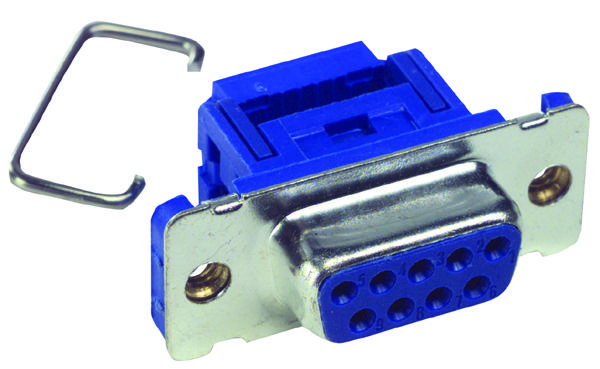

This IDC D-Sub receptacle features stamped contacts made of brass with gold plating for reliable connectivity. It is equipped with an insulator composed of blue-colored PBT reinforced with fiberglass, ensuring durability and stability. Suitable for professional electronic applications, it offers a secure and high-quality connection. Designed to support stranded AWG 26 and 28 wires, it has a current rating of 1 Amp and an operating temperature range from -55°C to 105°C. The metal shell is tin-plated steel, providing corrosion resistance and mechanical strength for industrial use.
MULTICOMP SPC15417 IDC Connector Specifications:
- Shell: Steel, Tin-Plated
- Contact Material: Brass, Gold-Plated on Contact Area, Tin-Plated on Wiring Area
- Insulator: PBT & Glass-Reinforced UL94V-0, Blue Color
- Current Rating: 1 Amp
- Operating Temperature: -55°C to 105°C
- Insulator Resistance: 1000 MegOhm at 500V DC
- Dielectric Withstanding Voltage: AC 500V Min. for One Minute
- Contact Resistance: 15 milliOhm Max.
- Wire Size: AWG 26 & 28 Stranded, 1.27mm Conductor Center, Flat Cable
- Overall Dimensions: Length varies; typical panel cutout approximately 6.00+0.25 mm.
Buy the SPC SPC15417 – Reliable IDC Connector for Industrial Applications
Enhance your electronic assembly with the SPC15417 IDC connector crafted from durable steel with a tin-plated finish and gold-plated brass contacts for superior connectivity. Its blue PBT insulator reinforced with fiberglass ensures stability and durability in harsh environments. Capable of supporting AWG 26 and 28 stranded wires with a maximum current of 1 Amp and operating across a temperature range of -55°C to 105°C. Ideal for professional, industrial, and electronic applications requiring robust and reliable connections. Purchase online now for fast delivery and expert support.
Buy SPC SPC15417 now and experience unmatched reliability and high-quality electronic connection solutions.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15417?
You can click on the BUY or RFQ button to purchase SPC15417 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15417?
You can download the SPC15417 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15417?
MULTICOMP
