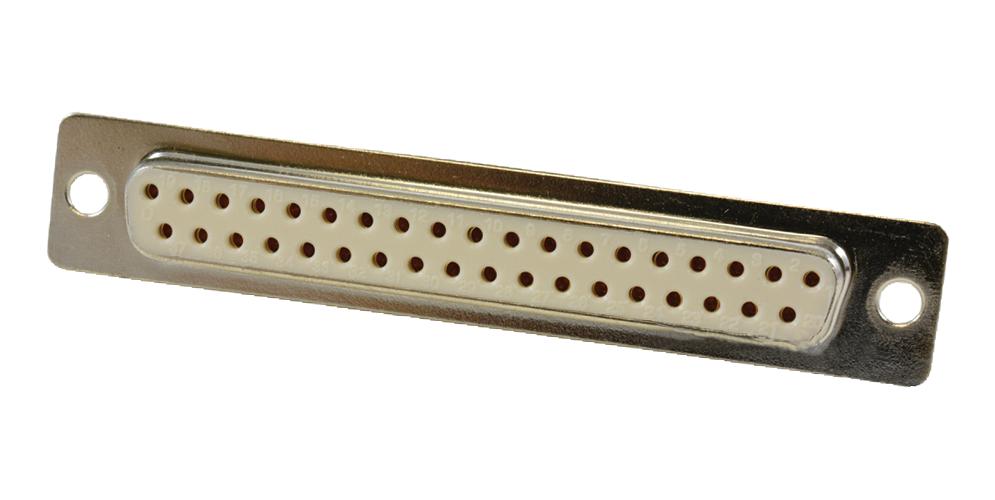

MULTICOMP SPC15420 37 Pin D-Sub Socket
The SPC15420 is a 37-pin D-Sub socket designed for reliable electrical connections in communication and networking equipment. It features gold-plated over nickel brass contacts for improved conductivity and corrosion resistance, housed in a durable PBT and glass fiber reinforced insulator. Rated for 5A current, it provides excellent dielectric strength and high insulation resistance of at least 1000 MΩ, operating safely between -50°C and +105°C. This standard solder type connector ensures secure connections for electronic systems requiring robust, high-performance female sockets.
MULTICOMP SPC15420 37 Pin D-Sub Socket Specifications:
- Shell: Steel, Tin-Plate
- Contact Material: Brass, gold-plated over Nickel
- Current Rating: 5 Amps
- Dielectric Strength: 1000V for one minute
- Insulator Resistance: 1000 MΩ minimum at 500V DC
- Operating Temperature: -50°C to +105°C
- Material: PBT with Glass Fiber Reinforced
- Contact Finish: Gold Plated
- Termination Type: Solder
- Number of Positions: 37
- Compatibility: Standard D-Sub socket
- RoHS Compliant
Buy the Buy Multicomp 37 Pin D-Sub Socket Part Number SPC15420 Online
Purchase the 37-pin D-Sub socket online to ensure secure, high-quality electronic connections for your communication or networking systems. Featuring gold-plated brass contacts and a robust PBT insulating body, this connector is rated for 5A and operates from -50°C to +105°C, making it ideal for demanding environments. Its solder termination provides a durable and stable connection, while the high insulation resistance ensures safety and performance. Order now for fast delivery and seamless integration into your electronic projects.
Buy Multicomp SPC15420 now and experience reliable connectivity with high current capacity in networking applications.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15420?
You can click on the BUY or RFQ button to purchase SPC15420 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15420?
You can download the SPC15420 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15420?
MULTICOMP
