MULTICOMP SPC19819SL EMI Shielded Phone Cable

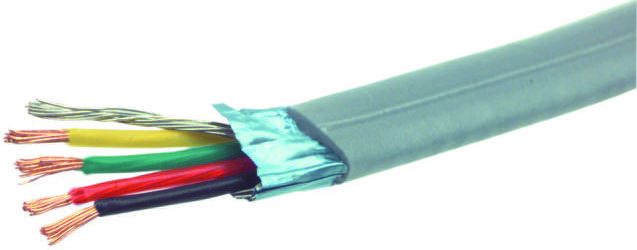

The SPC19819-SL is a six-conductor EMI shielded flat telephone cable featuring 24 AWG stranded bare copper conductors with polypropylene insulation. It is equipped with a silver satin flame-retardant PVC jacket and an overall aluminum/polyester shield, suitable for industrial applications. The cable offers a minimum conductor resistance of 93 ohms/km at 20°C, insulation resistance of 100 megaohms/km at 20°C, and a dielectric strength of 500VAC for one minute. It also undergoes a 2kV spark test in air. Rated for 60°C and 150V, it ensures reliable signal transmission and durability.
MULTICOMP SPC19819SL EMI Shielded Phone Cable Specifications:
- Conductor: 24 AWG stranded bare copper
- Insulation Material: Polypropylene
- Jacket: Flame-retardant PVC
- Shield: Aluminum/Polyester
- Conductor Resistance: Max 93 Ohms/KM at 20°C
- Insulation Resistance: Min 100 Megohms/KM at 20°C
- Dielectric Strength: 500 VAC for 1 minute
- Spark Test: 2KV in air
- Temperature Rating: 60°C
- Voltage Rating: 150V
- Cable Length: 100FT
- Conductor Count: 6 conductors
- Shield Type: Aluminum/polyester shield
- Color: Not specified
- RoHS Compliant: Yes
- RoHS Status: Compliant
Buy the SPC Series EMI Shielded Flat Telephone Cable: SPC19819SL
Purchase the SPC19819SL EMI shielded flat telephone cable online and enjoy fast delivery, competitive pricing, and high reliability. Designed with six 24 AWG stranded bare copper conductors, this cable features polypropylene insulation and a flame-retardant PVC jacket for enhanced safety. Its aluminum/polyester shield offers superior EMI protection, making it ideal for industrial communication systems. Rated for 60°C and 150V, it ensures optimal performance under demanding conditions. Order now to benefit from a trusted product that guarantees quality and durability in your projects.
Buy SPC Series EMI Shielded Flat Telephone Cable SPC19819SL now and experience reliable, durable, and high-quality signal transmission for industrial needs.
Frequently Asked Questions
Where can I buy MULTICOMP SPC19819SL?
You can click on the BUY or RFQ button to purchase SPC19819SL from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC19819SL?
You can download the SPC19819SL datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC19819SL?
MULTICOMP
